Best laser level australia
At Laserman, we understand that it can be difficult to find a laser level that covers all of your project needs. Whether you’re working on a big building operation or simply hanging a picture frame, it’s important that you don’t settle for a laser level that’s anything less than perfect.
Finding a suitable laser level depends on a number of factors, from the type of work you’re doing to your budget. We’ve taken the guess work out of selecting from hundreds of laser level options by putting together a list of our favourite laser levels.
Let’s start off with some of our top picks for multiline laser levels that are most appropriate for interior applications.
Laserman’s Top Picks for Multiline Laser Levels
|Geo-6x XP||PLS 3x360G||Leica L6G-1||Geo 6XR||Imex LX3DG|
|Accuracy||2mm@10mm||2mm@10mm||0.2 mm / m||2mm@10mm||2mm@10mm|
|Drop Test||1 meter||1 meter||1 meter||1 meter||1 meter|
w/ Liner Detector
|Magnets that Stick?||Yes||Yes||Yes||Yes||Yes|
Operating Time /
30Hrs (1 Beam)
9Hrs (3 Beam)
|14h/ Li-Ion||5h / Li-Ion||20h / Li-Ion|

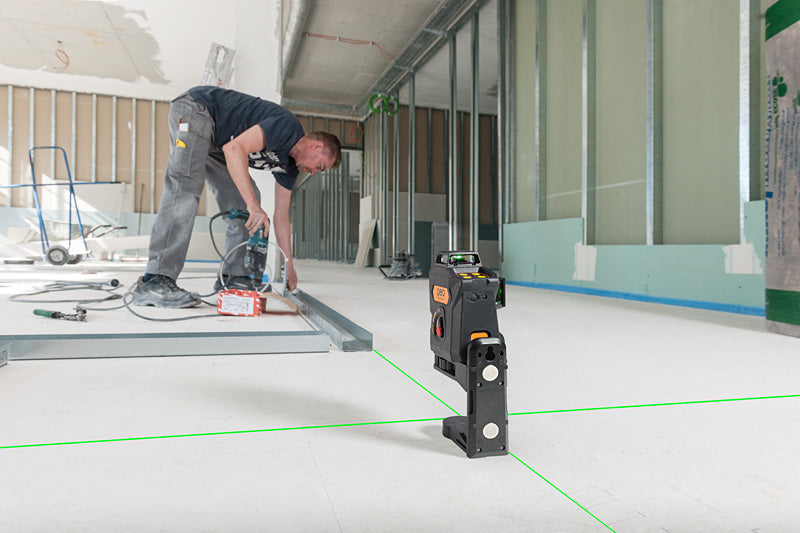

Starting off at the top of our list is the geo-FENNEL Geo6X SP, which is by far the first recommendation we’ll make if you’re opting to buy a multiline laser level. The Geo6X is one of the most versatile multiline laser levels on the market and is ideal for setting up heights, horizontal and vertical planes and right angles.
The Geo6X is able to form six laser crosses with extremely visible green beam technology, and has an additional horizontal beam capable of leveling a complete 360 degrees. With an excellent working radius of up to 60 metres using the recommended laser detector (the geo-FENNEL FR 55, FR 75 or FR 77-MM) there’s no need to worry about whether or not this laser can provide accurate measurements on a large job site.
The Geo6X is a must-have tool in any general contractors’ tool belt able to plumb, level and square. We also suggest electricians and plumbers invest in this tool.
Li-Ion battery charger
Battery case for alkaline batteries
Soft case with foam insert
Coming in at a close second is the PLS 3X360G Kit. This laser was developed out of necessity by professional contractors with over 50 years of experience in the construction industry.
The 3X360G comes with a heap of great features that make it the optimal laser level for commercial and residential interior and exterior layout projects. For starters, it has an accuracy of 2mm @ 10m, making it the best in its class. The 3X360G also comes with an out-of-level warning to prevent the use of any incorrect measurements during a job.
Like the Geo6X, the 3X360G has three separate 360 degree fan angles making it an all-in-one plumb, level and squaring tool. The only potential drawback of this laser is that its operating time is reduced to approximately nine hours when all three beams are in operation. However, the 3X360G comes with rechargeable battery pack.
- RBP5 (Li-Ion batteries)
- Power supply
- Magnetic L-Bracket
- Green Target
- Canvas Pouch
- Blow Mold Case
360° green laser line projection for multi-directional alignment – perfect for large and bright environments. The laser’s vertical lines are easily adjusted once the plumb point (cross-section of two vertical lines), which is located outside the device, is set.
- Horizontal and two vertical 360° green laser lines
- Best visibility due to green Ultra-power laser diodes
- Self-leveling over wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 35 metres
- Li-Ion power for up to 11 h
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters versatile usage
A comprehensive solution for installation, refurbishment and maintenance
- 3x 360° highly visible green laser lines all perpendicular to eachother
- Projecting right angles everywhere at the floor for straight anddiagonal laying of tiles
- Installation and verification of correct floor height
- Checking level, flatness and parallelism of walls and floors.
- 3 x 360° green laser lines - visible up to 40 m
- 6 mm minimum distance of the laser line to the wall
- 8 mm minimum distance of the laser line to the fl oor
- Height adjustable platform with a range from 25 to 85 mm
- for precise height control when setting out fl oor coverings
- 20 mm fi xed height adaptor with 5/8“ thread
- Height adjustable wall-mount with swivel-mount support rail
- Optimise fl oor tile layout with free-hanging tripod mount
- Monitor and correct fl oor levels using the height measurement pins
- Pulse-function to extend working range with receiver (optional)
5. IMEX LX3DG
Imex LX3DG is the ultimate in interior laser levelling.
Laserman’s Top Picks for Rotary Laser Levels
A rotary laser is a must-have tool in any construction worker or contractors kit, especially for larger construction projects like leveling job sites, excavation and property development.
|Model||geo-FENNEL FL 105H||PLS H2 Z||Spectra LL300N||geo-FENNEL FL 115||Topcon RLH5A|
|Horizontal only||Horizontal only||Horizontal/Vertical||Horizontal only||Horizontal only|
|Working range (with detector)||600m||300m||500m||1200m||400m|
|IP rating||IP65 (Inddor/outdoor protection)||IP67 (Inddor/outdoor protection)||IP66 (Inddor/outdoor protection)||IP66 (Inddor/outdoor protection)||IP66 (Inddor/outdoor protection)|
|Auto leveling range +/-||± 5°||± 5°||± 5°||± 5°||± 5°|
|Arc accuracy +/-||10 seconds||10 seconds||10 seconds||10 seconds||10 seconds|
Coming in at the top of our list is the geo-Fennel FL 105H with FR 45 receiver and clamp. This fantastic laser is packed with a heap of useful features that make it one of the most reliable and easy-to-operate rotary laser levels around.
Not only the FL 105H able to self level +/- 5 degrees, but it comes with a “Slope Matching” feature which allows the user to check grade on all slope work. In addition to the “Slope Matching” feature, the FL 105H also has an out-of-level alarm (like a few of the multiline laser levels mentioned above) which helps to further prevent incorrect grade and slope measurements being used.
With a tough IP rating of 66, you can’t go wrong with purchasing the geo-FENNEL FL 105H which can withstand strenuous job site conditions including torrential rainfall.
- Receiver FR 45
- Receiver Clamp
- Li-Ion rechargeable battery with charger
- Battery case for alkaline batteries
- Operator Manual
2. PLS H2 Z
At Laserman, we can’t get enough of PLS products and that goes for the PLS H2 Z red beam rotary laser level. It’s the optimal laser for interior and exterior layout projects like laying concrete slabs and we highly recommend it to landscapers, plumbers and electricians in particular.
The H2 Z is beautifully designed; it’s sleek and stylish with an easy-to-use one button operation, so there’s no way you’ll get confused by any overcomplicated extra functions. The H2 Z also has a tougher IP rating then the Topcon RL-H5A, at 67, so you can be rest assured that the H2 can handle some knocks and bumps on the job site.
One drawback on this laser would be that it doesn’t have the greatest range, but if you’re working on a residential site, the 300m range is sure to do the job.
- PLS BP10 Alkaline battery tray
- 4 x D batteries
- Safety sheet and Quick Reference Guide
Spectra Precision LL300 with HL450 receiver.
This rotary laser is designed as a one-person leveling system, so you can increase efficiency and productivity at work. Like the geo-FENNEL FL115H, the LL300 is optimal for longer range measurements with a working range of 500m and accuracy of 2.2mm @ 30m.
The LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable NiMH battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work while maintaining accuracy in the cross-slope
- HL450 Receiver
- C45 Clamp
- Alkaline Batteries
- 5289-0025 Carry Case
- User Manual
Once again we have another geo-FENNEL product making it’s way onto our list, but for good reason.
The FL115H with FR 77-MM receiver is the most accurate rotary laser level in its class at +0.5mm @ 30m, and has a RPM of 800 which makes it perfect for usage with machine control solutions. Its high RPM also gives the FL115H an enormous working range of up to 1200m (with its recommended receiver) so it’s ideal for working on long distance job sites.
Like the Topcon RL-H5A, the FL115H comes with an out-of-level alarm and automatically shuts off to avoid incorrect measurements. However the FL115H has an operating time of approximately 26 hours, so ensure you bring along the rechargeable batteries to your job site.
If you’re doing any sort of long distance work on a commercial site that requires extreme accuracy, we can’t recommend the FL115H enough.
- FR 77-MM Receiver
- Li-Ion rechargeable batteries with charger
- Battery case for alkaline batteries
Our last on the list is the Topcon RL-H5A with LS-80L receiver. This fantastic laser is packed with a heap of useful features that make it one of the most reliable and easy-to-operate rotary laser levels around.
Not only the RL-H5A able to self level +/- 5 degrees, but it comes with a “Slope Matching” feature which allows the user to check grade on all slope work. In addition to the “Slope Matching” feature, the RL-H5A also has an out-of-level alarm (like a few of the multiline laser levels mentioned above) which helps to further prevent incorrect grade and slope measurements being used.
With a tough IP rating of 66, you can’t go wrong with purchasing the Topcon RL-H5A which can withstand strenuous job site conditions including torrential rainfall.
- LS-80L Receiver
- Receiver Clamp
- 4 x D-Cell Alkaline batteries
- Carry case
- Operator Manual
