Feature:
●360° laser reception.
●Length of receiving window 25cm.
●Strong magnets or Screw clamp for
connection to the machine.
●Detects laser plane of multiple brand rotating laser levels.
●Waterproof and dustproof metal housing (IP66)

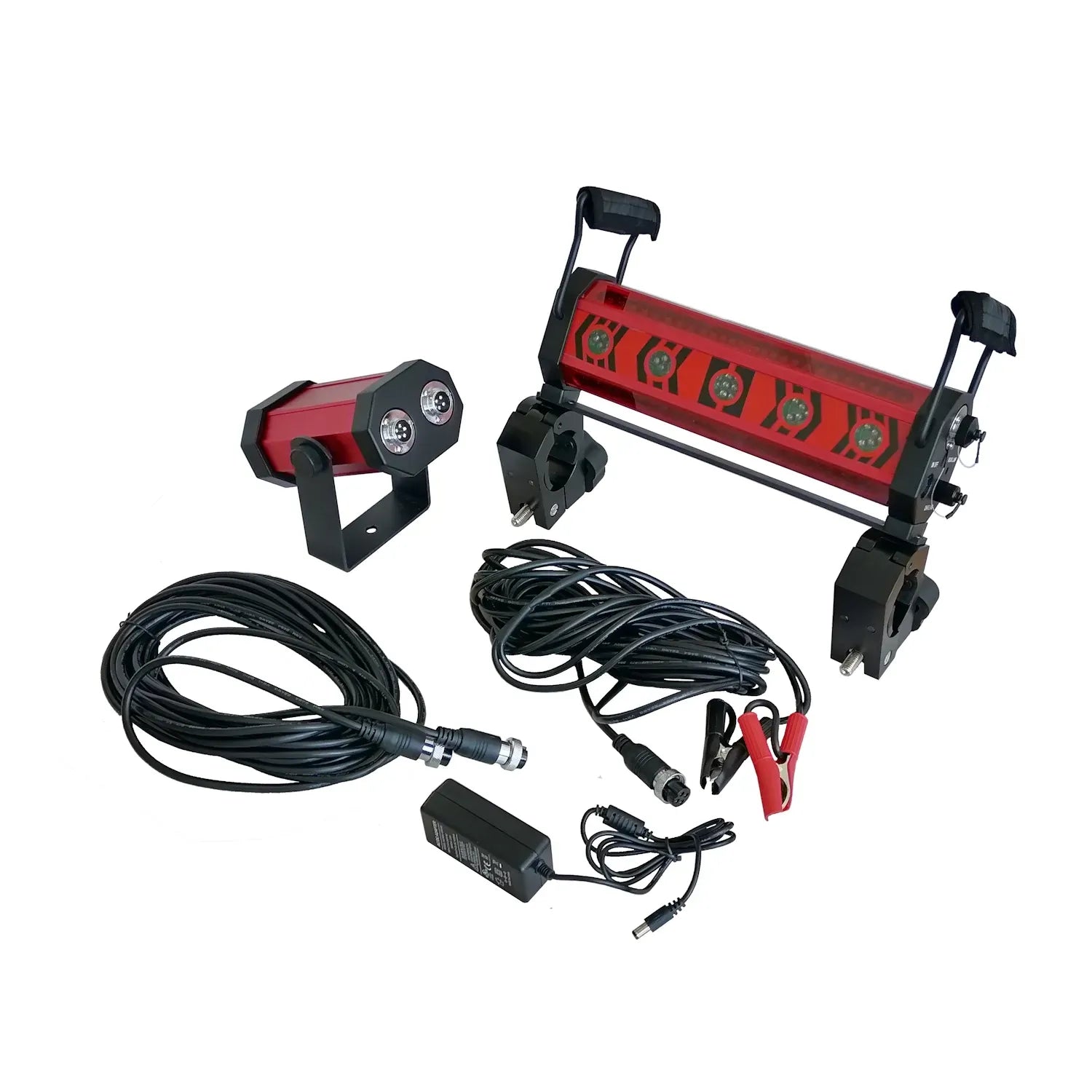

Kit inclusions ;
●Machine control receiver TR360 with built-in rechargeable
battery pack.
●Cab Remote Display with connection cable
●Charger.
●12V/24V battery cable.

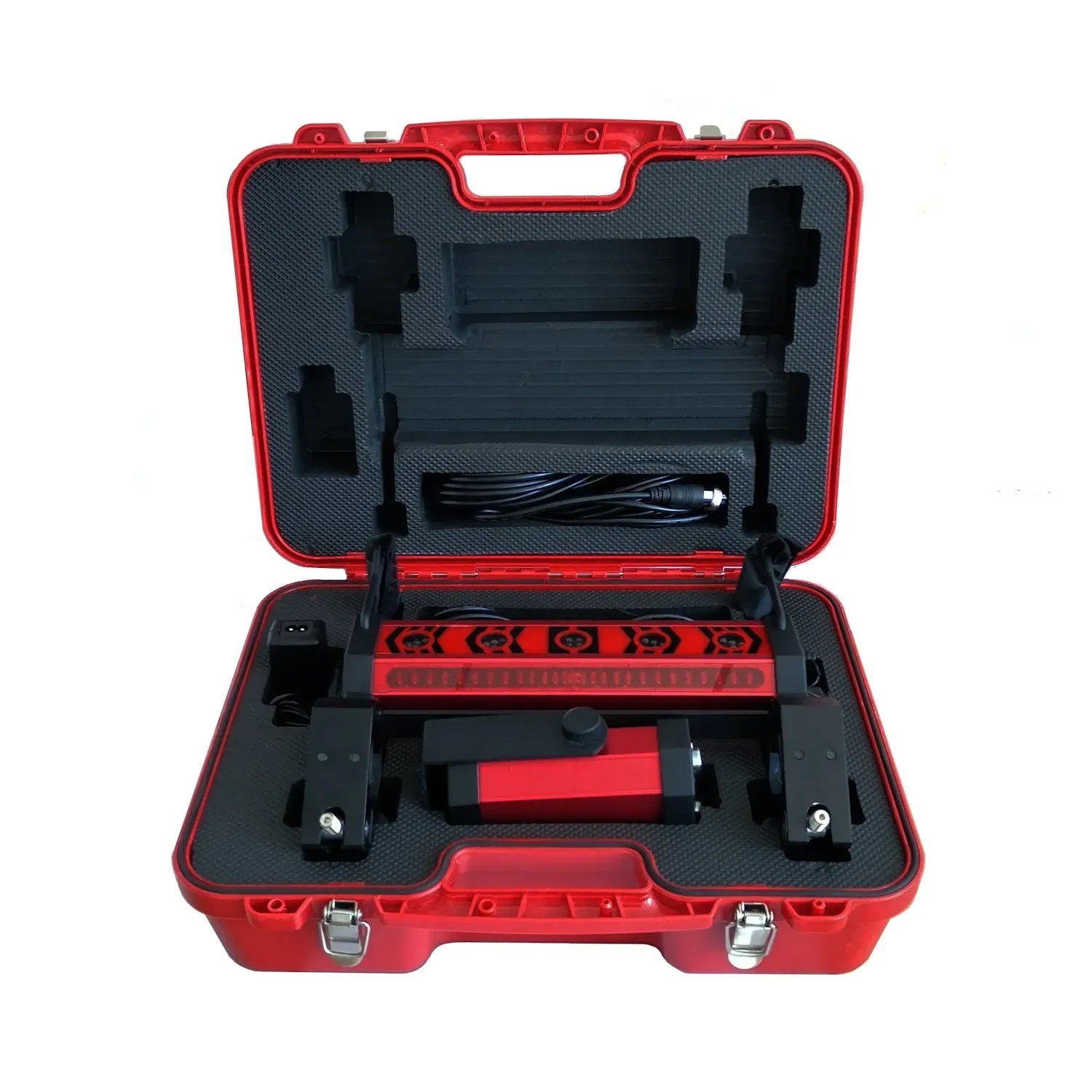

●Carrying Case.
Connection to the excavator-The receiver is equipped with strong magnetic base or screw clamp base for attachment.
Switch on–Press 1.ON/OFF key, LED lights flash one by one. Pressing ON/OFF key again, it can be switched unit between fine and coarse detecting mode.
The default detecting mode is fine mode.
Fine/coarse detection- Change with ON/OFF key
FINE= the 2 inner LED’S “A” are flashing 3 times
COARSE= the 2 outer LED’S “B” are flashing 3 times
Switch off-Long press ON/OFF key to turn off the power.
please note:
●Main receiver will be turned off automatically 15 minutes without
receipt of laser plane.
●When the working voltage of the battery pack drops to 6.4V,all LED
lights will be flashing, and then Power will be switched off
automatically. When this occurs, the main receiver must be charged.
LED-Display-
●2 upper red LED lights flashing =move Main receiver upwards
●Middle green LED lights flashing =Main receiver on level
●2 lower red LED lights flashing = move Main receiver downwards
Cab Remote Display
Connect the cab remote display and Main receiver with the
connecting cable 14. to sockets 8&9. Fix the display in the cabin of
the machine.
| Accuracy fine: | ± 2mm to ±10mm |
| Accuracy coarse: | ± 5mm to ± 23mm |
| Rechargeable battery pack: | 7.2V NiMh/2500mAh |
| Operating time: | 40 hours |
| Charging time: | 15 hours |
| Working temperature: | -20°C~+50°C |
| Size: | 376x180x60mm |
| Weight: | 3kgs |
| Brochures | |
|---|---|
| TUF-TR360C - Brochure | |
