PRODUCT OVERVIEW

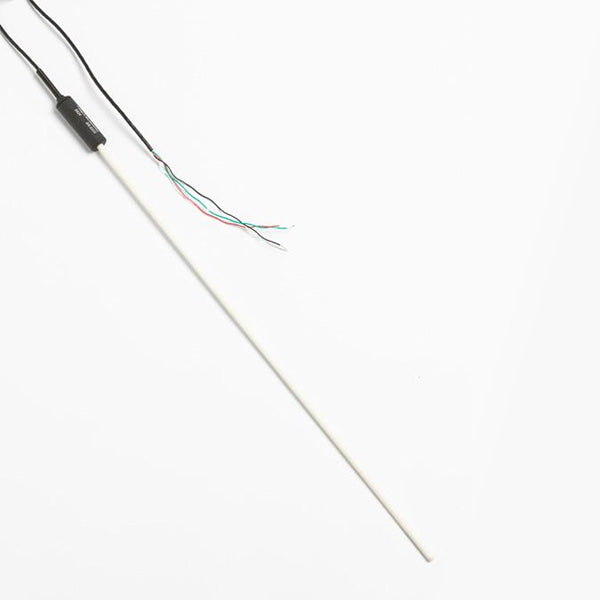

The 5624 is ideal for use as a reference thermometer in high-temperature furnaces, the 5624 can reach a temperature of 1000°C with long-term drift at 0°C of 10 mK and accuracy (including short-term stability and calibration uncertainty over the full range) of 55 mK! Due to Fluke Calibration's proprietary sensor design, this PRT has short-term stability of 5 mK, and an immersion requirement of less than 153 mm (6") at 700°C.
The 5624 is assembled in an alumina sheath that is 508 mm (20") long and 6.35 mm (0.25") in diameter. Several termination configurations can be selected to match different thermometer readouts. Each 5624 comes with a NIST-traceable, NVLAP-accredited fixed-point calibration from 0°C to 962°C. That’s a fixed-point calibration! The 5624 also comes in a protective carrying case.
Specifications |
|
| Range | 0 °C to 1000 °C |
| Calibration Uncertainty |
± 0.004 °C at 0 °C ± 0.020 °C at 962 °C |
| Long-term Drift (Rtpw) (k=2) |
<0.01 °C at 0 °C/100 hours at 1000 °C <0.06 °C at 0 °C/1000 hours at 1000 °C |
| Calibrated Accuracy† (k=2) |
± 0.006 °C at 0 °C ± 0.031 °C at 660 °C ± 0.041 °C at 961 °C |
| Short-term Stability | ± 0.005 °C |
| Immersion | <153 mm (6 in) at 700 °C |
| Rtpw | 10 ohm (± 0.1 ohm) |
| Hysteresis | <0.005 °C from 0 °C to 1000 °C |
| Thermocycling | <0.01 °C, 10 cycles from 0 to 1000 °C |
| Current | 1 mA |
| Size | 6.35 mm (0.25 in) O.D. |
| Length | 508 mm (20 in) |
| Sheath Material | Alumina |
| Calibration | Included 1913-6 fixed-point calibration |
| Includes calibration and 100 hr drift | |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
PRODUCT OVERVIEW
The 5624 is ideal for use as a reference thermometer in high-temperature furnaces, the 5624 can reach a temperature of 1000°C with long-term drift at 0°C of 10 mK and accuracy (including short-term stability and calibration uncertainty over the full range) of 55 mK! Due to Fluke Calibration's proprietary sensor design, this PRT has short-term stability of 5 mK, and an immersion requirement of less than 153 mm (6") at 700°C.
The 5624 is assembled in an alumina sheath that is 508 mm (20") long and 6.35 mm (0.25") in diameter. Several termination configurations can be selected to match different thermometer readouts. Each 5624 comes with a NIST-traceable, NVLAP-accredited fixed-point calibration from 0°C to 962°C. That’s a fixed-point calibration! The 5624 also comes in a protective carrying case.
Specifications |
|
| Range | 0 °C to 1000 °C |
| Calibration Uncertainty |
± 0.004 °C at 0 °C ± 0.020 °C at 962 °C |
| Long-term Drift (Rtpw) (k=2) |
<0.01 °C at 0 °C/100 hours at 1000 °C <0.06 °C at 0 °C/1000 hours at 1000 °C |
| Calibrated Accuracy† (k=2) |
± 0.006 °C at 0 °C ± 0.031 °C at 660 °C ± 0.041 °C at 961 °C |
| Short-term Stability | ± 0.005 °C |
| Immersion | <153 mm (6 in) at 700 °C |
| Rtpw | 10 ohm (± 0.1 ohm) |
| Hysteresis | <0.005 °C from 0 °C to 1000 °C |
| Thermocycling | <0.01 °C, 10 cycles from 0 to 1000 °C |
| Current | 1 mA |
| Size | 6.35 mm (0.25 in) O.D. |
| Length | 508 mm (20 in) |
| Sheath Material | Alumina |
| Calibration | Included 1913-6 fixed-point calibration |
| Includes calibration and 100 hr drift | |
