Major Tech MT1887 1500V DC IP67 True RMS Bluetooth Multimeter

SKU: MT1887
$234.00

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Checkout Secure
Need more info? Call us +61 8 9335 1718
  • CAT IV 600V and CAT III 1000V
  • IP67 Dust & waterproof with O-ring sealed casing
  • 40 000 count LCD display with 41 Segment Bargraph
  • Measures DC voltage up to 1500V
  • Measures AC voltage up to 1000V
  • Temperature measurement from -50⁰C to 1000⁰C
  • AC & DC Micro Amps up to 10A
  • 4-20mA process loop measurements with % reading
  • Capacitance to 40mF
  • Frequency to 100MHz
  • Duty Cycle
  • Relative mode
  • Automatic non-contact voltage detector above 110V AC, LCD turns red
  • Min, Max and Data Hold
  • Auto Power Off

The MT1887 is a True RMS professional multimeter having improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Specifications

Function Range Resolution Accuracy
DC Voltage 400mV – 1500V 1V ±(0.1% + 6 Digits)
AC Voltage 4V – 1000V 0.1V ±(1.0% + 8 Digits)
DC Current 400uA – 10A 0.001A ±(1.0% + 3 Digits)
AC Current 400uA – 10A 0.01A ±(1.5% + 8 Digits)
Resistance 400Ω – 40MΩ 0.01MΩ ±(0.5% + 8 Digits)
Capacitance 40nF – 40mF 0.01mF ±(2.5% + 10 Digits)
Temperature -50°C – 1000°C 1°C ±(1.0% + 2.5°C Digits)
4-20mA% 25 to 15% 0.01% ±50 digits
Frequency (Electronic) 40Hz – 100MHz 0.01MHz ±(0.1% + 1 Digits)
Frequency (Electrical) 40 ~ 400Hz 0.01Hz ±(0.5% reading)
Duty Cycle 5% – 95% 0.01% ±(1.2% + 2 Digits)
AC Response True RMS
Digital Display 40 000 Count
Bargraph 41 Segmented
Continuity Test Audible signal if the resistance is approx. 50Ω or less
Diode Test Test current 0.9mA typical, open circuit voltage 3.2V DC typical
Peak >1ms
Non-Contact Voltage Detection above 110V AC, LCD display turns red
Bluetooth Bluetooth 4.0 Technology
Data Hold Yes
Back Light Yes
Enclosure IP67 Dust & Waterproof Double Moulded
Battery 9V
Dimensions 187 x 81 x 50mm
Weight 342g



Safety Ratings



Includes:

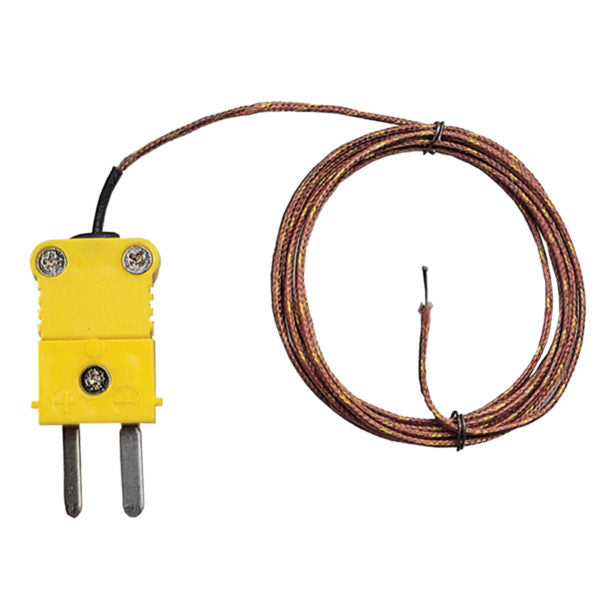

  • Type-K Temperature Probe

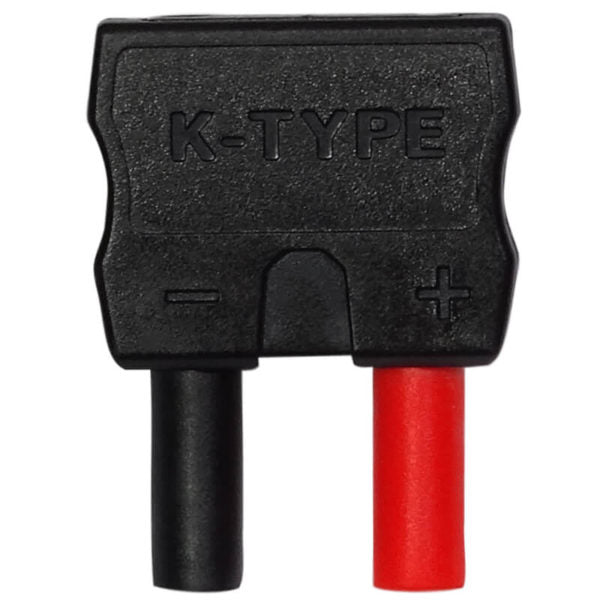

  • Type-K Adaptor
  • Test Leads
  • 9V Battery
  • Instruction Manual

Downloads

MT1887 Technical Datasheet MT1887 Instruction Manual
