Fluke 22800007 TS22 Test Set With Ground Start Cord (Item no. 2326688)

Fluke Networks 22800007 TS22 Test Set With Ground Start Cord

SKU: 2326688

Need more info? Call us +61 8 6017 3000

Price Match International Orders Tax Removed

(Item no. 2326688)

NOTE: Fluke Network lead times can vary due to component and supply issues. Please contact us directly for an ETA.

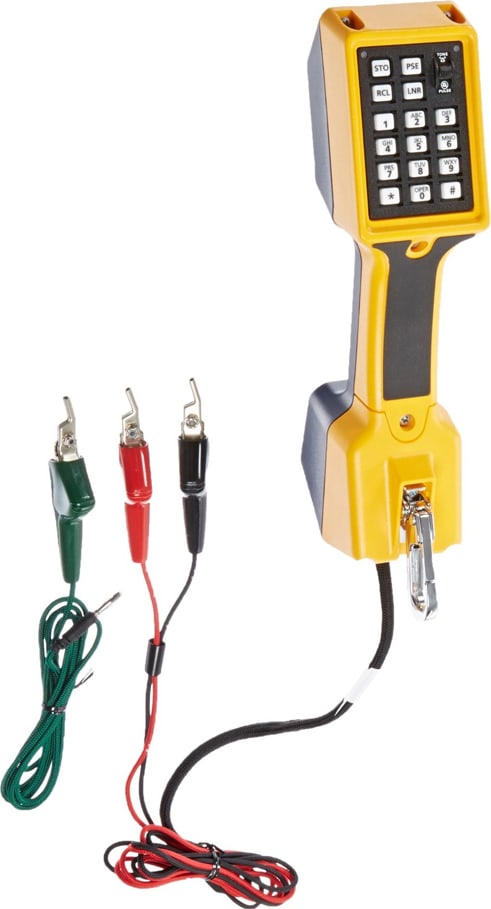

22800007 TS22 Test Set with Ground Start Cord
TS®22 Test Set has an amplified speaker for hands-free monitoring
DropSafe® reliability passes 20 foot drop test
RainSafe® protection in severe weather conditions
Stores nine 18-digit numbers in repertory dialer (speed dialing)
Tone (DTMF) and pulse operation
Last number redial
DTMF signal levels compensated for loop length
DropSafe® unit up to 20 feet
Audible electronic ringer
Locking mute switch
3-year redial storage time
Over voltage and over current protection
PBX pause button
Field replaceable belt clip

The TS22 Test Set’s unique built-in one-way amplified speaker provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18 digit telephone numbers in repertory dialer (speed dialing) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.

The TS22A Test Set is equipped with all the features of the TS22 Test Set with the addition of a built in two-way speakerphone. The two-way speakerphone enables the user to operate hands free. The effect of ambient noise can be eliminated with the Mute switch, allowing the technician to monitor a line uninterrupted while in Talk mode. A standard among field professionals, the TS22A model is a reliable and durable test set that is ready for any job.

* The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.

* Note also that your speakerphone will no longer work when your 9-volt battery is low or dead. You should replace the 9-volt battery whenever it is low.

Telephone Butt-In Test Sets Comparison Chart
	TS®54 TDR	TS®52 PRO	TS®22A	TS®22	TS®25D	TS®30 / TS®120*	TS®19
TDR for distance to Open, Shorts	✔
Built-in toner	✔
Display—backlit LCD and glow-in-the-the dark keypad	✔	✔			LCD only
Extended range high-impedance DataSafe operation in monitor mode	✔	✔			✔
High-impedance DataSafe™ operation in monitor mode	✔	✔	✔		✔	✔	✔
Data lockout protection	✔	✔			✔
DSL/POTS filtering technology	✔	✔			✔
Low/high voltage indication	✔	✔			✔
Low current (mA) indication	✔	✔			✔
Over voltage and current protection	✔	✔	✔	✔	✔	✔
Waterproof—exceeds American Military Spec. MIL-STD-810E	✔	✔
RainSafe™—safe in severe weather conditions	✔	✔	✔	✔		✔
DropSafe™—passes 20 foot (6 meter) drop test onto concrete	✔	✔	✔	✔		✔
Stores nine 18-digit numbers in repertory dialer (speed dialing)	✔	✔	✔	✔	✔
*TS120 for outside North America only. 67/33 break/make ratio.

Manufacturer Specs

Electrical
Loop Limit	2 kΩ maximum at 48 VDC (nominal 20 mA minimum loop current)
DC Resistance(Talk Mode)	300 Ω typical
Monitor Impedance
TS22	5 kΩ nominal at 1 kHz
TS22A	120 kΩ nominal at 1 kHz
Rotary Dial Output
Pulsing Rate	10 pps ±5 pps
Percent Break	61 % ± 2 %
Interdigit Interval	1000 ms typical
Leakage During Break	>50 kΩ
DTMF Output
Tone	±1% maximum
Frequency Error Tone Level	-3 dBm combined (typical)
High versus Low Tone Difference	4 dB maximum
Monitor Amplifier	9 V battery; provides 25 hours
Power Source	continuous use, typical
Speaker Levels for TS22	Low, medium, high and off
Automatic Power Shut Off	After 5 min. of no audio signal
Speakerphone Levels TS22A	Low, medium, high and off
Power Source	Shared line and battery power
Physical
Physical Measurement	10.25 in x 2.69 in x 3.38 in (26 cm x 6.83 cm x 8.57 cm)
Weight
TS22	21 ounces (.595 kg)
TS22A	22 ounces (.624 kg) typical
Environmental
Temperature
Operating	29 °F to 140 °F (-34 °C to 60 °C)
Storage	-40 °F to 150 °F (-40°C to 66 °C)
Altitude	To 10,000 feet (3,000 meters)
Relative Humidity	5 % to 95 %
Certifications and Compliance	Conformite Europe enne. Conforms to relevant European Union directives.
