Integrates with next-generation TruPulse i-Series devices (TruPulse 200i and 360i) and BLE-compatible legacy TruPulse products (TruPulse 200, 360, and 360R)
Elevate Your 3D Mapping Toolkit to New Levels of Confidence and Accuracy
Description:

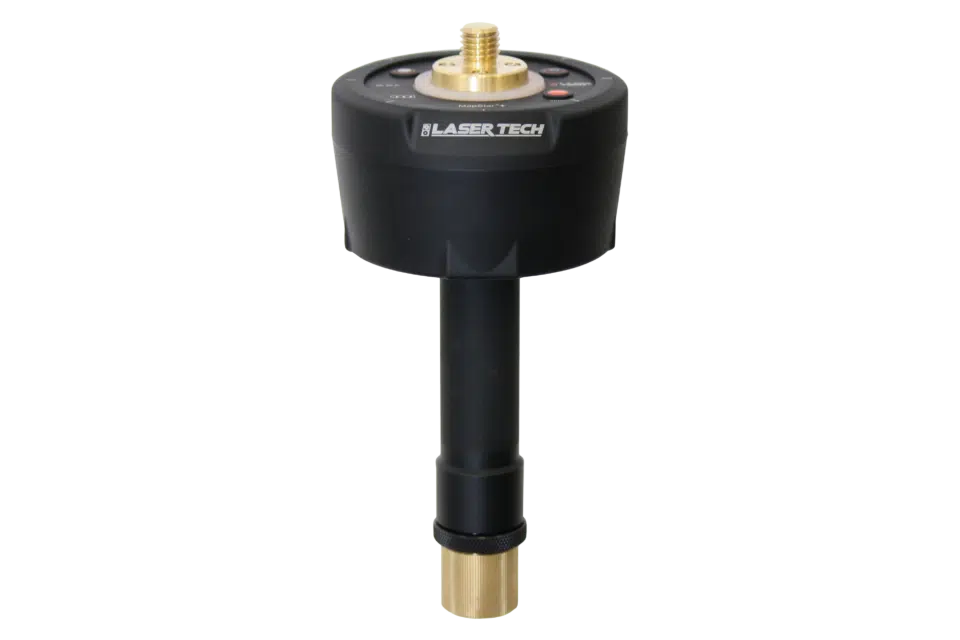

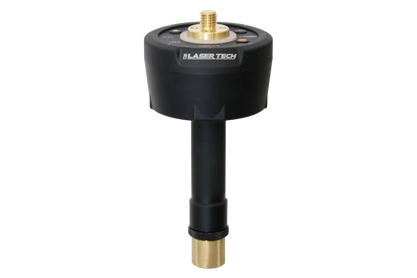

The MapStar® TruAngle II® encoder precisely calculates a turned horizontal angle that can be referenced to any desired point or direction.
Overview
Next Generation Angle Encoder for Interference-Free 3D Measurements
Our next-generation MapStar TruAngle II introduces a new intuitive user interface to complement our achievements in advanced performance and stronger durability, for an all-new and feedback-driven user experience. Precisely calculate a turned horizontal angle that can be referenced to any desired point or direction. This survey-pole-mounted angle encoder works with TruPulse® products to provide high-accuracy X, Y, and Z coordinates for a complete 3D mapping system immune to local magnetic interference.
Primary Applications
- GIS / GPS Mapping: GPS Laser Offsets (capture remote offsets with the Distance-Angle method)
- Mining: Stockpile Volumes, outdoor/indoor geological mapping site inspection, material estimation
- Utilities: Transmission and Distribution, measure the span, sag, and tension of conductor wires
- Utilities: Water/Gas/Pipeline, asset and facility mapping, verify property and ROW dimensions
- Forestry: Engineering / Surveys

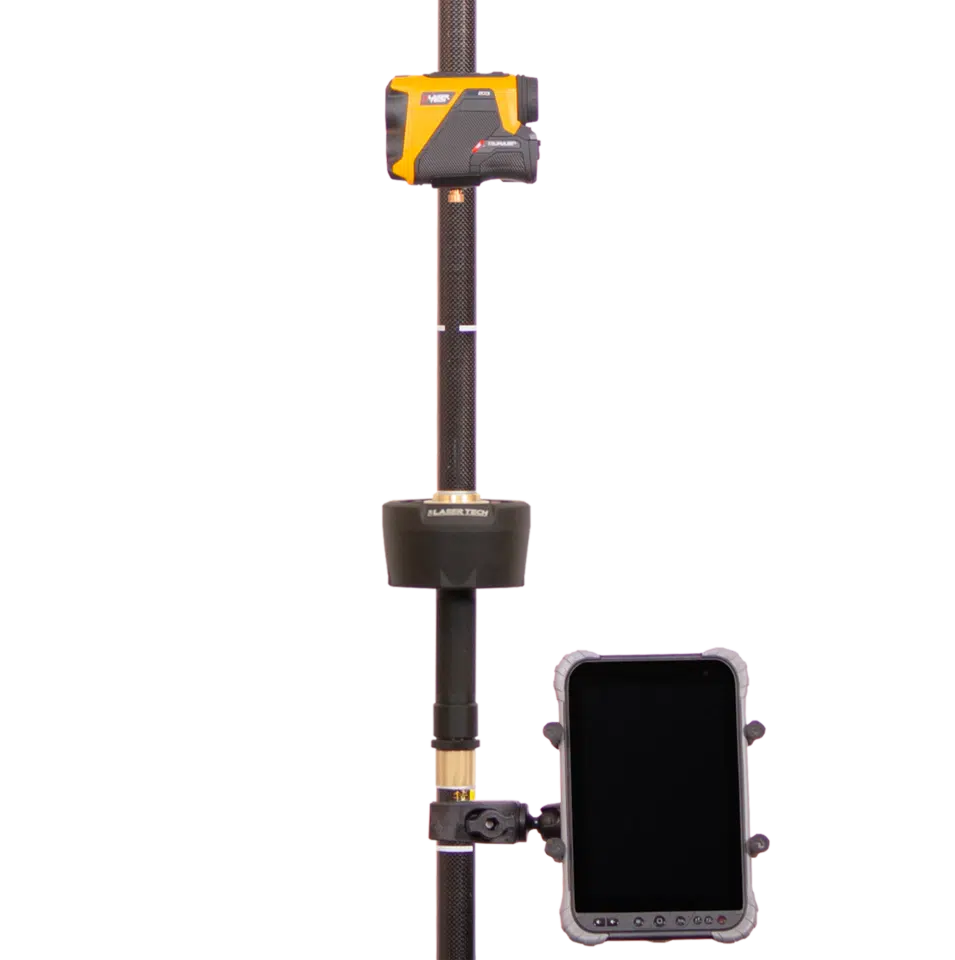

- Add your preferred GNSS receiver to map assets with a TruPulse rangefinder. Introduce the Distance-Angle workflow to your toolkit and experience a new world of offset positioning possibilities; map assets within a clear line of sight without occupying their physical location, avoid dangerous terrain and private property, reduce traverse time, and overcome signal issues.
- Use the TruAngle II BLE communication capabilities to output your data onto preferred mobile devices and data collection solutions.
Key Features

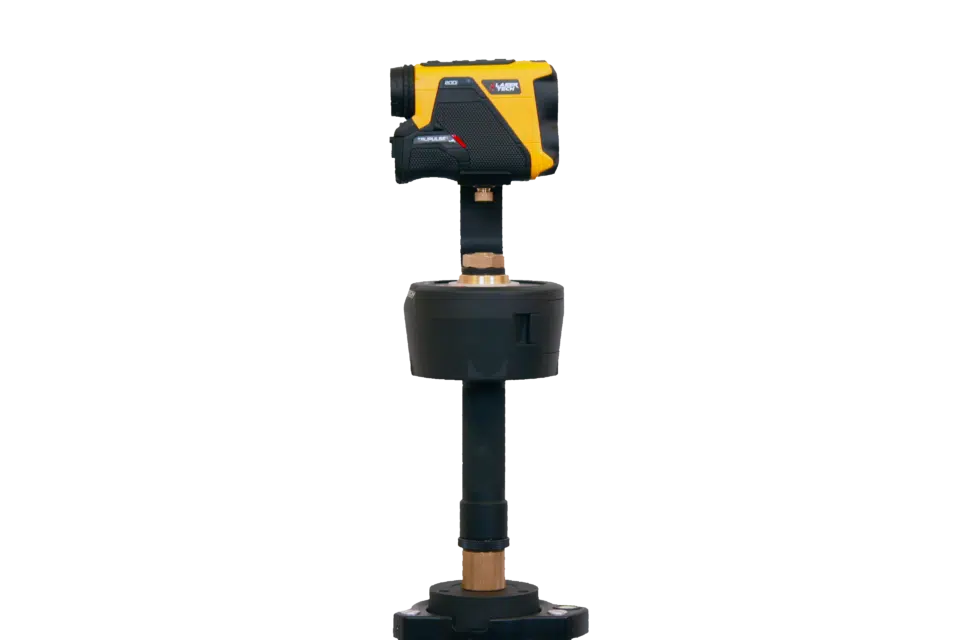

Integrates with TruPulse Lasers

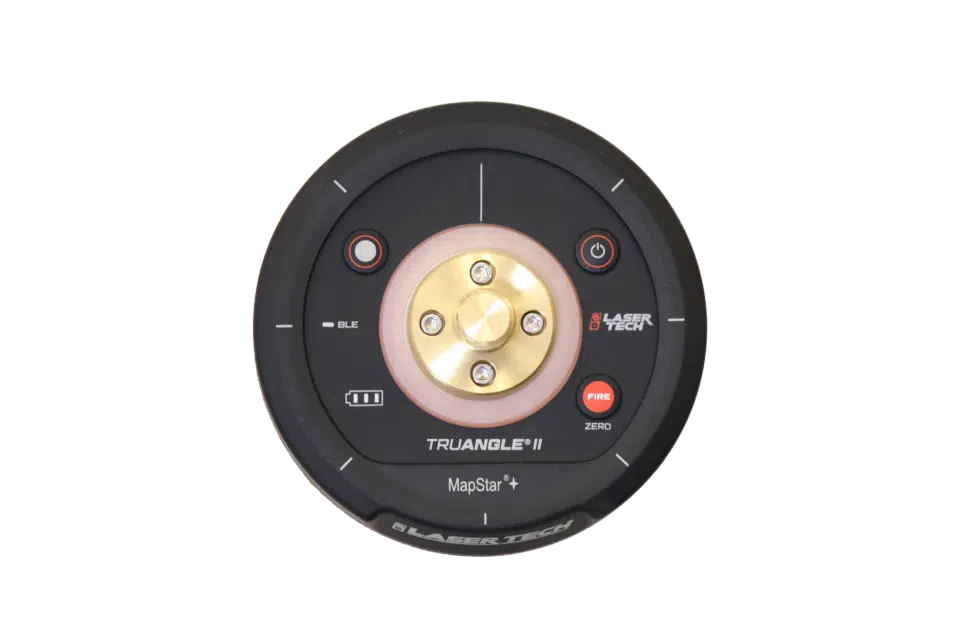

User Interface
3-button intuitive interface decreases field time and aggravation
Measurement
Provides professionals with the needed horizontal accuracy unaffected by magnetic interfaces

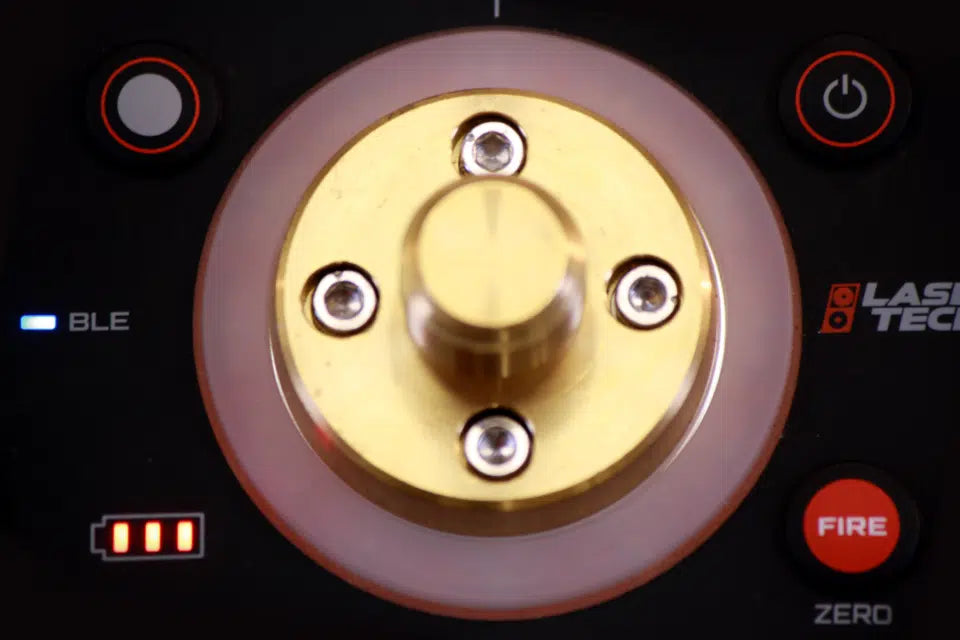

Level Aid

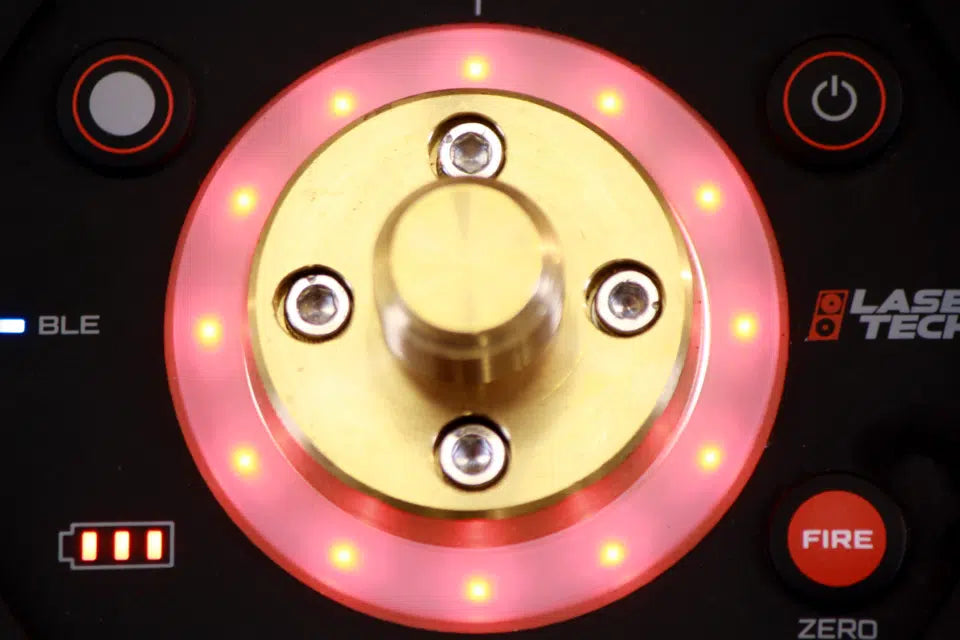

Level Aid Alert, to obtain the highest degree of positional accuracy. Ultra bright LEDs to indicate when the unit is level or over the level limit. This is to maintain accuracy with horizontal angle measurements. Customizable degree
Ergonomics
Mounts easily on different set-ups:
- Integrate in a split GPS Pole
- Survey tripod mounting options

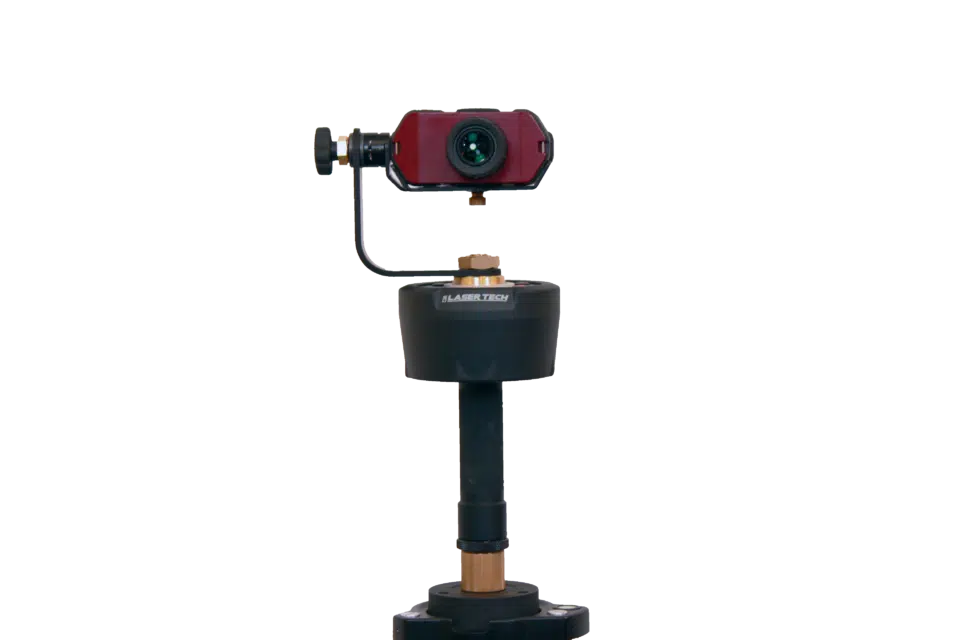

Modular design
Allows you to pivot the laser rangefinder a full tilt +/- 90 degrees while maintaining the rotary encoder level.
Rugged

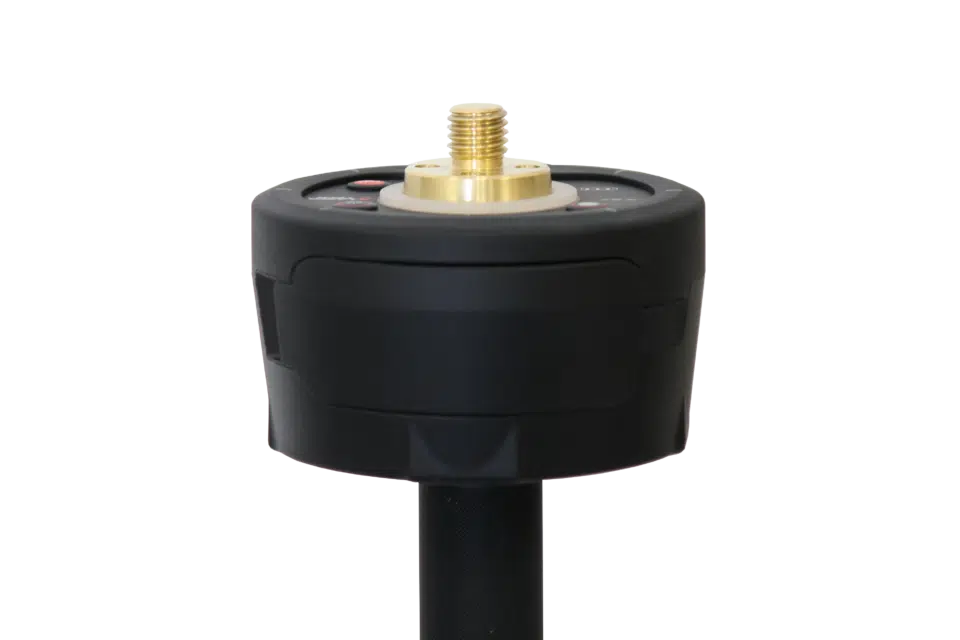

Withstands harsh conditions with a rugged, weatherproof IP56 rating. Holds up to everyday uses with an aluminum machined housing with a rubber bumper for added protection.

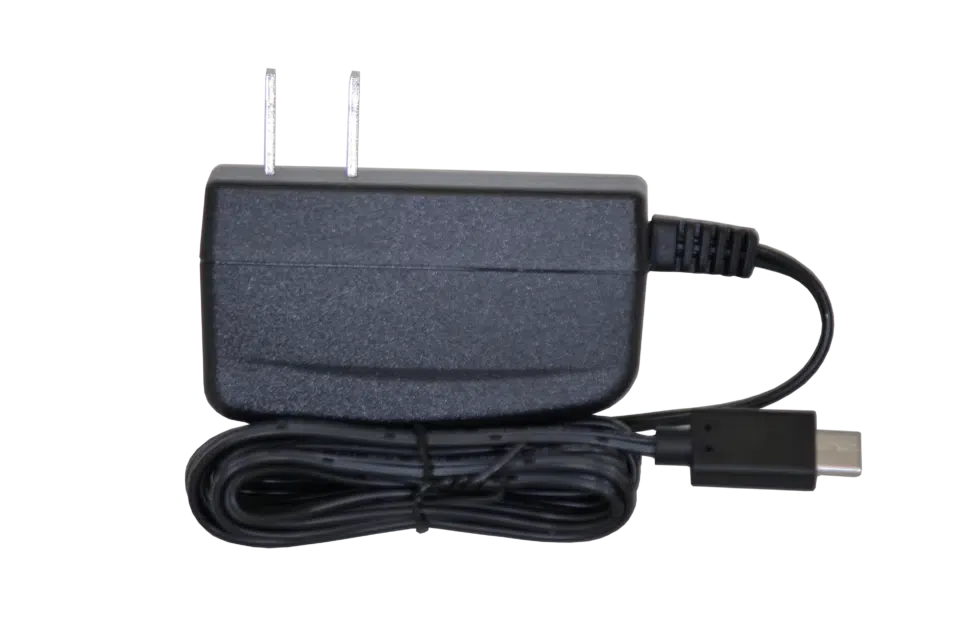

Power

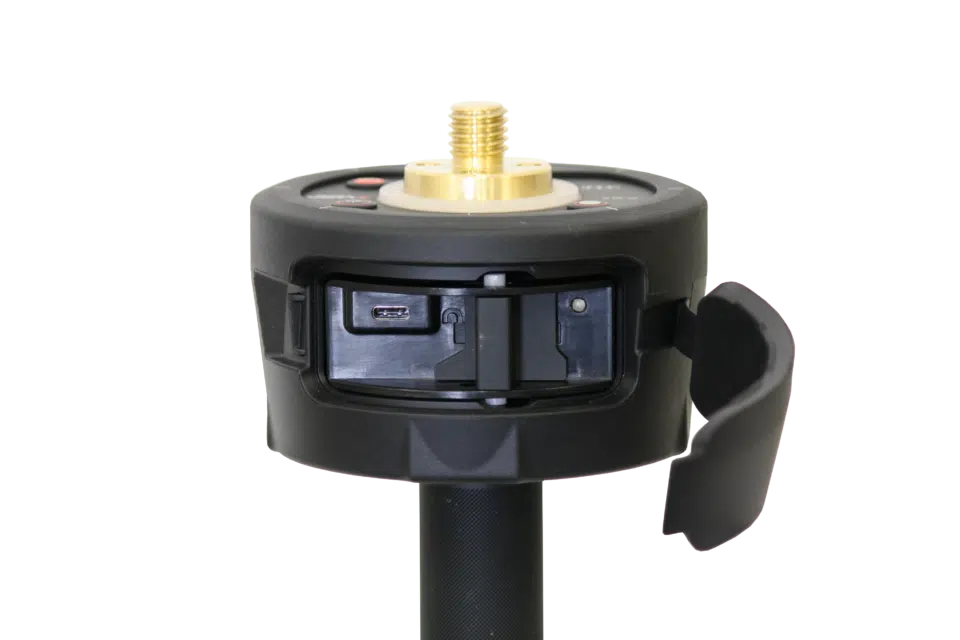

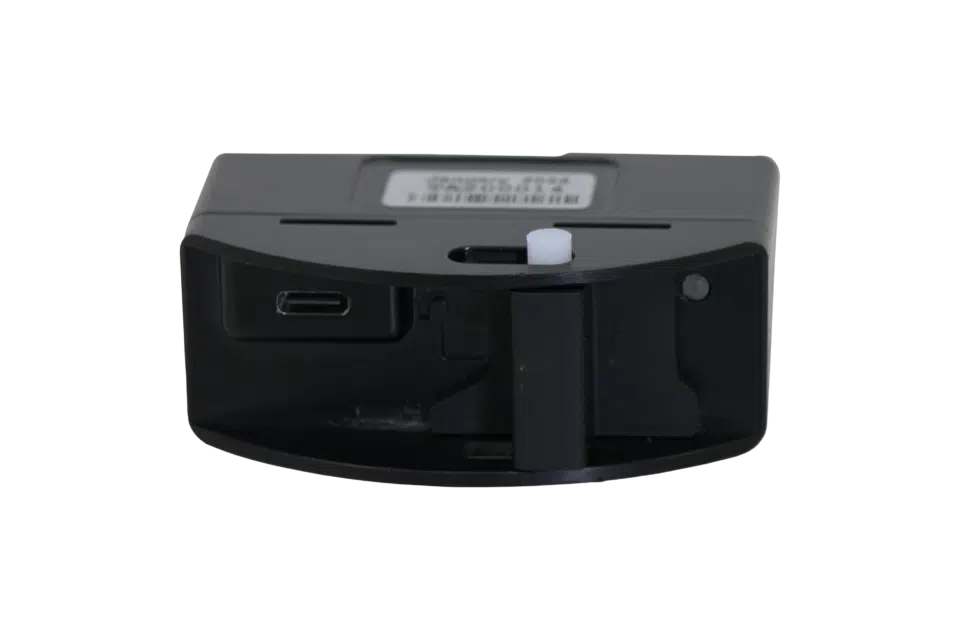

Battery: Li-ion Rechargeable, Removeable/Removable ; 12hrs Continuous Use Able to recharge while installed (unit still functionable) or out of the unit.
Communicates with multiple platforms
BLE module is compatible with a multitude of devices (iOS and Android™).
Specifications
Horizontal Angle Accuracy
± 0.1°
Horizontal Angle Range
0° to 359.99°
Horizontal Angle Resolution
0.01°
Tilt Accuracy
Maintains ±0.3º RMS accuracy up to 10º tilt
*Nominal Calibration Angle Tolerance is 95% level of confidence under normal test conditions at a temperature of 23º C and Barometric Pressure of 101kPa
Wireless Connectivity
BLE: Android & iOS compatible.
Temperature Range:
-20° to +50° C (-4° to +122° F)
Battery Pack
Li-ion Rechargeable, Replaceable/Removable; 12hrs Continuous Use
Environmental
Weather proof IP56 rating.
Mount

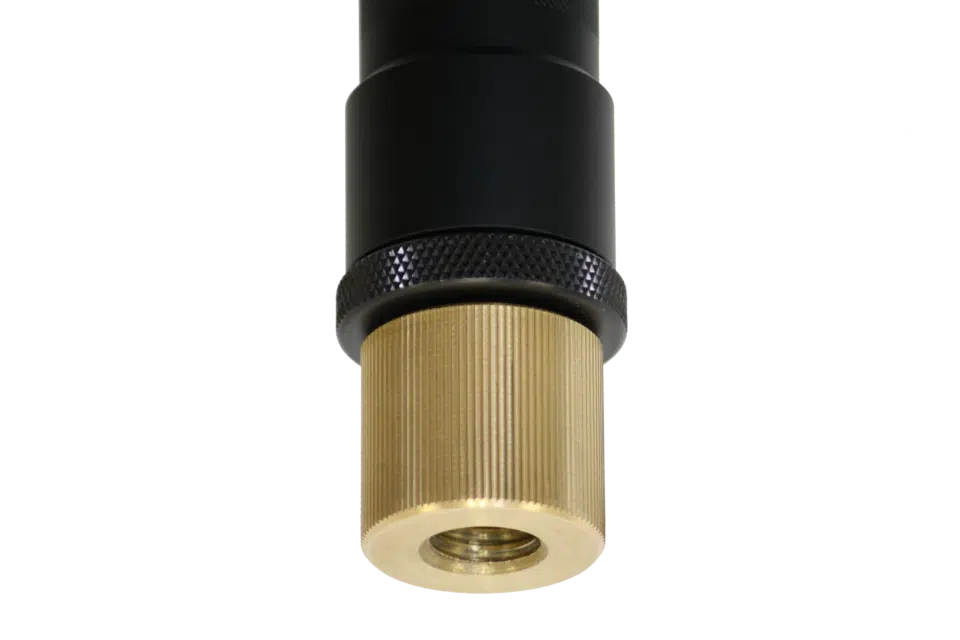

5/8″ threads: Top Male, Bottom Female
Leveling
Level Aid utilizing Ultra bright LEDs (bubble level) to indicate when the unit is level or over the level limit.
Size
Total Height 240.3 mm (9.46 in) Mounted Height 225.0 mm (8.86 in) Width / Diameter 114.3 mm (4.5)
Weight
1,270 g (2.8 lbs)
