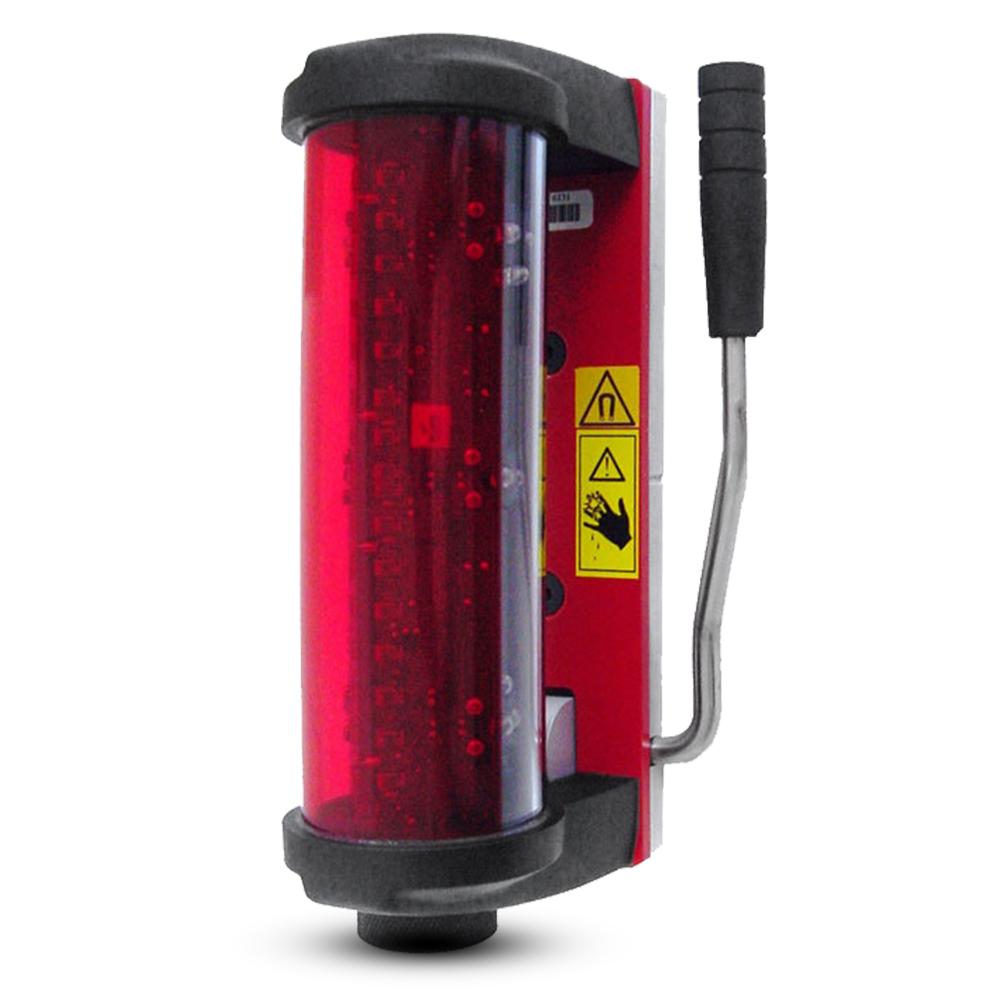

Leica LMR-240 Machine Control Receiver with Case

SKU: LG773569
$686.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Product Overview

The Leica LMR-240 Machine Control Receiver offers the convenience of a machine-mounted display at an economical price. By providing accurate grade control and information for all visual machine control applications and having a 240-degree detection of any rotating laser, the LMR240 is the ideal device for use with backhoes and mini-excavators.

This Leica machine control receiver features LED indicators that show the position of cutting edge in relation to the laser reference beam. The memory storage feature allows storing of the last signal received and arrows indicate which way to move the bucket to pick up the laser beam again. It also features three setting choices, 650 feet operating radius, and ¼-inch fine and 1.2-inch coarse accuracy.

The LMR-240 includes a quick release magnet mount allows quick mounting and easy movement from machine to machine. This mount has an extra-strong attachment to firmly hold the Leica receiver while being used. The Leica LMR-240 has a very rugged build which is also waterproof and is rated IP67 for protection. With three AA batteries, it can operate up to 130 hours, and has an automatic shutoff feature.

Features

  • With Quick Release Magnet Mount
  • Operating radius 650 feet (200 m)
  • Capture window 5-3/4" (15 cm)
  • Accuracy: fine 1/4" (6 mm); coarse 1.2" (30 mm)
  • Memory stores the last signal received
  • 240° detection with any rotating laser
  • Accurate grade control
  • Extra-strong attachment
  • Ideal for use with backhoes and mini-excavators
  • Provides accurate grade information for all visual machine control
  • LED indicators for cutting edge position in relation to the laser reference beam
  • LED arrows indicate which way to move the bucket to pick up the laser beam again
  • Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine
  • Magnetic mount allows quick mounting and easy movement from machine to machine
  • Powered by 3 AA batteries
  • 130 hours of battery life
  • Automatic shutoff
  • Rugged construction
  • Waterproof IP67

Specifications

  • Power: AA
  • Operating Radius: 200m
  • Reception: 240º
  • Capture Window: 15cm
  • Accuracy Fine: 6mm
  • Coarse: 30mm
  • Waterproof: IP67
  • Battery Life: 130 Hours
  • Dimensions: 220mm x 120mm x 100mm
  • Weight: 1.9kg
