Leica Rod Eye 120G Classic Laser Receiver & Bracket

SKU: LG844745
$273.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

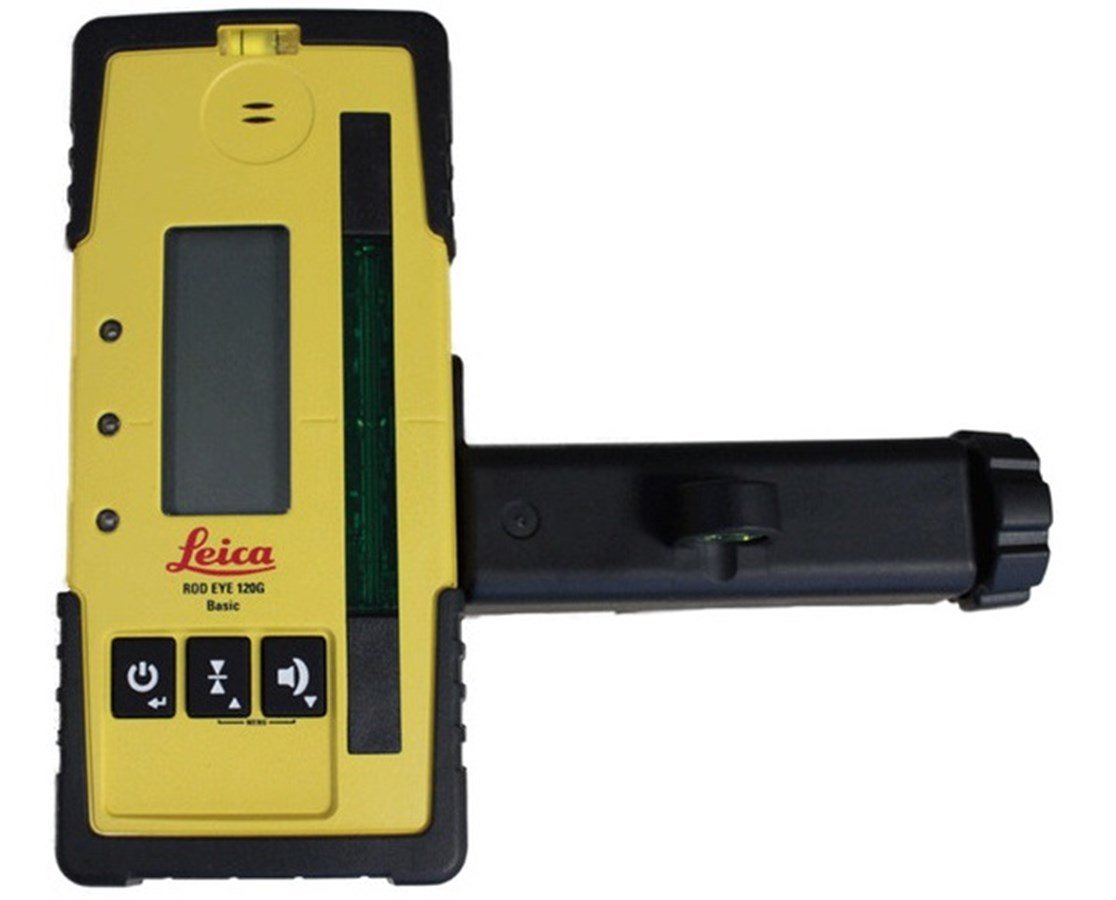

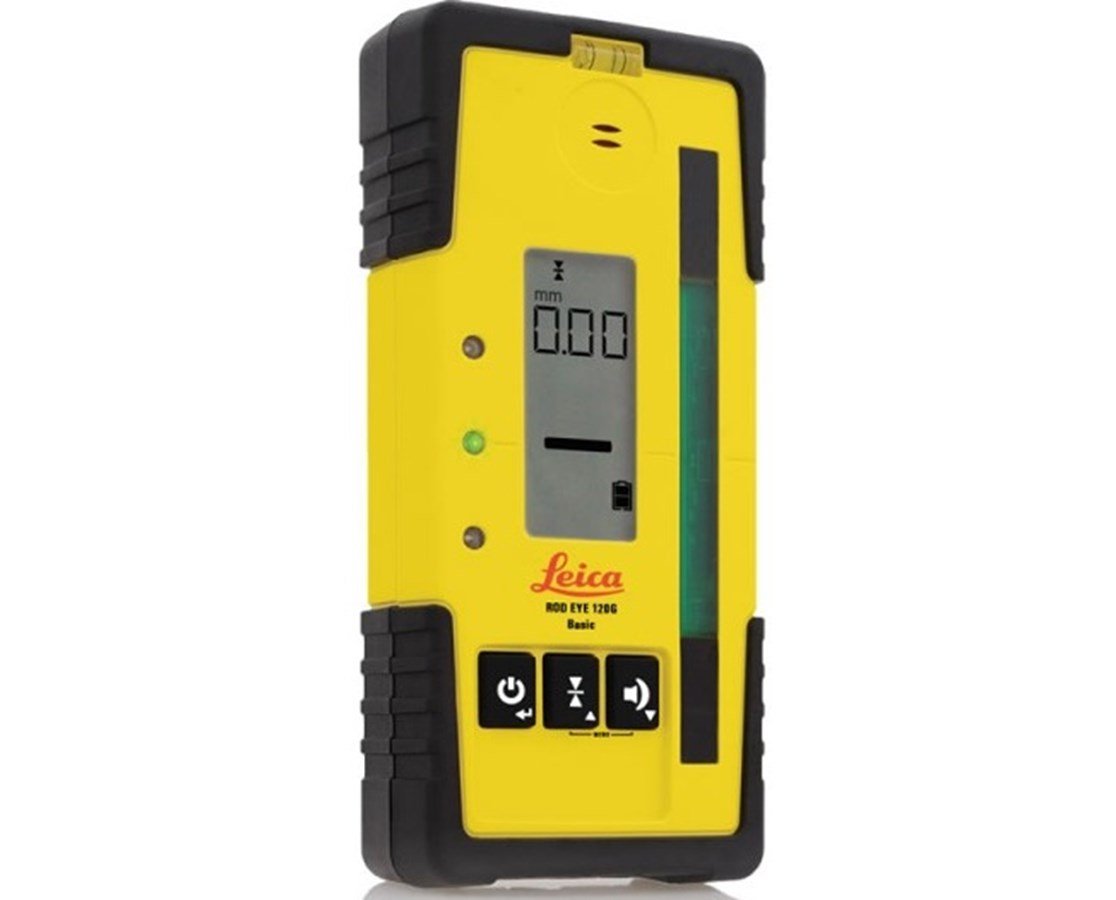

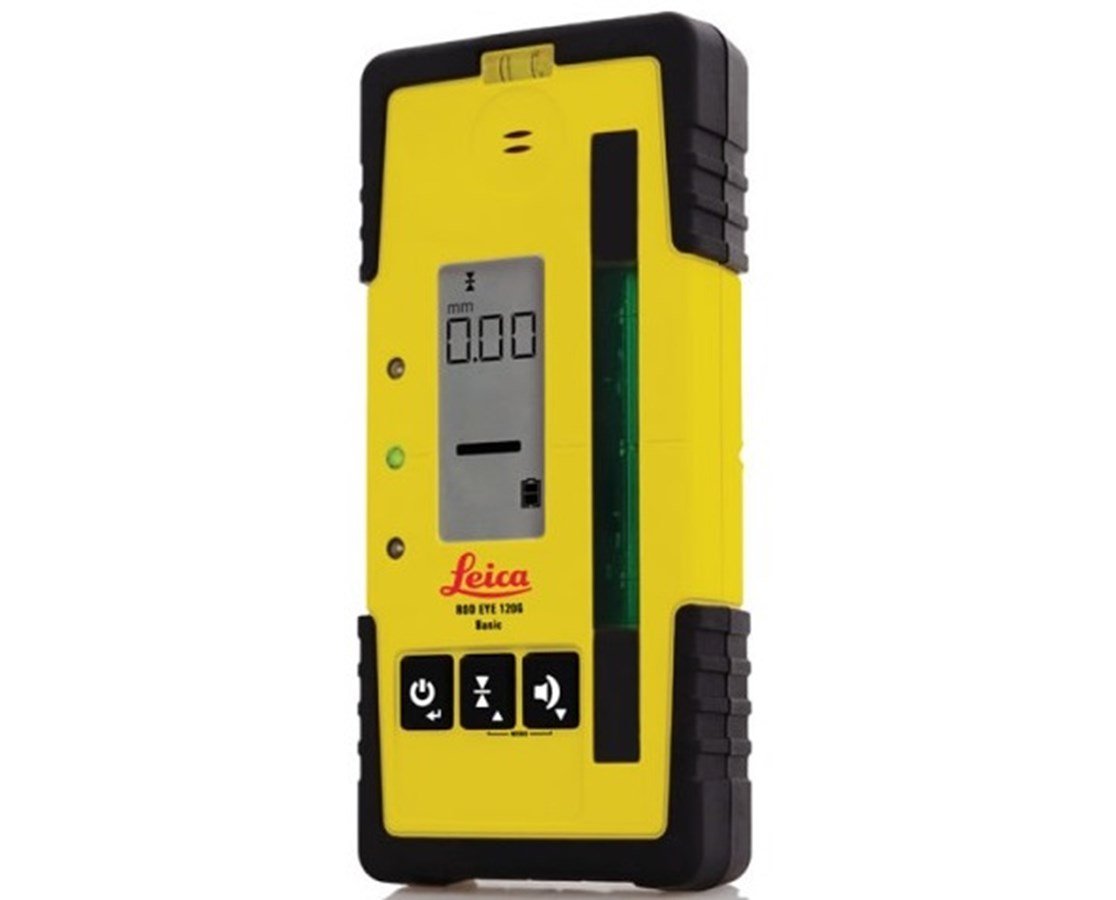

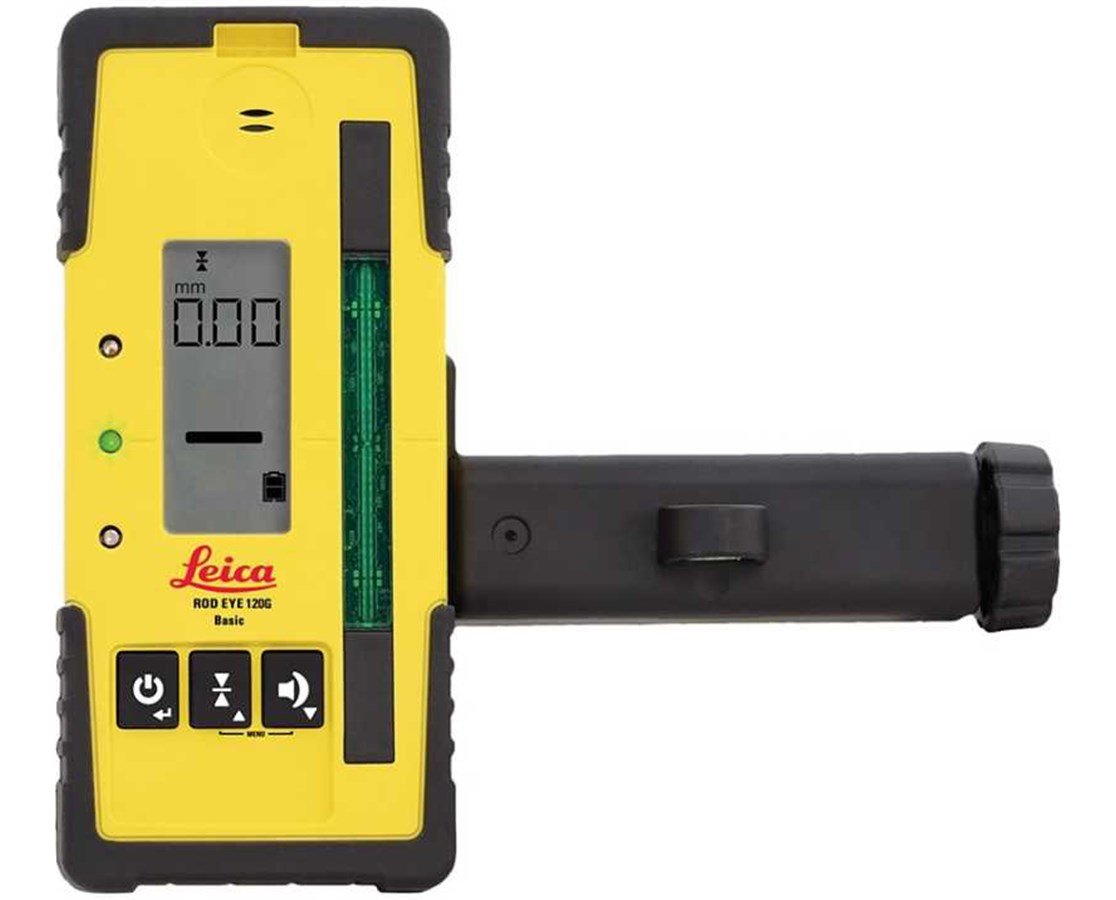

Leica Rod Eye 120G Classic Laser Receiver & Bracket

Product Overview

The Leica Rod Eye 120G Green Laser Receiver with Bracket is drafted to capture the green laser beam of the Rugby 640G rotating laser Convenient and fast, it features a digital readout that measures offset from Rugby 640G beam position. This laser receiver has a built-in seven-centimeter detection window that allows easy detection of the beam up to a 200-meter radius. Also, it features a working diameter of up to 900 meters.

For an easy read, it includes two large LCD graphic displays on the front and back of the receiver. The rod eye receiver comes with three auto indication volume levels - loud, soft and off. Plus, it has three bandwidth accuracy indication levels - fine, medium and coarse.

Being powered by two AA batteries, the Leica Rod Eye 120 laser receiver operates up to 50 hours. It has an IP67 environmental rating which gives this instrument dust and water protection.



Features

  • Capture green laser beam of the Rugby 640G rotating laser
  • Digital readout
  • Built-in 2.8-inch window (7 cm)
  • Up to 656-foot radius beam detection (200 meters)
  • Up to 2,952-foot working diameter (900 meters)
  • 2 large LCD graphic displays
  • 3 auto indication volume levels
  • 3 bandwidth accuracy indication levels
  • 2 AA batteries
  • Operates up to 50 hours
  • Dustproof and waterproof (IP67)





Includes

  • Leica Rod Eye 120G Green Laser Receiver with Bracket
  • 2 x AA batteries
  • Bracket





Specifications

General
Dimensions 1.378"D x 3.1496"W x 5.906"H (35mm x 80mm x 150mm)
Protection Class IP67
Bracket/Clamp Included
Accuracy
Fine ± 1 mm
Medium ± 2 mm
Coarse ± 3 mm
Battery/Power
Power Source AA batteries
Battery Life up to 50 hours
Low Battery Indicator yes
Temperature
Operating –20°C to +50°C –
Features
Channels 9
Display Dual LCD
Automatic Shutoff After 10 minutes
LED Indicators green
Anti-Strobe Technology yes
Last Beam Memory yes
Beam Finding yes

Need help choosing a Receiver? Read our Receiver Buying Guide or Contact us

Download Brochure

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
