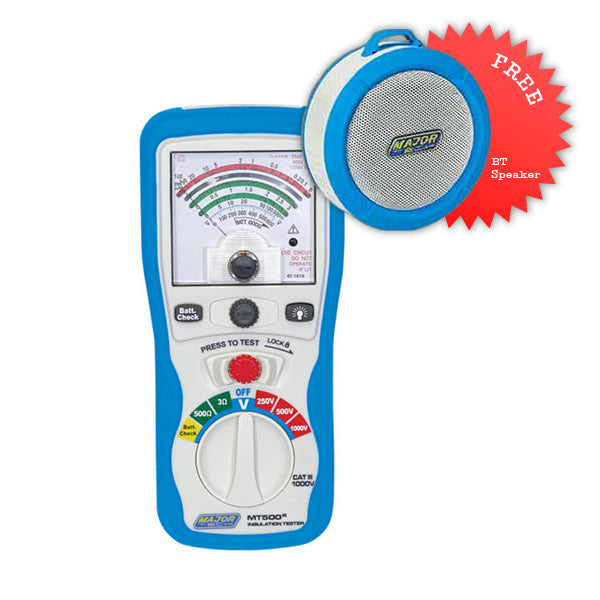

Major Tech MT500 1000V Analogue Insulation Tester

SKU: MT500
$166.00

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Checkout Secure
Need more info? Call us +61 8 9335 1718
  • CAT IV 600V and CAT III 1000V
  • 3 test ranges 250V-500V-1000V
  • 600V AC voltage range
  • Live Circuit warning and buzzer
  • Data Hold function
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Automatic discharge after test
  • Front panel zero adjustment for test lead resistance
  • Lock down Test Button for continuous use
  • Hands free strap and magnet supplied as standard accessories
  • Rubber overmould housing
  • Illuminated display

The MT500 is a rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environment.

Specifications

Function Range Resolution Accuracy
AC voltage 0 – 600V 20V ±(5.0%)
Resistance 3Ω – 500Ω 0.05Ω ±(3.0%)
Insulation resistance 250V 250V 0 – 100MΩ ±(5.0%)
Insulation resistance 500V 500V 0 – 200MΩ ±(5.0%)
Insulation resistance 1000V 1000V 0 – 400MΩ ±(5.0%)
Short circuit current 1.3mA
Overrange indication Yes
AC Bandwidth 40Hz – 400Hz
Digital Display Analogue Display
Continuity Yes
Auto discharge Yes
Input impedance  >1.2MΩ VAC
Data Hold Yes
Back Light Yes
Enclosure Double moulded
Low battery indication Yes
Batteries 6 x AA
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CAT IV 600V



Safety Ratings





Includes:

  • Test Leads
  • Black Crock Lead
  • Magnetic Strip
  • Carrying Case
  • Adjustable shoulder strap
  • 6 x AA Batteries
  • Instruction Manual
