These Pearpoint inspection systems are specifically designed for short-range applications. The systems have an intuitive user interface and offer a quick start-up time.
Constructed with high-quality materials and supportive of multiple reporting standards, including WRc's MSCC3, 4, and 5 condition codes.
These Pearpoint systems are available with a 25mm or 50mm camera and a 33kHz or 640Hz Flexisonde.
Key Features
- Quick and Intuitive Control
- Compact 35m Rod
- High-Quality Cameras
- Advanced WiFi Connectivity
- Robust and Durable
- Multi-Standard Reporting
What's Included?

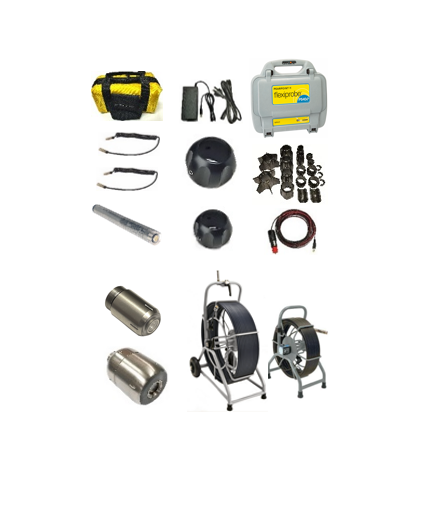

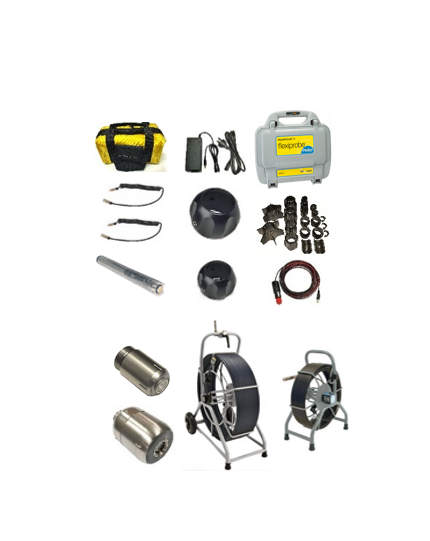

P540 PAL Dual Reel System with P550c Controller with Built-in Battery and 128GB Internal Memory, Blank USB Memory Stick, Indoor Mains PSU/Charger with Mains Lead, Vehicle Charge Lead, Two Controller to Reel Link Cables, 640Hz Flexisonde, Two Camera Skid Balls, Skids Set, Accessory Bag with
- 10/P540-640-3060-550-AU - P541 Plumbers 30m Reel Black Rod, P542 60m Reel Dark Blue Rod and 25mm and 50mm PAL Cameras
- 10/P540-640-3060-B-550-AU - P541 Plumbers 30m Reel Black Rod, P542 60m Reel Black Rod and 25mm and 50mm PAL Cameras

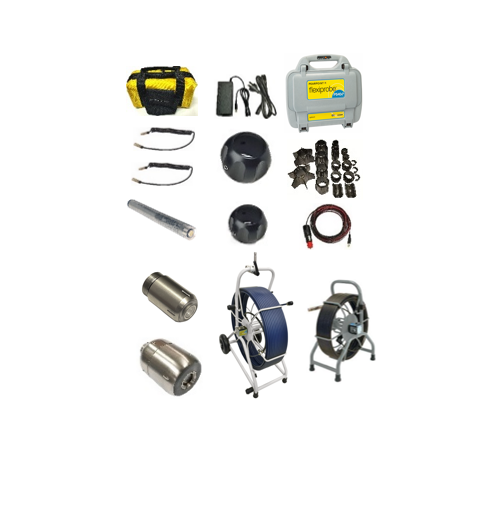

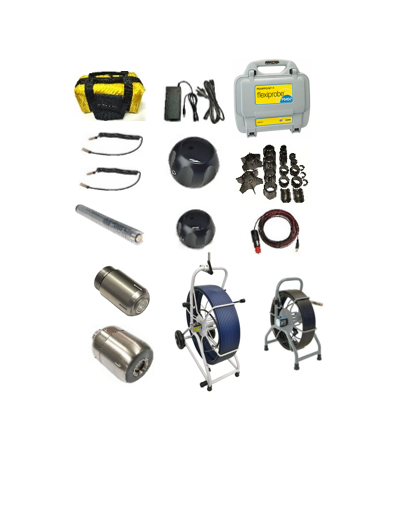

P540 PAL Dual Reel System with P550c Controller with Built-in Battery and 128GB Internal Memory, Blank USB Memory Stick, Indoor Mains PSU/Charger with Mains Lead, Vehicle Charge Lead, Two Controller to Reel Link Cables, 640Hz Flexisonde, Two Camera Skid Balls, Skids Set Accessory Bag with
- 10/P540-640-6060-550-AU -P541 Plumbers 60m Reel Black Rod and P542 60m Reel Dark Blue Rod and 25mm and 50mm PAL Cameras
- 10/P540-640-6060-B-550-AU - P541 Plumbers 60m Reel Black Rod and P542 60m Reel Black Rod and 25mm and 50mm PAL Cameras
| Cameras | 1"/25mm camera | 1 ¼"/32mm self-levelling camera | 2"/50mm self-levelling camera |
|---|---|---|---|
| Camera Dimensions | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
| Camera Weight | 0.1lbs /0.06kg | 0.4lbs/0.18kg | 0.8lbs/0.36kg |
| Camera Construction | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | Stainless steel/ polycarbonate |
| Power | 1.8W | 1.3W | 3.8W |
| Environmental | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
| Temperature | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C |
||
| Focus | Manually adjustable | Fixed | Manually adjustable |
| Focal range | 10mm to ∞ | Fixed | 10mm to ∞ |
| Lighting | Ultra bright white LEDs | ||
| LED luminance | ≥ 75lm | ≥ 150lm | ≥ 208lm |
| Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL |
640 x 480 (NTSC) 640 x 576 (PAL) |
768 x 492 NTSC 765 x 582 PAL |
| Horizontal resolution | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
These Pearpoint inspection systems are specifically designed for short-range applications. The systems have an intuitive user interface and offer a quick start-up time.
Constructed with high-quality materials and supportive of multiple reporting standards, including WRc's MSCC3, 4, and 5 condition codes.
These Pearpoint systems are available with a 25mm or 50mm camera and a 33kHz or 640Hz Flexisonde.
Key Features
- Quick and Intuitive Control
- Compact 35m Rod
- High-Quality Cameras
- Advanced WiFi Connectivity
- Robust and Durable
- Multi-Standard Reporting
What's Included?
P540 PAL Dual Reel System with P550c Controller with Built-in Battery and 128GB Internal Memory, Blank USB Memory Stick, Indoor Mains PSU/Charger with Mains Lead, Vehicle Charge Lead, Two Controller to Reel Link Cables, 640Hz Flexisonde, Two Camera Skid Balls, Skids Set, Accessory Bag with
- 10/P540-640-3060-550-AU - P541 Plumbers 30m Reel Black Rod, P542 60m Reel Dark Blue Rod and 25mm and 50mm PAL Cameras
- 10/P540-640-3060-B-550-AU - P541 Plumbers 30m Reel Black Rod, P542 60m Reel Black Rod and 25mm and 50mm PAL Cameras
P540 PAL Dual Reel System with P550c Controller with Built-in Battery and 128GB Internal Memory, Blank USB Memory Stick, Indoor Mains PSU/Charger with Mains Lead, Vehicle Charge Lead, Two Controller to Reel Link Cables, 640Hz Flexisonde, Two Camera Skid Balls, Skids Set Accessory Bag with
- 10/P540-640-6060-550-AU -P541 Plumbers 60m Reel Black Rod and P542 60m Reel Dark Blue Rod and 25mm and 50mm PAL Cameras
- 10/P540-640-6060-B-550-AU - P541 Plumbers 60m Reel Black Rod and P542 60m Reel Black Rod and 25mm and 50mm PAL Cameras
| Cameras | 1"/25mm camera | 1 ¼"/32mm self-levelling camera | 2"/50mm self-levelling camera |
|---|---|---|---|
| Camera Dimensions | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
| Camera Weight | 0.1lbs /0.06kg | 0.4lbs/0.18kg | 0.8lbs/0.36kg |
| Camera Construction | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | Stainless steel/ polycarbonate |
| Power | 1.8W | 1.3W | 3.8W |
| Environmental | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
| Temperature | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C |
||
| Focus | Manually adjustable | Fixed | Manually adjustable |
| Focal range | 10mm to ∞ | Fixed | 10mm to ∞ |
| Lighting | Ultra bright white LEDs | ||
| LED luminance | ≥ 75lm | ≥ 150lm | ≥ 208lm |
| Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL |
640 x 480 (NTSC) 640 x 576 (PAL) |
768 x 492 NTSC 765 x 582 PAL |
| Horizontal resolution | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
