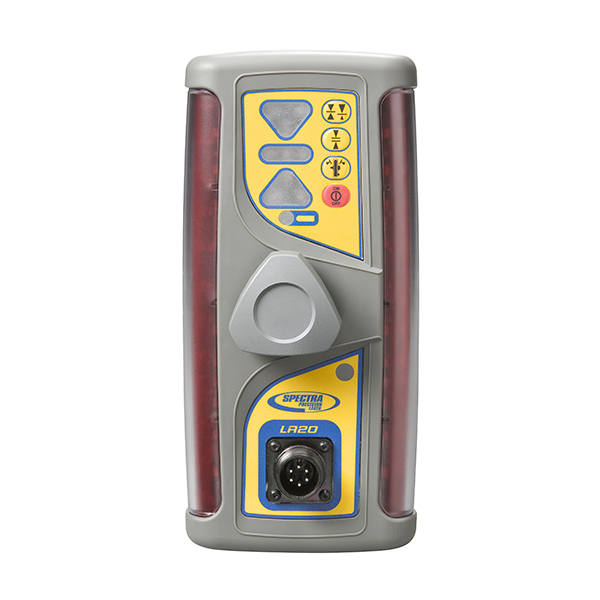

Spectra Precision LR20 Laser Machine Display Receiver
Product overview
Trimble LR20 Laser Machine Display Receiver for improved productivity on compact machines
The Spectra Precision® LR20 laser receivers allow compact machines to achieve tighter tolerances without the need for a grade checker. Now smaller machines can be more productive while improving accuracy and saving material usage costs.
Designed specifically for the cost-conscious site prep contractor, these receivers offer a very attractive return on investment by improving the productivity and material usage costs of compact machines. From simple depth and slope display to elevation control, you can broaden the scope of job applications and very easily move the laser receivers across their fleet of compact machines.
These rugged units can be easily moved from machine to machine with features and setup options for multiple applications and specifications. The 360-degree laser reception height ensures maximum laser control across the site.
The LR20 Laser Machine Display Receiver is as a standalone display receiver for mini excavators, backhoes and scrapers, skid steer attachments, box blades, pulled scrapers and small dozers. It is powered NiMH batteries and direct machine power.
Features
- 8-in., 360-degree laser reception provides increased working area and range
- Polycarbonate housing and elastomer over-molding provides rugged durability for years of reliable use Super bright grade display with green "on-grade"
- LEDs provide superior depth/elevation indication
- Push button setup for ease of use and application flexibility
- Powered by NiMH batteries or direct machine power
- Has plumb indication
Includes:
- LR20
- Mini magnetic mount
- Carry case
Specifications
| Number of Display Channels | 5-Channel Display |
| Accuracy: Center on grade mode | Fine: 5 mm (0.20 in) (grading) Standard: 10 mm (0.40 in) Wide: 20 mm (0.80 in) |
| Accuracy: Offset on grade mode | Fine: 12 mm (0.50 in) (excavating) Standard: 25 mm (1.0 in) Wide: 50 mm (2.0 in) |
| ACE—Angle Compensation Mode | N/A |
| Blade-Tilt Accuracy | N/A |
| Plumb-Swing Accuracy | ± 0.5°, ± 1.5°, ± 2.5° |
| Vertical Reception | 203 mm (8 in) |
| LED Battery Life | 35hrs |
| Alkaline Bright/Dim | Wireless with remote on |
| Ni-MH Bright/Dim | Wireless with remote on |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Spectra Precision LR20 Laser Machine Display Receiver
Product overview
Trimble LR20 Laser Machine Display Receiver for improved productivity on compact machines
The Spectra Precision® LR20 laser receivers allow compact machines to achieve tighter tolerances without the need for a grade checker. Now smaller machines can be more productive while improving accuracy and saving material usage costs.
Designed specifically for the cost-conscious site prep contractor, these receivers offer a very attractive return on investment by improving the productivity and material usage costs of compact machines. From simple depth and slope display to elevation control, you can broaden the scope of job applications and very easily move the laser receivers across their fleet of compact machines.
These rugged units can be easily moved from machine to machine with features and setup options for multiple applications and specifications. The 360-degree laser reception height ensures maximum laser control across the site.
The LR20 Laser Machine Display Receiver is as a standalone display receiver for mini excavators, backhoes and scrapers, skid steer attachments, box blades, pulled scrapers and small dozers. It is powered NiMH batteries and direct machine power.
Features
- 8-in., 360-degree laser reception provides increased working area and range
- Polycarbonate housing and elastomer over-molding provides rugged durability for years of reliable use Super bright grade display with green "on-grade"
- LEDs provide superior depth/elevation indication
- Push button setup for ease of use and application flexibility
- Powered by NiMH batteries or direct machine power
- Has plumb indication
Includes:
- LR20
- Mini magnetic mount
- Carry case
Specifications
| Number of Display Channels | 5-Channel Display |
| Accuracy: Center on grade mode | Fine: 5 mm (0.20 in) (grading) Standard: 10 mm (0.40 in) Wide: 20 mm (0.80 in) |
| Accuracy: Offset on grade mode | Fine: 12 mm (0.50 in) (excavating) Standard: 25 mm (1.0 in) Wide: 50 mm (2.0 in) |
| ACE—Angle Compensation Mode | N/A |
| Blade-Tilt Accuracy | N/A |
| Plumb-Swing Accuracy | ± 0.5°, ± 1.5°, ± 2.5° |
| Vertical Reception | 203 mm (8 in) |
| LED Battery Life | 35hrs |
| Alkaline Bright/Dim | Wireless with remote on |
| Ni-MH Bright/Dim | Wireless with remote on |
