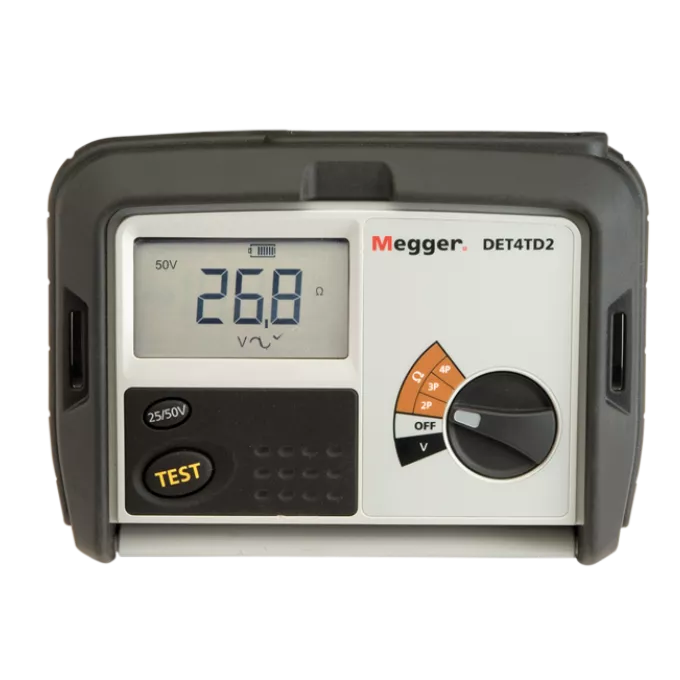

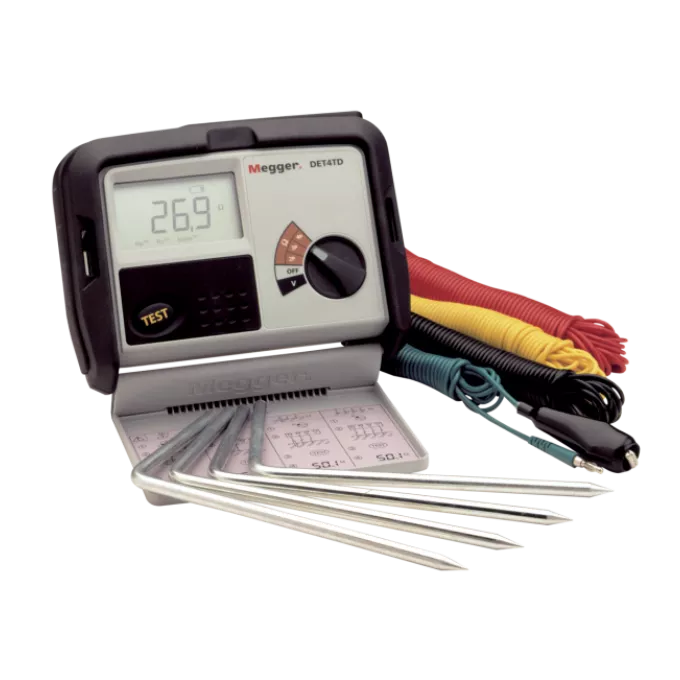

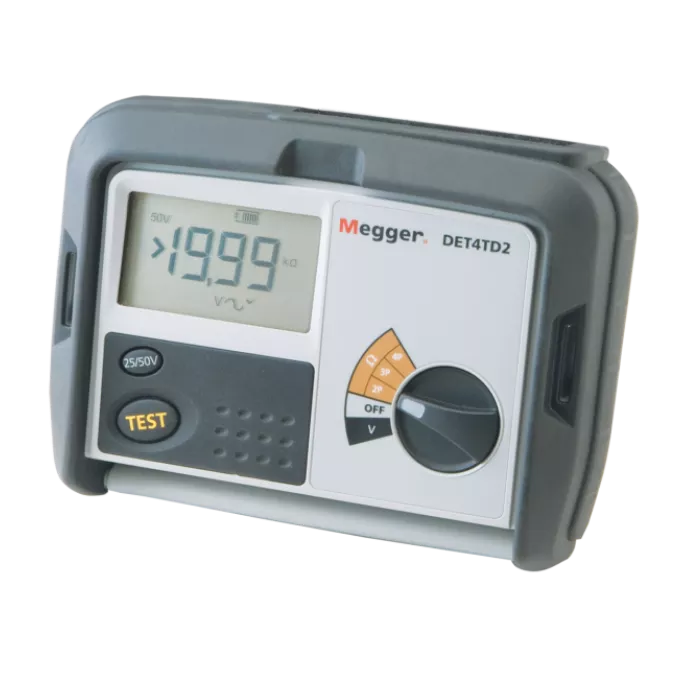

DET4TD2 c/w leads + spikes ; DET4TD2 Digital Earth Tester - 2, 3 & 4 Terminal, with Case, Basic Lead and Spike Kit, and Terminal Bare Wire Adaptors. Factory Calibration Cert: Included
Use the instrument like a clamp-on tester in applications where viable, while also being able to operate as a Fall of Potential tester
Attached Rod Technique (ART) capability
Multiple, user-selectable test frequencies
Allows the operator to find the most effective frequency for making the measurement
Resistance measurement range to 200 kilohms
Megger’s DET4 series of four-terminal earth/ground resistance testers offers a comprehensive solution to your earth/ground and soil resistivity testing needs.
To that end, this popular instrument series includes four models with different kit variants that contain various accessories for greater testing flexibility. The four basic units are:
- DET4TD2: Dry-cell battery-powered basic four-terminal tester

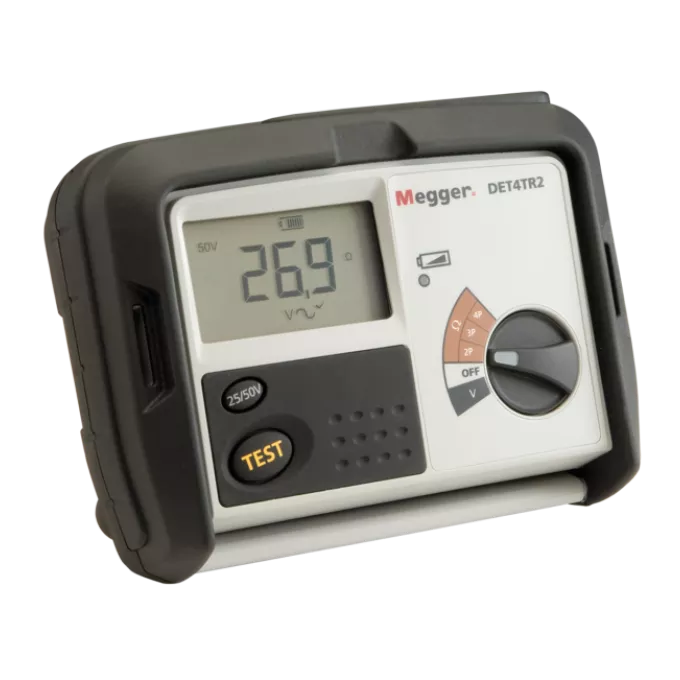

- DET4TR2: Rechargeable battery-powered basic four-terminal tester
- DET4TC2: Dry-cell battery-powered four-terminal tester with selectable test frequencies, greater measurement sensitivity, attached rod technique (ART), and stakeless measurement capability
- DET4TCR2: Rechargeable battery-powered four-terminal tester with selectable test frequencies, greater measurement sensitivity, attached rod technique (ART), and stakeless measurement capability
The DET4TC2 and the DET4TCR2 testers are for demanding applications requiring maximum versatility. These instruments support two-, three- and four-pole testing, as well as attached rod technique (ART), stakeless, leakage current, and earth noise voltage measurement. They also allow you to select the test frequency from one of four options: 94 Hz, 105 Hz, 111 Hz, and 128 Hz, making it easy to choose a frequency that minimises the effects of interference, even in difficult situations.
When the exceptional versatility of the DET4TC models is not needed, Megger offers the DET4TD2 and DET4TR2 testers, the former designed for use with replaceable batteries and the latter with rechargeable cells. These competitive instruments fully support the most popular earth resistance test methods – two-, three- and four-pole testing.
All DET4 models are rated to IP54, making them ideal for outdoor working, and they are designed to meet stringent safety standards, rated CAT IV to 100 V. Additionally, all the DET4 instruments are ergonomically designed with a large selector switch enabling you to easily select two, three, or four-pole tests, even with gloved hands.
Explore our full range of earth resistance testers and other ground testing solutions for reliable measurement of earthing systems across commercial, industrial, and utility applications.
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
DET4TD2 c/w leads + spikes ; DET4TD2 Digital Earth Tester - 2, 3 & 4 Terminal, with Case, Basic Lead and Spike Kit, and Terminal Bare Wire Adaptors. Factory Calibration Cert: Included
Use the instrument like a clamp-on tester in applications where viable, while also being able to operate as a Fall of Potential tester
Attached Rod Technique (ART) capability
Multiple, user-selectable test frequencies
Allows the operator to find the most effective frequency for making the measurement
Resistance measurement range to 200 kilohms
Megger’s DET4 series of four-terminal earth/ground resistance testers offers a comprehensive solution to your earth/ground and soil resistivity testing needs.
To that end, this popular instrument series includes four models with different kit variants that contain various accessories for greater testing flexibility. The four basic units are:
- DET4TD2: Dry-cell battery-powered basic four-terminal tester
- DET4TR2: Rechargeable battery-powered basic four-terminal tester
- DET4TC2: Dry-cell battery-powered four-terminal tester with selectable test frequencies, greater measurement sensitivity, attached rod technique (ART), and stakeless measurement capability
- DET4TCR2: Rechargeable battery-powered four-terminal tester with selectable test frequencies, greater measurement sensitivity, attached rod technique (ART), and stakeless measurement capability
The DET4TC2 and the DET4TCR2 testers are for demanding applications requiring maximum versatility. These instruments support two-, three- and four-pole testing, as well as attached rod technique (ART), stakeless, leakage current, and earth noise voltage measurement. They also allow you to select the test frequency from one of four options: 94 Hz, 105 Hz, 111 Hz, and 128 Hz, making it easy to choose a frequency that minimises the effects of interference, even in difficult situations.
When the exceptional versatility of the DET4TC models is not needed, Megger offers the DET4TD2 and DET4TR2 testers, the former designed for use with replaceable batteries and the latter with rechargeable cells. These competitive instruments fully support the most popular earth resistance test methods – two-, three- and four-pole testing.
All DET4 models are rated to IP54, making them ideal for outdoor working, and they are designed to meet stringent safety standards, rated CAT IV to 100 V. Additionally, all the DET4 instruments are ergonomically designed with a large selector switch enabling you to easily select two, three, or four-pole tests, even with gloved hands.
Explore our full range of earth resistance testers and other ground testing solutions for reliable measurement of earthing systems across commercial, industrial, and utility applications.
