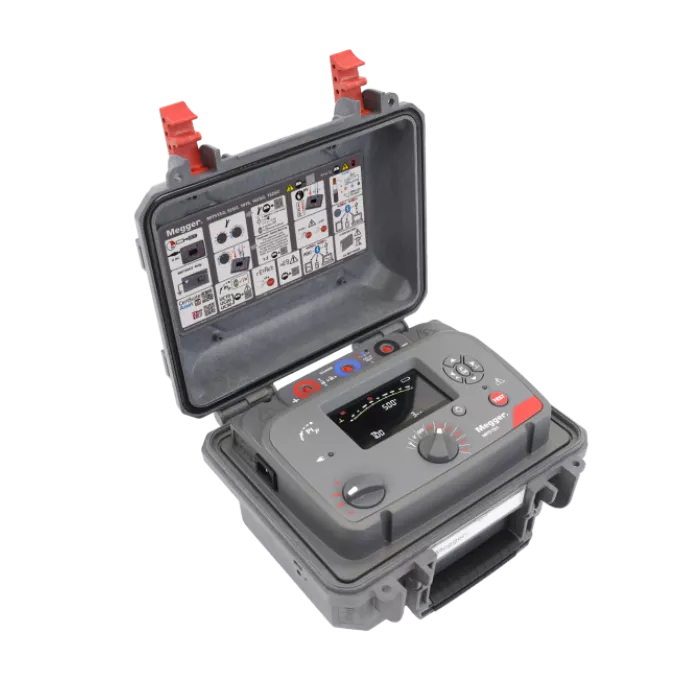

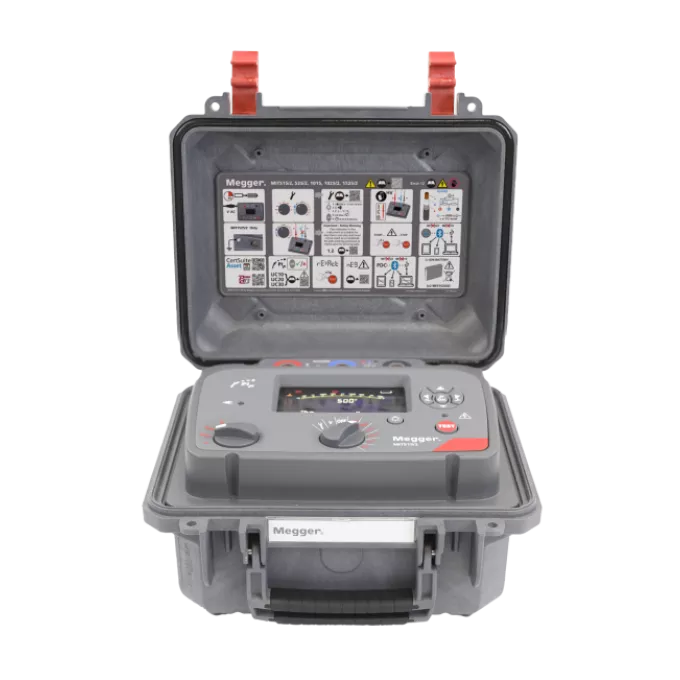

MIT515/2-AU ESSENTIAL 5kV IRT 2024 PIP ; MIT515/2-AU Essential 5 kV IR tester 2024 model with DAR, PI and PI Predictor. Medium charge (3mA) and medium noise (3mA) capability. Factory Calibration Cert:check
Perform essential insulation tests quickly and accurately on motors, transformers, cables and other electrical assets.
Stable, accurate results
PI Predictor™ cuts test time in half
Accurate testing with RE>Act™
Designed for real-world use
Operator safety built-in

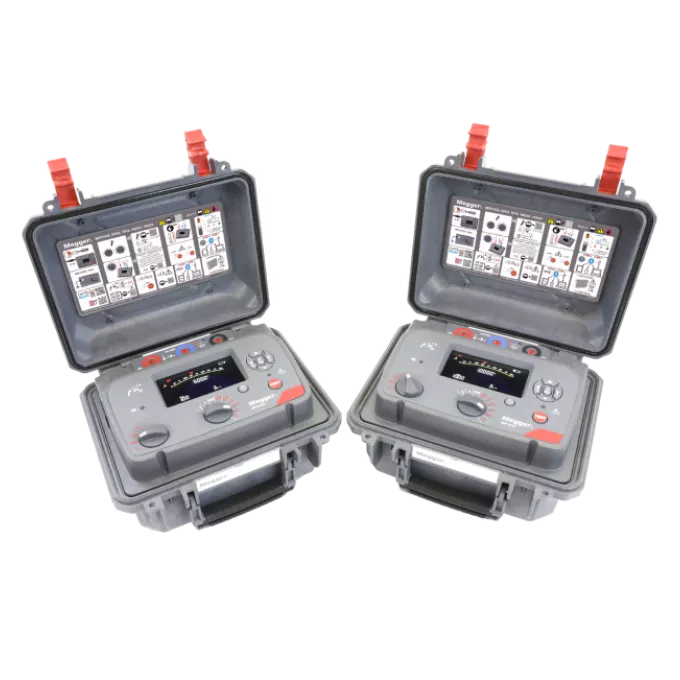

The range includes two models: the MIT515 (up to 5 kV) and MIT1015 (up to 10 kV), both supporting insulation resistance, dielectric absorption ratio (DAR), and polarisation index (PI) testing. Megger’s PI Predictor™ reduces PI test duration by up to 50%, boosting productivity when testing multiple phases.
The new innovative patent applied RE>Act test mode allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur.
These instruments have no onboard storage and a fixed 3 mA burn/charge current—perfect for environments where advanced features like remote control aren’t required. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions.
Simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications, the Essential range delivers fast, dependable results—without complexity.
To explore additional options, see our full range of insulation testers.
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
MIT515/2-AU ESSENTIAL 5kV IRT 2024 PIP ; MIT515/2-AU Essential 5 kV IR tester 2024 model with DAR, PI and PI Predictor. Medium charge (3mA) and medium noise (3mA) capability. Factory Calibration Cert:check
Perform essential insulation tests quickly and accurately on motors, transformers, cables and other electrical assets.
Stable, accurate results
PI Predictor™ cuts test time in half
Accurate testing with RE>Act™
Designed for real-world use
Operator safety built-in
The range includes two models: the MIT515 (up to 5 kV) and MIT1015 (up to 10 kV), both supporting insulation resistance, dielectric absorption ratio (DAR), and polarisation index (PI) testing. Megger’s PI Predictor™ reduces PI test duration by up to 50%, boosting productivity when testing multiple phases.
The new innovative patent applied RE>Act test mode allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur.
These instruments have no onboard storage and a fixed 3 mA burn/charge current—perfect for environments where advanced features like remote control aren’t required. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions.
Simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications, the Essential range delivers fast, dependable results—without complexity.
To explore additional options, see our full range of insulation testers.
