X3 Laser Measurer Laser Measuring Solution
Leica Disto X3 Video
CONSTRUCTION SITE PROOF
The Leica DISTOTM X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.
SMART ROOM
New Leica DISTOTM technologies in combination with the Smart Room function of the Leica DISTOTM Plan app allow you to quickly create scaled floor plans on your smartphone or tablet.
POINT TO POINT MEASUREMENT

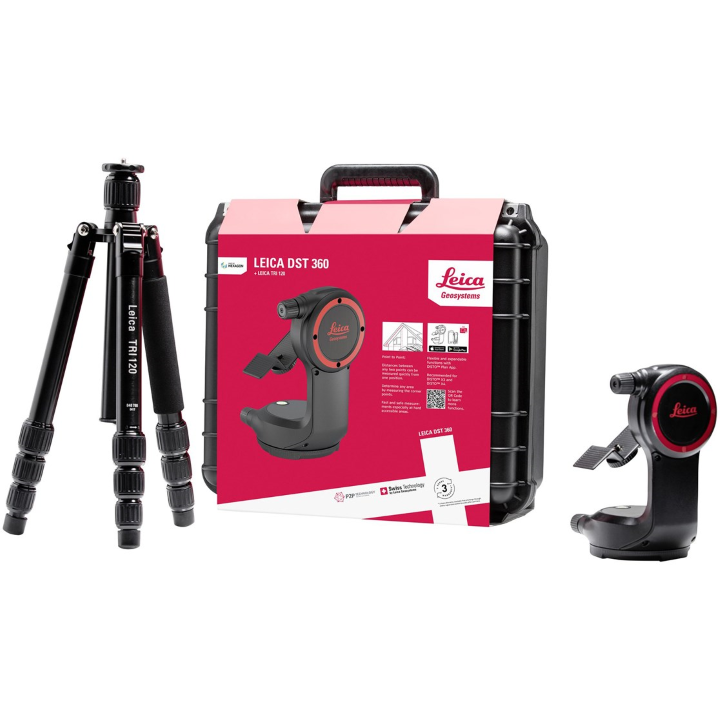

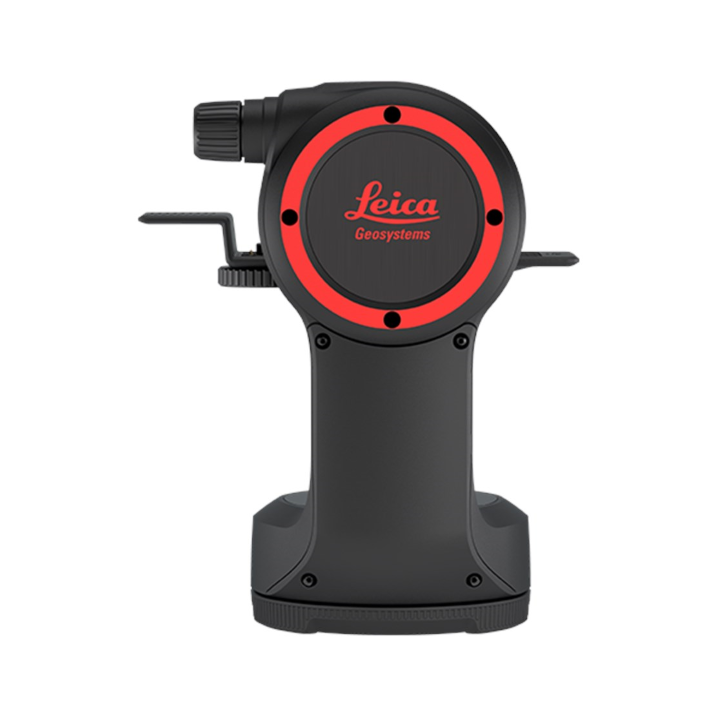

The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.
INTUITIVE
Easy to use buttons and functions make working with the DISTOTM X3 fast and intuitive.
YOUR DISTO X3
The DISTO X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.
Specifications
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150 m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Tilt sensor | Yes |
| Tilt sensor accuracy to the housing | ± 0.2° |
| Smart Base measuring range Horizontal Vertical |
360° for use with Leica DST 360 |
| Typ. tolerance of P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 |
| Memory of last measurement | 20 |
| Free software for Windows | Yes |
| Free App for iOS and Android | Yes |
| Smart Room function support | Yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | Yes |
| Batteries | 2x AA Alkaline |
| Protection class | IP 65 |
| 2m drop tested | Yes |
| Dimensions | 132 x 56 x 29 mm |
| Weight with batteries | 184g |
Error 156: The transverse tilt is greater than +/- 10°
To resolve: Hold the instrument without any transverse tilt
Error 162: Calibration mistake
To resolve: Make sure the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the message still occurs, contact the dealer
Error 204: Calculation error
To resolve: Repeat measurements, make sure to follow the sequence according to the manual
Error 205: S910 memory full
To resolve: Delete memory
Error 220 & 224: Hardware error
To resolve: If the message continuously appears, contact the dealer for service
Error 240 & 245: Data transfer error
To resolve: Re-connect device with computer and repeat procedure
Error 252: Temperature too high
To resolve: Let device cool down
Error 253: Temperature too low
To resolve: Let device warm up
Error 254: Battery voltage too low for measurements
To resolve: Change batteries
Error 255: Received signal too weak, measuring time too long
To resolve: Change target surface (i.e. white paper)
Error 256: Received signal too high
To resolve: Change target surface (i.e. white paper)
Error 257: Too much background light
To resolve: Shadow target area
Error 258: Measuring outside of measuring range
To resolve: Correct range
Error 260: Laser beam interrupt
To resolve: Repeat measurement
Error 284: Laser defect
To resolve: If message continuously appears, contact the dealer for service
Error 288-294: Hardware error
To resolve: If message continuously appears, contact the dealer for service
Error 300: Smart base not folded out
To resolve: Fold out Smart Base
Error 301: Device was moved, levelling not valid anymore
To resolve: Perform levelling again. Levelling with invalid levelling is possible, but it will affect the accuracy
Error 302: S910 "Point data transmission" is selected, but WLAN is off
To resolve: Switch on WLAN
Error 303 - 306: Error with Leica DST 360 Adapter
To resolve: Repeat procedure and if message still occurs, contact your dealer
Error 340: WLAN: Data transfer error
To resolve: Repeat procedure
Error 341: Authentication error
To resolve: Use correct password
Error >1000: Hardware error
To resolve: If message continuously appears, contact the dealer for service
Error 14041: Smart Base defect
To resolve: If message continuously appears, contact the dealer for service
