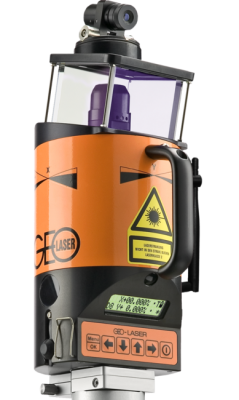

NL-8 Fully Automatic Steep Dual Grade Laser

SKU: 0001.345.1
$5,883.00

Not Available

Similar/Suggested Product:

Geo-Laser Inclination Laser NL-700

Geo-Laser Inclination Laser NL-700

SKU: 0002.700.1

$6,209.00
Need more info? Call us +61 8 9335 1718

Robust & Weatherproof: NL-8 Laser Takes on the Toughest Jobs

The NL-8 is a surface construction laser capable of electronic self-levelling over two axes. It emits a laser beam which turns into a light plane as it rotates horizontal with single or double inclination up to steep inclination.

FEATURES

  • Fully automatic
    Automatic levelling. inclination zeroing and cut-out in case of low battery or jerky movement.

  • Robust metal housing
    laser/remote control Plastic-coated swept and filled with nitrogen 100 % watertight.

  • Special aiming device NL-8
    For quick alignment of the inclination axis in all four directions. also when aligning at different target heights.

  • Inclination measurement parallel to ground
    Even if the inclination is not known. it simply can be adapted to the ground.

  • Increased safety
    Control indicators with blinking warning system for levelling operation status and low battery. The name of the owner can be saved in the device to protect against theft. Automatic laser cut-out in case of jerky movement (bumps), Shift guard for X/Y inclination setting and rotational speed.

  • Illuminated clearly legible LCD display
    Self-explanatory for on/off device data company data lock function inclination algebraic sign unit % or ‰ rotor speed operating status battery level and menu.

  • Special laser beam quality
    Diode laser with visible beam high life expectancy and low power consumption.

  • Range deactivation of laser
    Thereby the emission of laser beam can be limited from 400 gon to 300 gon or 200 gon or 100 gon.

  • Lithium ion rechargeable battery
    Operation time to 27 hours with one charge. Rechargeable in 5 hours max. without having to take out the battery.

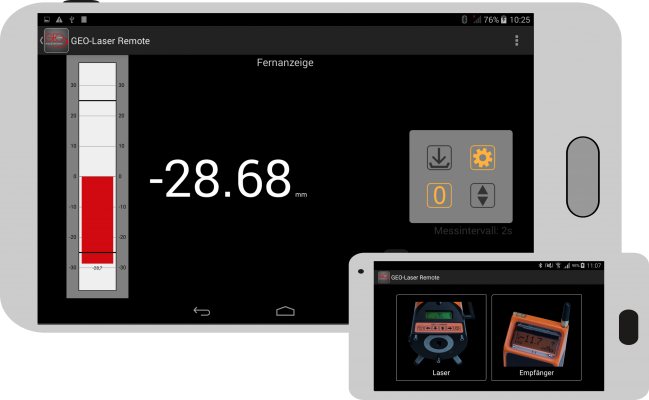

  • Two-way radio remote control (optional)
    Operation of the laser completely via radio control up to 350 m.

Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

SPECIFICATIONS

Laser class 2, P < 2.6 mW
Laser Diode, visible red, 658 nm
Laser range bis 500 m
Inclination range X-Axis - 5 % to + 50 % Y-Axis - 5 % to + 12 %
Self-levelling range over the complete inclination range
Reading accuracy 0.001 %
Permissible deviation ± 5 mm/100 m
Operating time up to 27 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 0.35 bar
Temperature range - 10° C to + 50° C
Weight 3,6 kg
Rotor speed from 600 - 1000 RPM
Adjustment possible in the field without having to open the device





Download Brochure
