GEO-Laser PL-74L Precision Rotary Laser Leve

SKU: 0001.775.1
$4,302.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

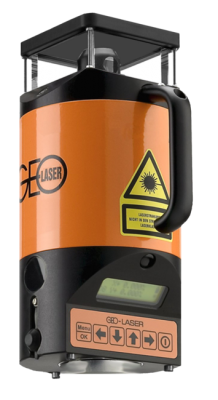

Geo Laser PL-74L Precision Laser

The automatic precision laser PL-74L is an all-around laser for horizontal use capable of electronic self-levelling over two axes. It emits a laser beam, which turns into a light plane as it rotates.

Geo Laser PL-74L Video

Performance features
Laser class 2, laser power < 1 mW. No special safety precautions necessary. The easy standard laser class.



FEATURES

  • Fully automatic
    Automatic levelling and cut-out in case of low battery or jerky movements.

  • Automatic function can be switched off
    Therefore inclination adjustment by points of reference is possible.

  • Illuminated, clearly legible LCD display
    Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu.

  • Increased safety
    Control indicators with blinking warning system for levelling, operating status and low battery.

  • Robustes Metallgehäuse
    Kunststoff beschichtet, Stickstoff gespült und gefüllt.

  • Robust metal housing
    Plastic coated, swept and filled with nitrogen, 100 % watertight.

  • Special laser beam quality
    Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption.

  • Lithium ion rechargeable battery
    Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery.

  • Uncompromisingly easy
    All you have to do is switch on/off. The rest is done by the PL-74L automatically.

  • Checking and adjustment
    Easily possible at the building site as well. The device does not have to be opened for adjustment.



SPECIFICATIONS

Laser class 2, < 1 mW
Laser Diode visible red 635 nm
Laser range from 0.5 m to 100 m. Ø 200 m depending on circumstances and laser receiver
Beam diameter at laser at laser 5 mm
Self-levelling range ± 5 %
Permissible deviation ± 0.025 mm + ± 0.024 mm/m
Operating time up to 28 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range 0° C to + 40° C
Weight 3.4 kg
Rotor speed adjustable in steps from 0 to 800 RPM
Adjustment

possible in the field without having to open the device



Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

Download the data sheet here!

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Geo Laser PL-74L Precision Laser

The automatic precision laser PL-74L is an all-around laser for horizontal use capable of electronic self-levelling over two axes. It emits a laser beam, which turns into a light plane as it rotates.

Geo Laser PL-74L Video

Performance features
Laser class 2, laser power < 1 mW. No special safety precautions necessary. The easy standard laser class.



FEATURES

  • Fully automatic
    Automatic levelling and cut-out in case of low battery or jerky movements.

  • Automatic function can be switched off
    Therefore inclination adjustment by points of reference is possible.

  • Illuminated, clearly legible LCD display
    Self-explanatory, for on/off, device data, company data, lock function, operating status, battery level and menu.

  • Increased safety
    Control indicators with blinking warning system for levelling, operating status and low battery.

  • Robustes Metallgehäuse
    Kunststoff beschichtet, Stickstoff gespült und gefüllt.

  • Robust metal housing
    Plastic coated, swept and filled with nitrogen, 100 % watertight.

  • Special laser beam quality
    Diode laser with visible beam, high-powered lens, high life expectancy and low power consumption.

  • Lithium ion rechargeable battery
    Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery.

  • Uncompromisingly easy
    All you have to do is switch on/off. The rest is done by the PL-74L automatically.

  • Checking and adjustment
    Easily possible at the building site as well. The device does not have to be opened for adjustment.



SPECIFICATIONS

Laser class 2, < 1 mW
Laser Diode visible red 635 nm
Laser range from 0.5 m to 100 m. Ø 200 m depending on circumstances and laser receiver
Beam diameter at laser at laser 5 mm
Self-levelling range ± 5 %
Permissible deviation ± 0.025 mm + ± 0.024 mm/m
Operating time up to 28 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range 0° C to + 40° C
Weight 3.4 kg
Rotor speed adjustable in steps from 0 to 800 RPM
Adjustment

possible in the field without having to open the device



Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

Download the data sheet here!
