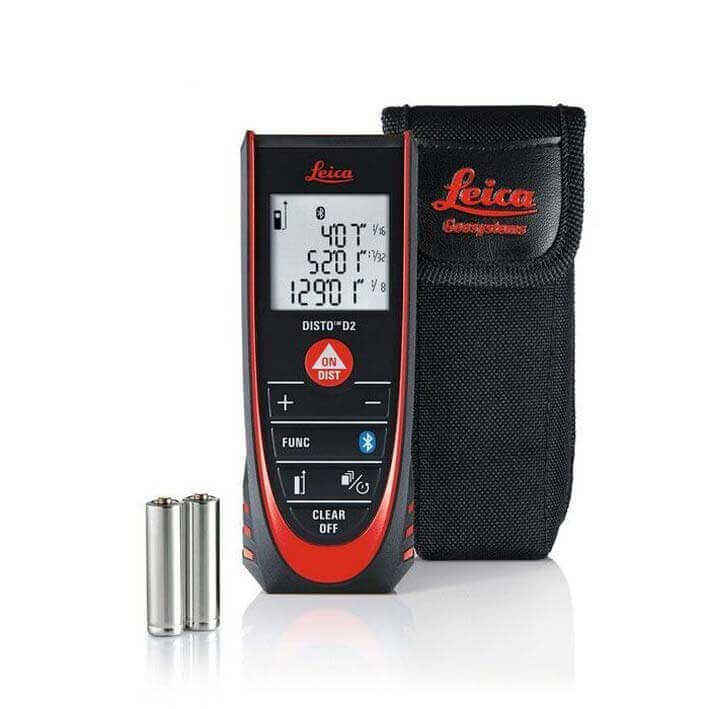

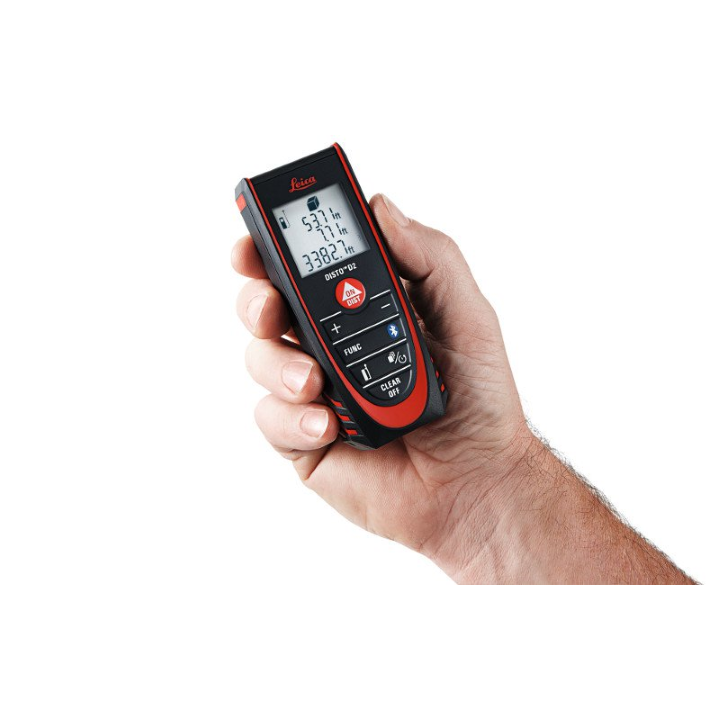

Leica Disto D2 Laser Measurer

SKU: LG837031
$169.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Our newest take on the classic Leica DISTO™ D2.

Now with Bluetooth®, a fully integrated intelligent endpiece, a bright white display and an ISO certified measuring engine that drives 1,5 mm accuracy and 100 m measuring range.

The Leica DISTO™ D2 is a 7 measurement mode laser distance meter accurate to 1.5 millimeters. It features an intuitive back-lit LCD display in a 100 gram package that is small enough to fit in your pocket.

Use Bluetooth® to send measurements into apps running on mobile devices.

The D2 measures from its base by default and can be configured to measure from the front.

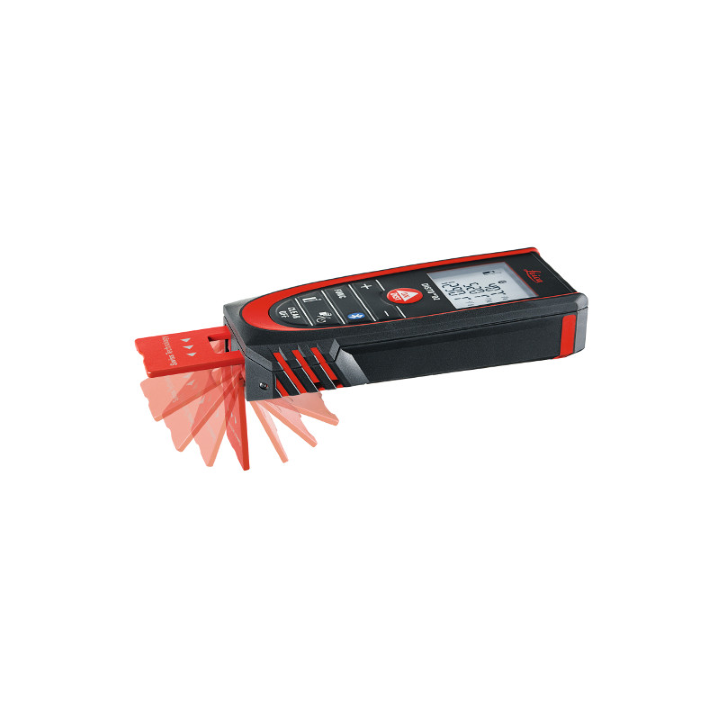

Flip out the intelligent endpiece to 90º to hook onto outside corners or extend the endpiece fully for inside corners. The D2 will automatically measure from the end of its flip-out endpiece when fully extended. Combined with the Min/Max function, the endpiece allows you to get the tool all the way into corners for accurate diagonal measurements as shown in this Intelligent Endpiece video

The D2 calculates area and volume, and remembers the last 10 measurements taken. Use the Add/Subtract capability to combine measurements to get a precise reading of the total wall area of a room (aka "the painter function").

The D2 includes a Pythagoras function for indirect height or width measurements. However, in a tool this size that cannot be mounted to a tripod we recommend using the Pythagoras for estimates or rough measurements. If you need precise indirect measurements, a Laser Distance Meter with a tilt sensor is your best bet.

Laser Measurer system


Specifications

Leica Disto D2 Video


Typical measuring accuracy 1/16” / ± 1.5 mm
ISO 16331-1 certified Range up to 330 ft / up to 100 m
Measuring units 0.000 m, 0.00 ft, 0'00" 1/16, 0 in 1/16
Memory Last 10 values
Data Interface Bluetooth® Smart V4.0
Measurements per set of batteries up to 10,000
Multifunctional end-piece Yes, Intelligent recognition
Batteries 2x AAA 1.5 V (Ships with alkaline)
Display 3 line display with illumination
Protection class IP 54, dust & splash protected
Dimensions 4.57 x 1.73 x 1.02 in / 116 x 44 x 26 mm
Weight with batteries 3.53 oz / 100 g
Minimum / maximum measurements Yes
Area / volume calculation Yes
Pythagoras functions 2 points, 3 points
Stake-out function Yes, single value
Painter Function Yes
Subtraction / addition Yes
Timer function Yes, variable
Beep Yes, switchable on/off
Operating temperature range 14°F to 122°F / -10°C to 50°C
Storage temperature range -13°F to 158°F / -25°C to 70°C
EAN/UPC 7640110696354 (US, CAN) / 7640110696347 (Global)



Download Brochure



Error 156: The transverse tilt is greater than +/- 10°
To resolve: Hold the instrument without any transverse tilt


Error 162: Calibration mistake
To resolve: Make sure the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the message still occurs, contact the dealer


Error 204: Calculation error
To resolve: Repeat measurements, make sure to follow the sequence according to the manual


Error 205: S910 memory full
To resolve: Delete memory


Error 220 & 224: Hardware error
To resolve: If the message continuously appears, contact the dealer for service


Error 240 & 245: Data transfer error
To resolve: Re-connect device with computer and repeat procedure


Error 252: Temperature too high
To resolve: Let device cool down


Error 253: Temperature too low
To resolve: Let device warm up


Error 254: Battery voltage too low for measurements
To resolve: Change batteries


Error 255: Received signal too weak, measuring time too long
To resolve: Change target surface (i.e. white paper)


Error 256: Received signal too high
To resolve: Change target surface (i.e. white paper)


Error 257: Too much background light
To resolve: Shadow target area


Error 258: Measuring outside of measuring range
To resolve: Correct range


Error 260: Laser beam interrupt
To resolve: Repeat measurement


Error 284: Laser defect
To resolve: If message continuously appears, contact the dealer for service


Error 288-294: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 300: Smart base not folded out
To resolve: Fold out Smart Base


Error 301: Device was moved, levelling not valid anymore
To resolve: Perform levelling again. Levelling with invalid levelling is possible, but it will affect the accuracy


Error 302: S910 "Point data transmission" is selected, but WLAN is off
To resolve: Switch on WLAN


Error 303 - 306: Error with Leica DST 360 Adapter
To resolve: Repeat procedure and if message still occurs, contact your dealer


Error 340: WLAN: Data transfer error
To resolve: Repeat procedure


Error 341: Authentication error
To resolve: Use correct password


Error >1000: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 14041: Smart Base defect
To resolve: If message continuously appears, contact the dealer for service

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Our newest take on the classic Leica DISTO™ D2.

Now with Bluetooth®, a fully integrated intelligent endpiece, a bright white display and an ISO certified measuring engine that drives 1,5 mm accuracy and 100 m measuring range.

The Leica DISTO™ D2 is a 7 measurement mode laser distance meter accurate to 1.5 millimeters. It features an intuitive back-lit LCD display in a 100 gram package that is small enough to fit in your pocket.

Use Bluetooth® to send measurements into apps running on mobile devices.

The D2 measures from its base by default and can be configured to measure from the front.

Flip out the intelligent endpiece to 90º to hook onto outside corners or extend the endpiece fully for inside corners. The D2 will automatically measure from the end of its flip-out endpiece when fully extended. Combined with the Min/Max function, the endpiece allows you to get the tool all the way into corners for accurate diagonal measurements as shown in this Intelligent Endpiece video

The D2 calculates area and volume, and remembers the last 10 measurements taken. Use the Add/Subtract capability to combine measurements to get a precise reading of the total wall area of a room (aka "the painter function").

The D2 includes a Pythagoras function for indirect height or width measurements. However, in a tool this size that cannot be mounted to a tripod we recommend using the Pythagoras for estimates or rough measurements. If you need precise indirect measurements, a Laser Distance Meter with a tilt sensor is your best bet.

Laser Measurer system


Specifications

Leica Disto D2 Video


Typical measuring accuracy 1/16” / ± 1.5 mm
ISO 16331-1 certified Range up to 330 ft / up to 100 m
Measuring units 0.000 m, 0.00 ft, 0'00" 1/16, 0 in 1/16
Memory Last 10 values
Data Interface Bluetooth® Smart V4.0
Measurements per set of batteries up to 10,000
Multifunctional end-piece Yes, Intelligent recognition
Batteries 2x AAA 1.5 V (Ships with alkaline)
Display 3 line display with illumination
Protection class IP 54, dust & splash protected
Dimensions 4.57 x 1.73 x 1.02 in / 116 x 44 x 26 mm
Weight with batteries 3.53 oz / 100 g
Minimum / maximum measurements Yes
Area / volume calculation Yes
Pythagoras functions 2 points, 3 points
Stake-out function Yes, single value
Painter Function Yes
Subtraction / addition Yes
Timer function Yes, variable
Beep Yes, switchable on/off
Operating temperature range 14°F to 122°F / -10°C to 50°C
Storage temperature range -13°F to 158°F / -25°C to 70°C
EAN/UPC 7640110696354 (US, CAN) / 7640110696347 (Global)



Download Brochure



Error 156: The transverse tilt is greater than +/- 10°
To resolve: Hold the instrument without any transverse tilt


Error 162: Calibration mistake
To resolve: Make sure the device is placed on an absolutely horizontal and flat surface. Repeat the calibration procedure. If the message still occurs, contact the dealer


Error 204: Calculation error
To resolve: Repeat measurements, make sure to follow the sequence according to the manual


Error 205: S910 memory full
To resolve: Delete memory


Error 220 & 224: Hardware error
To resolve: If the message continuously appears, contact the dealer for service


Error 240 & 245: Data transfer error
To resolve: Re-connect device with computer and repeat procedure


Error 252: Temperature too high
To resolve: Let device cool down


Error 253: Temperature too low
To resolve: Let device warm up


Error 254: Battery voltage too low for measurements
To resolve: Change batteries


Error 255: Received signal too weak, measuring time too long
To resolve: Change target surface (i.e. white paper)


Error 256: Received signal too high
To resolve: Change target surface (i.e. white paper)


Error 257: Too much background light
To resolve: Shadow target area


Error 258: Measuring outside of measuring range
To resolve: Correct range


Error 260: Laser beam interrupt
To resolve: Repeat measurement


Error 284: Laser defect
To resolve: If message continuously appears, contact the dealer for service


Error 288-294: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 300: Smart base not folded out
To resolve: Fold out Smart Base


Error 301: Device was moved, levelling not valid anymore
To resolve: Perform levelling again. Levelling with invalid levelling is possible, but it will affect the accuracy


Error 302: S910 "Point data transmission" is selected, but WLAN is off
To resolve: Switch on WLAN


Error 303 - 306: Error with Leica DST 360 Adapter
To resolve: Repeat procedure and if message still occurs, contact your dealer


Error 340: WLAN: Data transfer error
To resolve: Repeat procedure


Error 341: Authentication error
To resolve: Use correct password


Error >1000: Hardware error
To resolve: If message continuously appears, contact the dealer for service


Error 14041: Smart Base defect
To resolve: If message continuously appears, contact the dealer for service
