Leica Disto S910 Laser Measurer
Leica Disto S910 Video
The Leica DISTO S910 is the first laser distance measurer that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.
SmartBase for the DISTO S910
Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software -- SmartBase enables you to stand back from your target to measure the distances and angles between multiple points.
SmartBase facilitates three new remote measurement functions:
- Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the DISTO S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
- Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
Use a Tripod
For maximum accuracy the SmartBase requires a simple level check. This guarantees the electronic level of the DISTO S910 is within ± 0.1° of true level. For the highest measuring accuracy you will want to use a tripod for the majority of P2P, Smart Angle and Smart Area functions. The S910 includes a metal insert for a ¼” tripod thread, found at the bottom of the SmartBase (and a 5/8” adaptor is available).

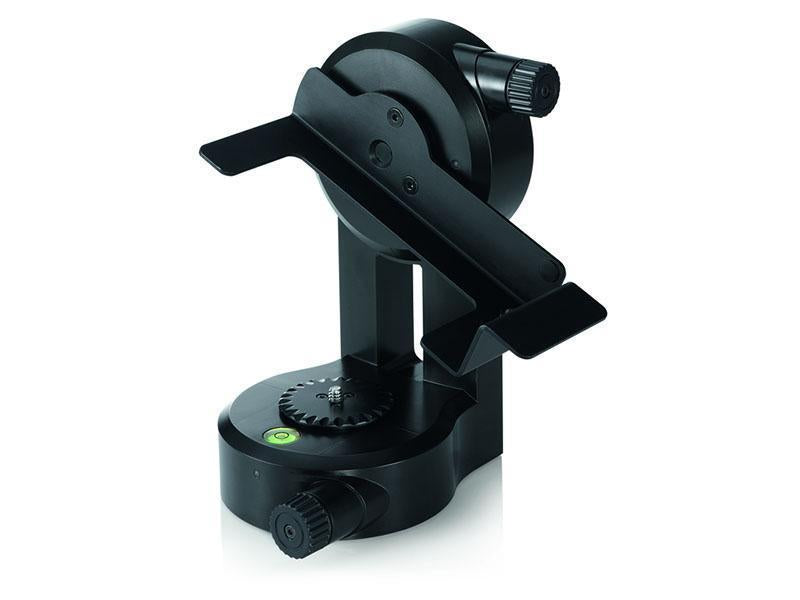

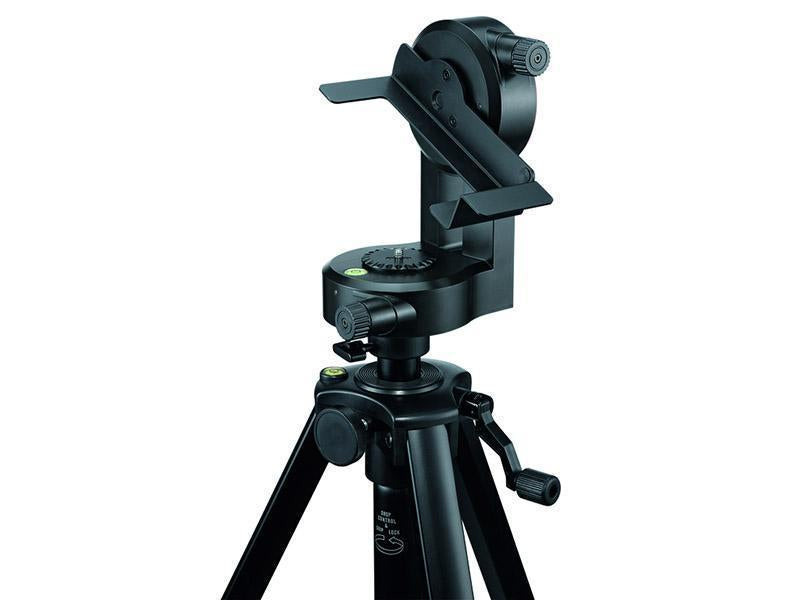

FTA 360-S TRIPOD ADAPTOR
Even with a tripod and outdoor pointfinder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adaptor. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimetres.
A package with a DISTO S910, FTA 360-S and a TRI-70 tripod is available here.
A package with a DISTO S910, FTA 360-S and a TRI-200 tripod is available here.
Capture and Export Measurement Data
The Leica DISTO S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.
Leica DISTO S910 Video
Specifications
ISO 16331-1 certified measuring accuracy (favorable conditions) | 1.0mm |
ISO 16331-1 certified measuring accuracy (unfavorable conditions) | 2.0mm |
ISO 16331-1 certified range (favorable conditions) | 0.05m - 300m |
ISO 16331-1 certified range (unfavorable conditions) | 0.05m - 150m |
Smart Base vertical range | -40° to 80° |
Smart Base vertical sensor tolerance | up to +/- 0.1° |
Smart Base horizontal range | 360° |
Smart Base horizontal tolerance | up to +/- 0.1° |
Tolerance P2P function at distances (combination of sensors and distance measuring) | approx. : +/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m |
Measuring units | 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32 |
X-Range Technology | Yes |
Pointfinder with 4x zoom | Yes |
Overview camera | Yes |
File format | .jpg / .dxf |
Memory | Last 50 displays |
Windows Software | DISTO Transfer with AutoCAD® plugin |
Free App | iOS / Android |
Data interface | Bluetooth® V4.0 Smart / WLAN / USB |
Measurements per set of batteries | ~ 4000 |
Storage Temp. Range |
-25 to 60 °C
|
Operating Temp. Range | -10 to 50 °C |
Charging Temp. Range | -10 to 40 °C |
Batteries | Li-ion rechargeable |
Tripod thread | -20 |
Protection class | IP 54 - splash water/ dust proof |
Dimensions | 61 x 32 x 164 mm |
Weight with batteries | 8.5 oz |
EAN/UPC | 7640110695746, 7640110695753 (North America) |
Article No. | 805080 | 808183 (US & CAN) |
Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Leica Disto S910 Laser Measurer
Leica Disto S910 Video
The Leica DISTO S910 is the first laser distance measurer that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.
SmartBase for the DISTO S910
Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software -- SmartBase enables you to stand back from your target to measure the distances and angles between multiple points.
SmartBase facilitates three new remote measurement functions:
- Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the DISTO S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
- Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
- Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).
Use a Tripod
For maximum accuracy the SmartBase requires a simple level check. This guarantees the electronic level of the DISTO S910 is within ± 0.1° of true level. For the highest measuring accuracy you will want to use a tripod for the majority of P2P, Smart Angle and Smart Area functions. The S910 includes a metal insert for a ¼” tripod thread, found at the bottom of the SmartBase (and a 5/8” adaptor is available).
FTA 360-S TRIPOD ADAPTOR
Even with a tripod and outdoor pointfinder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adaptor. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimetres.
A package with a DISTO S910, FTA 360-S and a TRI-70 tripod is available here.
A package with a DISTO S910, FTA 360-S and a TRI-200 tripod is available here.
Capture and Export Measurement Data
The Leica DISTO S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.
Leica DISTO S910 Video
Specifications
ISO 16331-1 certified measuring accuracy (favorable conditions) | 1.0mm |
ISO 16331-1 certified measuring accuracy (unfavorable conditions) | 2.0mm |
ISO 16331-1 certified range (favorable conditions) | 0.05m - 300m |
ISO 16331-1 certified range (unfavorable conditions) | 0.05m - 150m |
Smart Base vertical range | -40° to 80° |
Smart Base vertical sensor tolerance | up to +/- 0.1° |
Smart Base horizontal range | 360° |
Smart Base horizontal tolerance | up to +/- 0.1° |
Tolerance P2P function at distances (combination of sensors and distance measuring) | approx. : +/- 2 mm / 2 m+/- 5 mm / 5 m +/- 10 mm /10 m |
Measuring units | 0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32 |
X-Range Technology | Yes |
Pointfinder with 4x zoom | Yes |
Overview camera | Yes |
File format | .jpg / .dxf |
Memory | Last 50 displays |
Windows Software | DISTO Transfer with AutoCAD® plugin |
Free App | iOS / Android |
Data interface | Bluetooth® V4.0 Smart / WLAN / USB |
Measurements per set of batteries | ~ 4000 |
Storage Temp. Range |
-25 to 60 °C
|
Operating Temp. Range | -10 to 50 °C |
Charging Temp. Range | -10 to 40 °C |
Batteries | Li-ion rechargeable |
Tripod thread | -20 |
Protection class | IP 54 - splash water/ dust proof |
Dimensions | 61 x 32 x 164 mm |
Weight with batteries | 8.5 oz |
EAN/UPC | 7640110695746, 7640110695753 (North America) |
Article No. | 805080 | 808183 (US & CAN) |
