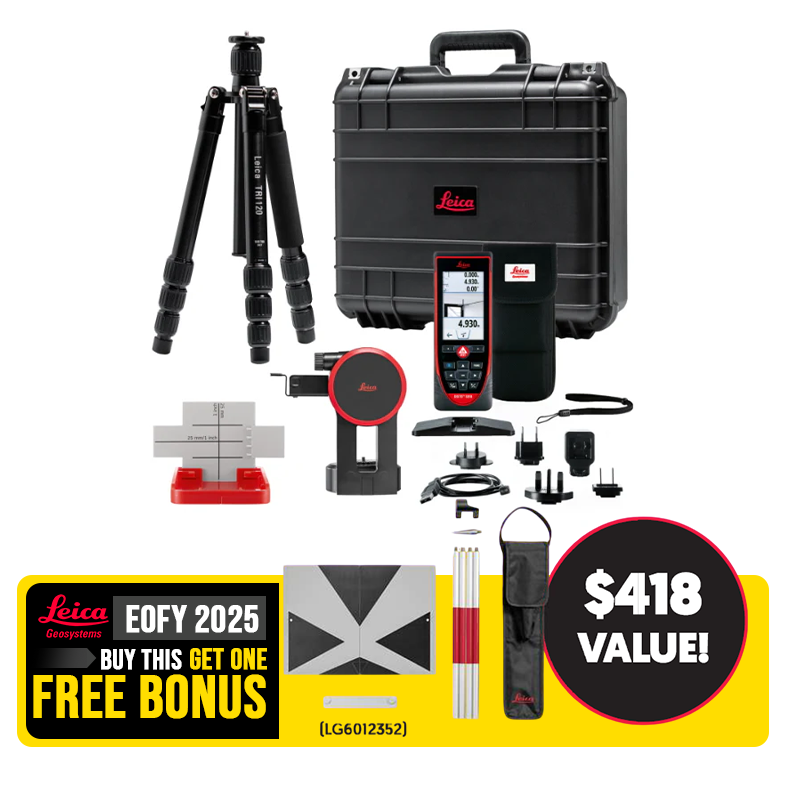

Leica Disto S910 Package includes TR120 tripod + FTA360-S+ Heavy Duty Rugged Case

SKU: LG887900
$1,773.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Hurry, Offer Ends in:

Product Overview

The S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.

Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software --SmartBase enables the S910 to measure the distances and angles between multiple points.

SmartBase facilitates three new remote measurement functions:

  • Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1, then Point 2 and the S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn't matter: Just measure the start and end point and the distance is displayed.
  • Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes.
  • Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first).



In the vast majority of cases you will want a tripod to use these functions. In addition to an S910, the Pro Pack includes a TRI20 Tripod and a FTA 360-s adapter.

Even with a tripod and outdoor point finder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adaptor. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimetres.

The S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi.

The Leica DISTO S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks.

Smart Base -- a biaxial pivot integrated with the circuit board -- is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software --SmartBase enables the S910 to measure the distances and angles between multiple points.

Leica Geosystems DISTO™ S910 Video

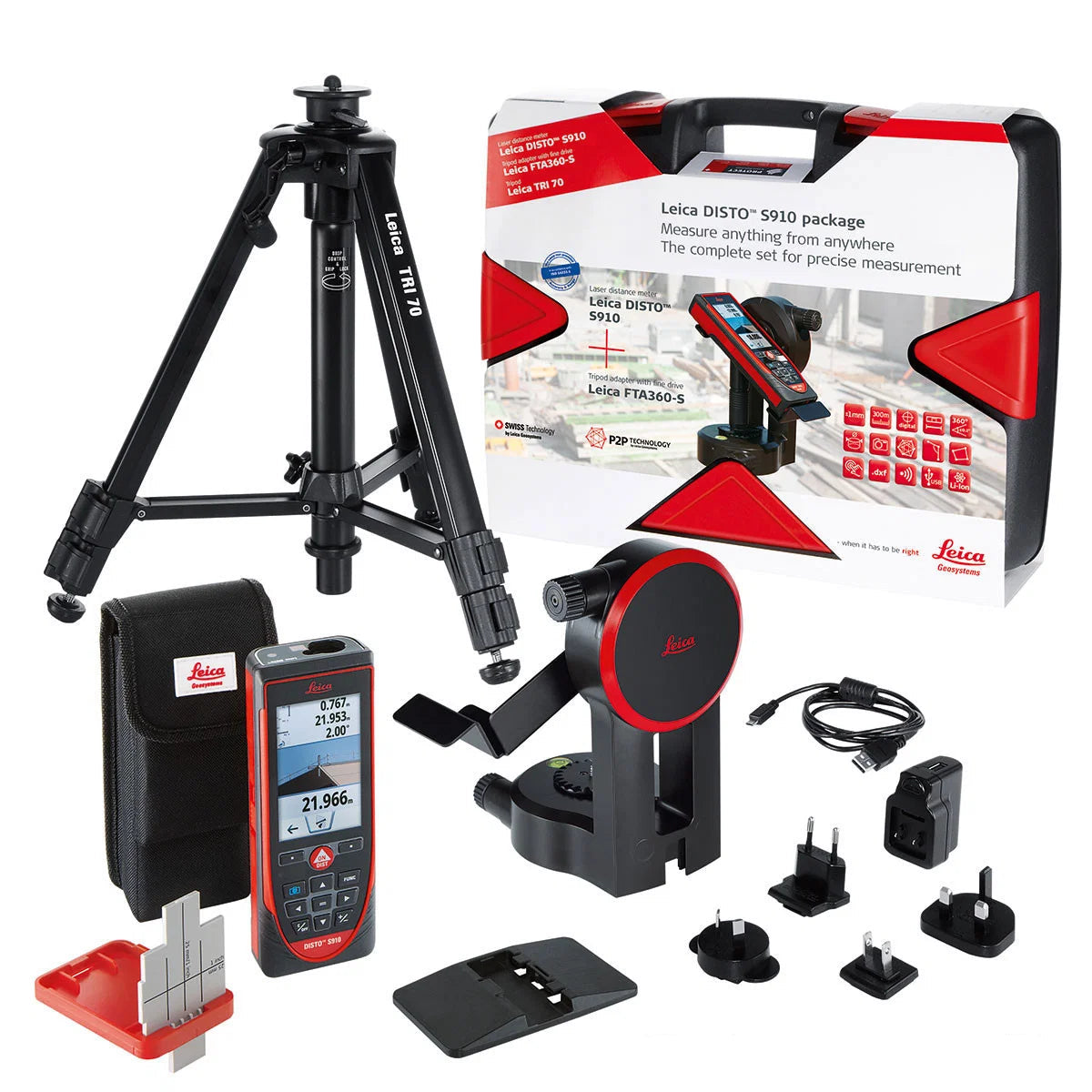

Includes

  • Leica Disto S910 laser distance meter
  • Pouch
  • Adapter for corner measurement
  • set-up plate for Smart Base
  • hand loop
  • USB charger
  • TR120 tripod
  • FTA 360-S adapter
  • Hard carry case
  • GZM 3 target plate
  • Calibration Certificate Silver
  • Quick start user guide



Specifications

  • ISO 16331-1 Certified Measuring Accuracy (favourable conditions): 1.0mm / ±0.04"*
  • ISO 16331-1 Certified Measuring Accuracy (unfavourable conditions): 2.0mm / ± 0.08"**
  • ISO 16331-1 Certified Range (favourable conditions): 0.05m - 300m / 0.16ft - 984ft
  • ISO 16331-1 Certified Range (unfavourable conditions): 0.05m - 150m / 0.16ft - 492ft
  • Smart Base Vertical Range: -40° to 80°
  • Smart Base Vertical Sensor Tolerance: Up to +/- 0.1°
  • Smart Base Horizontal Range: 360°
  • Smart Base Horizontal Tolerance: Up to +/- 0.1°
  • Tolerance P2P Function At Distances (combination of sensors and distance measuring): Approx. +/-2mm, 2m+/- 5mm, 5m +/- 10mm, 10m
  • Measuring Units: 0.000m, 0.0000m, 0.00m, 0.00ft, 0'00" 1/32, 0.00 in, 0 in 1/32
  • X-Range Technology: Yes
  • Pointfinder With 4x Zoom: Yes
  • Overview Camera: Yes
  • File Format: .jpg / .dxf
  • Memory: Last 50 displays
  • Windows Software: DISTO Transfer with AutoCAD plugin
  • Free App: iOS / Android
  • Data Interface: Bluetooth V4.0 Smart/WLAN/USB
  • Measurements Per Set Of Batteries: ~4000
  • Storage Temp. Range: -25 to 60°C OR -13 to 140°F
  • Operating Temp. Range: -10 to 50°C OR 14 to 122°F
  • Charging Temp. Range: -10 to 40°C OR 14 to 104°F
  • Batteries: Li-ion rechargeable
  • Tripod Thread: -20
  • Protection Class: IP54 - Splash water/dust proof
  • Dimensions: 61 x 32 x 164mm
  • Weight with batteries: 290 g
