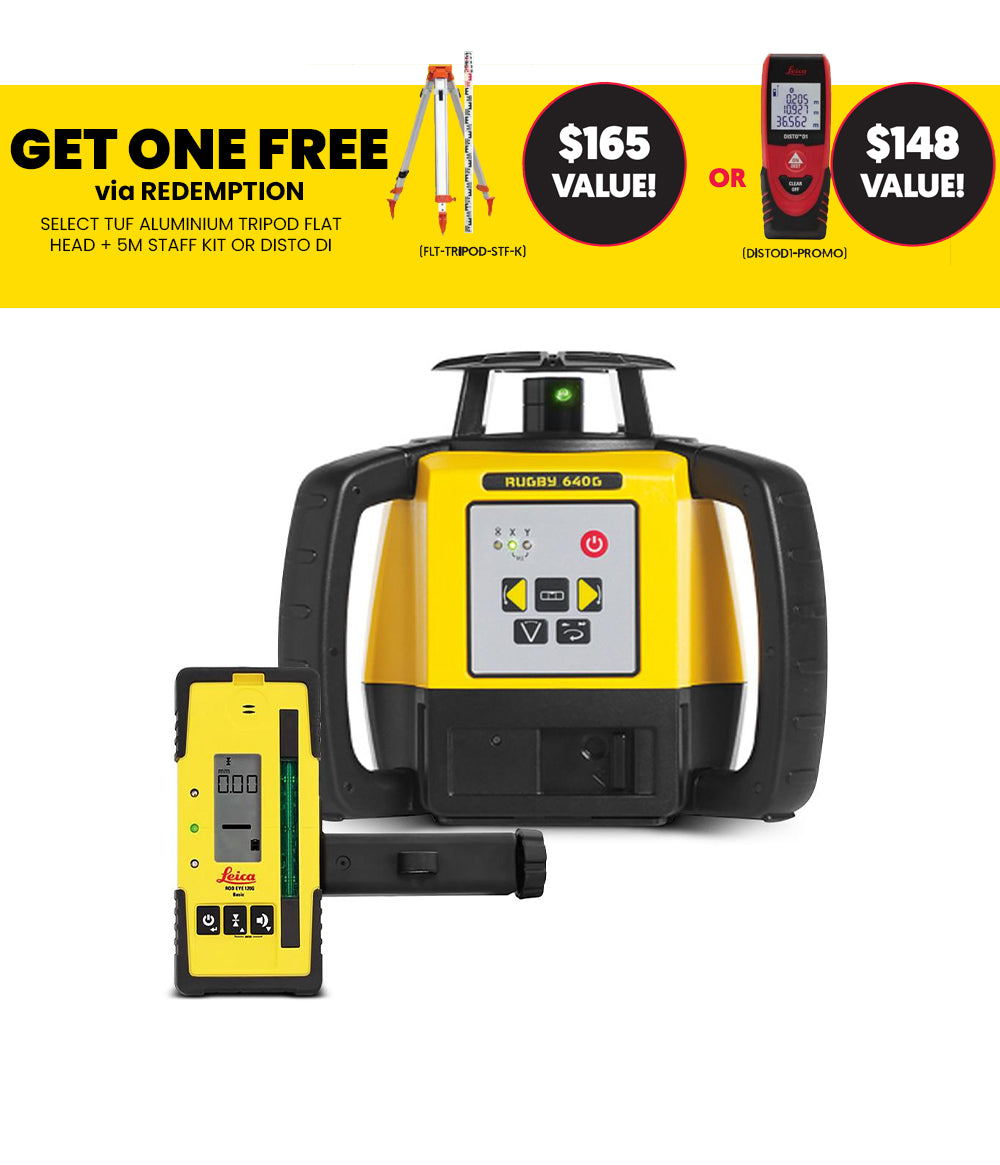

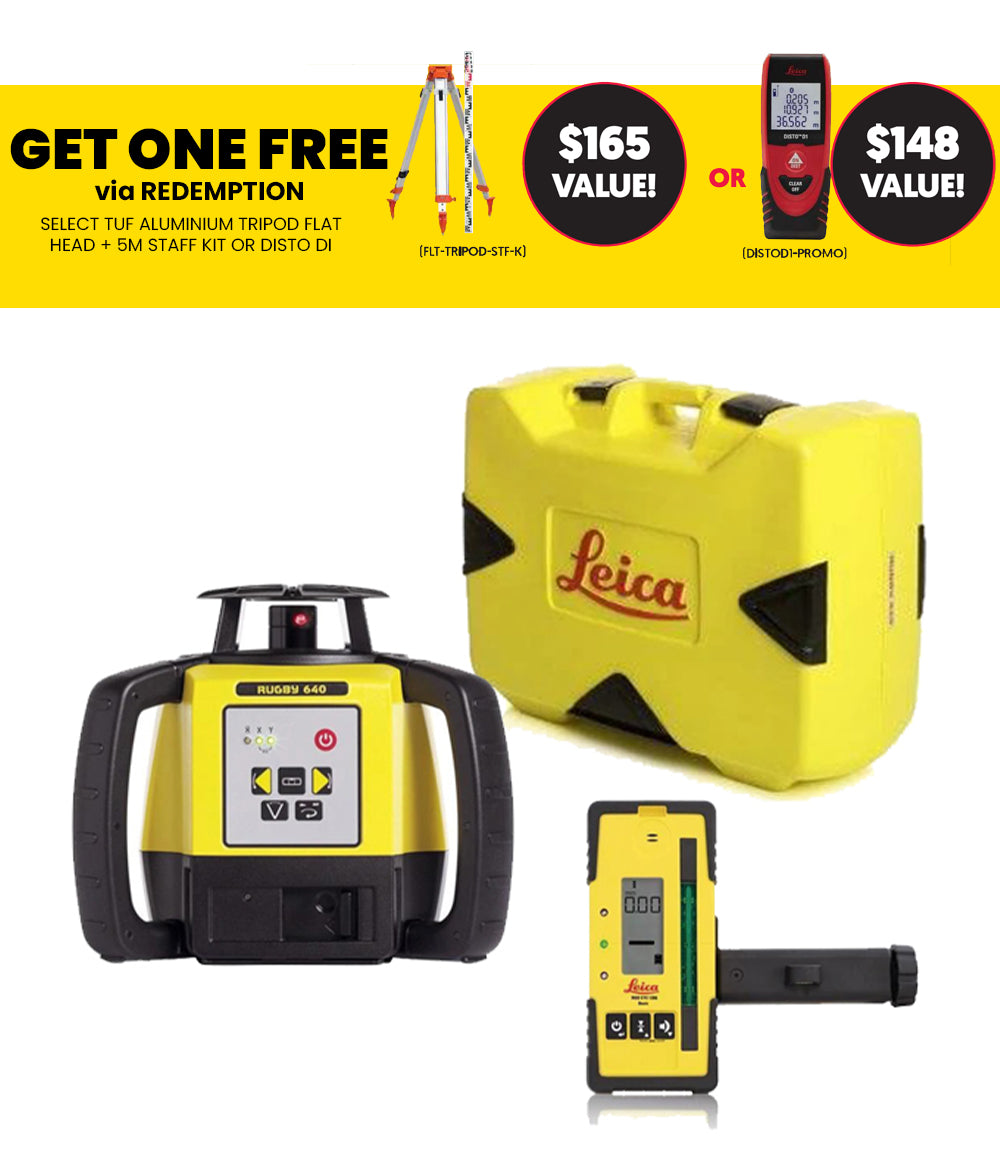

Leica Rugby 640 with Receiver
The Leica Rugby 640 Rotary Laser Level is a multi-purpose self-leveling vertical, horizontal, manual and 90-degree slope in dual axis construction laser level. With a range up to 2,000 feet with the Rod-Eye laser receiver, this is great for both indoor and outdoor applications. Also, the Rugby 640 is self-leveling within ±5 degrees and has an accuracy of ±1/16 inch at 100 feet.
The Leica Rugby 640 has 0, 120, 300, 600 rotations per minute. It also has three scanning angles of 10, 45 and 90 degrees. Featuring LED indicators and a scan 90 function, making layouts is easier by quickly moving the beam to the left or right side. Plus, this rotating laser that has a plumb down needed for automatic and accurate for alignment over a reference point.
Having an IP67 rating, this Leica Rugby 640 is dustproof and water resistant. It has a glass cage, tough housing, and rubber handles for grip to provide ultimate protection. Also, it can operate up to 40 hours with the Li-ion batteries and 60 hours with the alkaline batteries. As an extra feature, it comes with a 5/8-11 tripod thread for a smooth leveling experience.
Features
- Range up to 2,000 feet with laser receiver
- Self-leveling within ±5 degrees
- ±1/16 inch accuracy at 100 feet
- Dual-axis manual slope
- Horizontal and vertical leveling
- Rotation speed: 0, 120, 300, 600 RPM (0, 2, 5, 10 RPS)
- Scanning angle: 10, 45, 90 degrees
- LED indicators
- Scan 90
- Plumb down
- IP67 dustproof and water resistant
- Glass cage and tough housing
- Rubber handles
- Operates up to 60 hours with Alkaline batteries
Specifications
| Laser | |
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 2 |
| Direction | Horizontal/Vertical |
| Visibility | Visible |
| Range | |
| Working Diameter | up to 2,900 ft |
| Detection Window | 2.75" (70 mm) |
| Self Leveling | ±5 degrees (horizontal/vertical) |
| Remote | 650 feet (sold seperately) |
| Detection Accuracies | |
| Fine | ±1.0 mm |
| Medium | ±2.0 mm |
| Coarse | ±3.0 mm |
| Battery/Power | |
| Battery Life with Alkaline Batteries | 60 hours |
| Features | |
| Automatic Shut-Off | Yes |
| Display | LED |
| Drop Damage Protection | Yes |
| Bump Sensor (H.I./Out of Position Alert) | Yes |
| Protection Class | IP67 (dust proof and water-submersible) |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Dual Handles | Yes |
| Adjustable Rotating Speed | 0, 2, 5, 10 rps |
| One-Touch Commands | Yes |
| Plumb Point | Yes |
| General | |
| Weight | 5.6 lbs. (2.56 kg.) |
| Dimensions | 8 3/8 × 9 3/8 × 7 9/16" (212 × 239 × 192 mm) |
| Accuracy | |
| Horizontal | 1/16" at 100 ft (±1.5 mm at 30 m) |
| Vertical | 1/16" at 100 ft (±1.5 mm at 30 m) |
| Temperature | |
| Storage | –4 to +158 °F (–20 to +70 °C) |
| Operating | 14 to +122 °F (–10 to +50 °C) |
| Functions | |
| Automatic Leveling | Yes |
| Scanning Modes | 10, 45, 90 |
| Applications | |
| Checking/Setting Elevations | Yes |
| Transferring Points from Floor to Ceiling | Yes |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Installation/Leveling Ceiling Grids | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Plumb Reference | Yes |
| Checking Elevations of Sub-Base and Sub-Grade | Yes |
| Short-Run Vertical Alignment | Yes |
| Checking Building Square & Area | Yes |
| Locating Finished Floor Levels | Yes |
| Estimating Cut & Fill | Yes |
| Grade | |
| Type | Manual, dual slope |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
