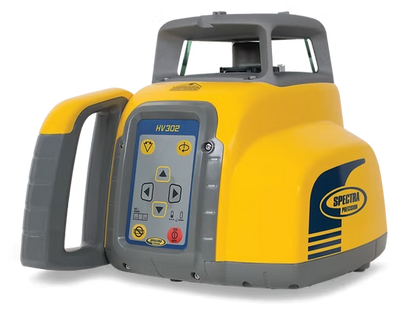

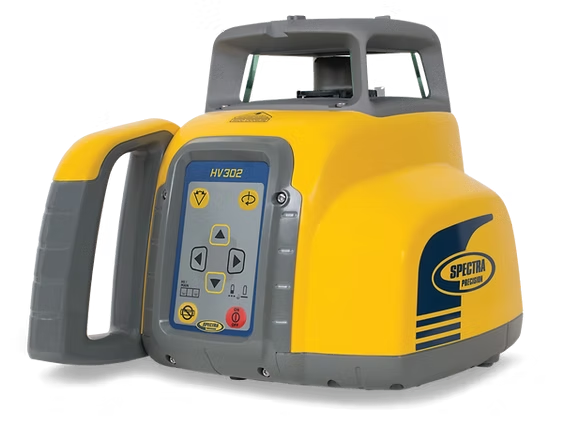

The HV302 is capable of handling a wide variety of horizontal, vertical, and plumb applications in both interior and exterior projects. Its high-visibility beam enables simultaneous rotating and 90 degree plumb references and is easy to see even in brightly lit interiors. Various configurations ensure you have the right tool for the job.
Key features & benefits:
Complete leveling crew in a case - carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
-
Automatic horizontal and vertical self-leveling
-
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
-
Working range of 800 m (2,600 ft) diameter
-
High-visibility beam – easily visible even in brightly lit conditions
-
Split beam – enables plumb point transfer and 90-degree layout
-
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
-
Long range RC402N Radio remote control
-
Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
-
Extremely durable and portable ■■ 5 Year warranty
Specifications
Leveling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter
appr. 800 m (2600 feet)
Rotation
0, 10, 80, 200, 600 rpm
Pre-selected Scan Sizes
5°, 15°, 45°, 90°, 180° and 0
Laser Type
red diode laser 600-680 nm
Laser Class
Class 3A/3R, max. 5 mW
Class 2 (Europe)
Self-leveling Range
± 5° (±9%)
Leveling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10.000 mAh NiMH battery pack
Battery Life
45 hours NiMH; 60 hours alkaline
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes - IP66
Weight
3.1 kg (6.8 lbs)
Low Voltage Indication
LED battery indicator
Low Voltage Disconnection
unit shuts off
Warranty
5 Years
Whats in the box
- Hv302 Laser

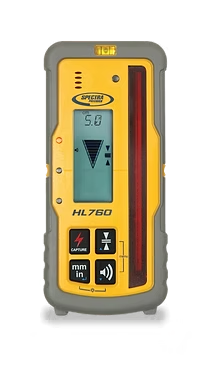

- HL760 Receiver
- Clamp
- RC402N
- Nimh
- Universal Charger
