Tramex Flooring Master Kit - FMK

SKU: FMK
$3,135.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

ULTIMATE MOISTURE METER KIT FOR MEASURING MOISTURE CONTENT, RELATIVE HUMIDITY AND DEW-POINT OF CONCRETE FLOORS AND SLABS FOR FLOORING INSTALLATION AND INSPECTION

WITH ACCOMPANYING BLUETOOTH APP

The Tramex FMK is the ultimate kit for instant, non-destructive quantitative moisture testing of concrete and wood flooring, as well as RH and dew point testing of concrete and ambient conditions, both pre- & post-application of floor covering materials. Featuring the Tramex CMEX5 digital concrete moisture meter for non-destructive quantitative moisture testing of concrete using Gravimetric testing as a baseline, comparative testing per ASTM F2659, and ambient conditions. The CMEX5 incorporates bayonet plug-in heavy-duty pin-probes measuring moisture content in wood or WME in other building materials. The CMEX5 also incorporates reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete. Tramex Hygro-i2 RH probes can be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in situ and in the environment. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Tramex ME5 allows for moisture testing of wood and includes a shallow-depth feature to eliminate the effect of the substrate when needed. The Tramex Flooring Master Kit comes with an extension handle in a heavy-duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

Kit Contents

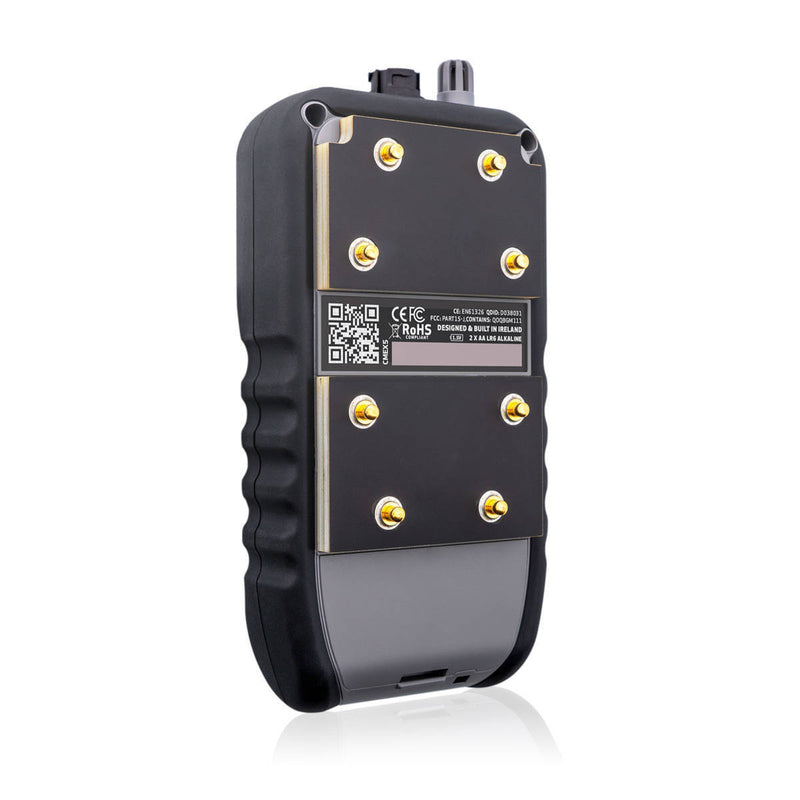

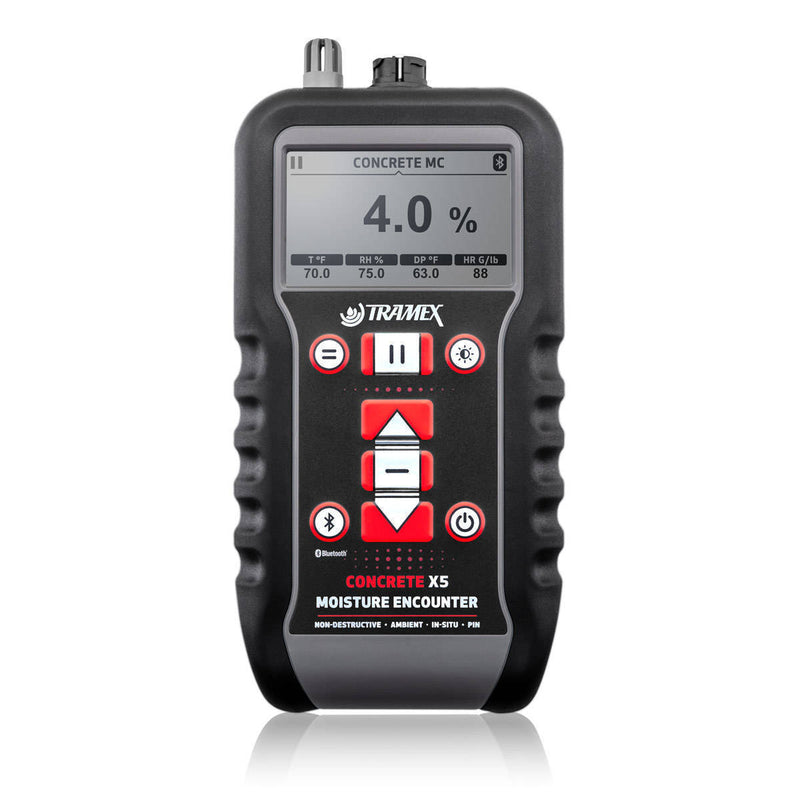

1 x Concrete Moisture Encounter X5 - CMEX5.
1 x Moisture Encounter 5 - ME5.
1 x Feedback Datalogger - DL-RHTX.
3 x Hygro-i2® Relative Humidity probes - HIPP3
1 x Hygro-i2® Electronic Interface Cable - RHIE2B
1 x Heavy-duty Pin-type Wood Probe - HH14TP30B
1 x Hammer-action pin-type electrode - HA21SP52B
1 x Infrared Thermometer - IRT2
1 x Calibration Check Salt - SAL75
1 x Extension Handle - E5-HBS
Hole liners - RHHL
Free App available for Android and iOS (phone not included).

CONCRETE MOISTURE ENCOUNTER X5 - CMEX5 - MEASURING RANGE:
Depth of penetration in concrete: approx. 20mm
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity (including with Hygro-i2 ® probe): 0 → 99%
Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C/77°F

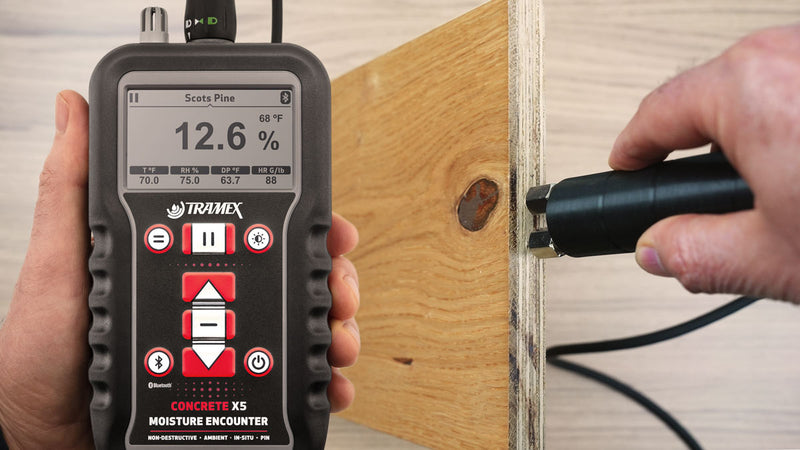

Moisture content for wood with wood pin probes: 5 → 30 %

MOISTURE ENCOUNTER 5 - ME5 - MEASURING RANGE:
Wood Moisture Content: 5 to 30%
Reference scale for building materials: 0 to 100
Depth of penetration:
Shallow signal: up to 10mm
Deep signal: up to 30mm

FEEDBACK DATALOGGER DL-RHTX MEASURING RANGE:
Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate: Logger interval adjustable between 5 minutes and 1 hour
Transmission Range: Up to 50m line-of-sight
Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising

RELATIVE HUMIDITY SENSOR SPECIFICATIONS:
Range: 0 to 100% RH
Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year

TEMPERATURE SENSOR SPECIFICATIONS:
Range: -40ºC to 125ºC
Accuracy: ±0.1 °C Range 20°C to 60°C
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.03ºC per year

INFRARED THERMOMETER IRT2
Temperature range: -50 to 650 ºC
Distance to Spot ratio: D:S = 12:1
Display resolution: 0.1 ºF(0.1ºC) <1000 1ºC >1000
Accuracy for targets: Assumes ambient operating temperature of 73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC) ±4.5ºF(2.5ºC) 68ºF ~572ºF (20ºC ~300ºC) ±1.0% ±1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
Repeatability: -58~68ºF (-50~20ºC) : ±2.3ºF(1.3ºC ) 68~1202ºF (20~650ºC): ±0.5% or ±0.9ºF (0.5ºC)
Response time: 150ms
Spectral response: 8~14um
Emissivity: Digitally adjustable from 0.10 to 1.0
Over range indication: LCD will show "----"
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.: 32 to 122ºF(0 to 50ºC)
Storage temp.: 14 to 140ºF (–10 to 60ºC)
Relative humidity: 10%~90%RH operating, <80%RH storage
Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety: "CE" Comply with EMC

SPECIFICATIONS OF KIT:
Size: 52cm x 48cm x 15cm
Weight: 6kg
Power: 5 x AA batteries, 1 x 9 volt PP3 battery

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

ULTIMATE MOISTURE METER KIT FOR MEASURING MOISTURE CONTENT, RELATIVE HUMIDITY AND DEW-POINT OF CONCRETE FLOORS AND SLABS FOR FLOORING INSTALLATION AND INSPECTION

WITH ACCOMPANYING BLUETOOTH APP

The Tramex FMK is the ultimate kit for instant, non-destructive quantitative moisture testing of concrete and wood flooring, as well as RH and dew point testing of concrete and ambient conditions, both pre- & post-application of floor covering materials. Featuring the Tramex CMEX5 digital concrete moisture meter for non-destructive quantitative moisture testing of concrete using Gravimetric testing as a baseline, comparative testing per ASTM F2659, and ambient conditions. The CMEX5 incorporates bayonet plug-in heavy-duty pin-probes measuring moisture content in wood or WME in other building materials. The CMEX5 also incorporates reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete. Tramex Hygro-i2 RH probes can be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in situ and in the environment. An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer. The Tramex ME5 allows for moisture testing of wood and includes a shallow-depth feature to eliminate the effect of the substrate when needed. The Tramex Flooring Master Kit comes with an extension handle in a heavy-duty Tramex travel case. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

Kit Contents
1 x Concrete Moisture Encounter X5 - CMEX5.
1 x Moisture Encounter 5 - ME5.
1 x Feedback Datalogger - DL-RHTX.
3 x Hygro-i2® Relative Humidity probes - HIPP3
1 x Hygro-i2® Electronic Interface Cable - RHIE2B
1 x Heavy-duty Pin-type Wood Probe - HH14TP30B
1 x Hammer-action pin-type electrode - HA21SP52B
1 x Infrared Thermometer - IRT2
1 x Calibration Check Salt - SAL75
1 x Extension Handle - E5-HBS
Hole liners - RHHL
Free App available for Android and iOS (phone not included).

CONCRETE MOISTURE ENCOUNTER X5 - CMEX5 - MEASURING RANGE:
Depth of penetration in concrete: approx. 20mm
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity (including with Hygro-i2 ® probe): 0 → 99%
Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C/77°F
Moisture content for wood with wood pin probes: 5 → 30 %

MOISTURE ENCOUNTER 5 - ME5 - MEASURING RANGE:
Wood Moisture Content: 5 to 30%
Reference scale for building materials: 0 to 100
Depth of penetration:
Shallow signal: up to 10mm
Deep signal: up to 30mm

FEEDBACK DATALOGGER DL-RHTX MEASURING RANGE:
Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate: Logger interval adjustable between 5 minutes and 1 hour
Transmission Range: Up to 50m line-of-sight
Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising

RELATIVE HUMIDITY SENSOR SPECIFICATIONS:
Range: 0 to 100% RH
Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year

TEMPERATURE SENSOR SPECIFICATIONS:
Range: -40ºC to 125ºC
Accuracy: ±0.1 °C Range 20°C to 60°C
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.03ºC per year

INFRARED THERMOMETER IRT2
Temperature range: -50 to 650 ºC
Distance to Spot ratio: D:S = 12:1
Display resolution: 0.1 ºF(0.1ºC) <1000 1ºC >1000
Accuracy for targets: Assumes ambient operating temperature of 73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC) ±4.5ºF(2.5ºC) 68ºF ~572ºF (20ºC ~300ºC) ±1.0% ±1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
Repeatability: -58~68ºF (-50~20ºC) : ±2.3ºF(1.3ºC ) 68~1202ºF (20~650ºC): ±0.5% or ±0.9ºF (0.5ºC)
Response time: 150ms
Spectral response: 8~14um
Emissivity: Digitally adjustable from 0.10 to 1.0
Over range indication: LCD will show "----"
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.: 32 to 122ºF(0 to 50ºC)
Storage temp.: 14 to 140ºF (–10 to 60ºC)
Relative humidity: 10%~90%RH operating, <80%RH storage
Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety: "CE" Comply with EMC

SPECIFICATIONS OF KIT:
Size: 52cm x 48cm x 15cm
Weight: 6kg
Power: 5 x AA batteries, 1 x 9 volt PP3 battery
