GEO-Laser UL-89L Red Beam Fully Automatic Rotating Universal Laser

SKU: 0001.295.1
$6,850.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

GEO-Laser UL-89L Red Beam Fully Automatic Rotating Universal Laser

PRODUCT OVERVIEW

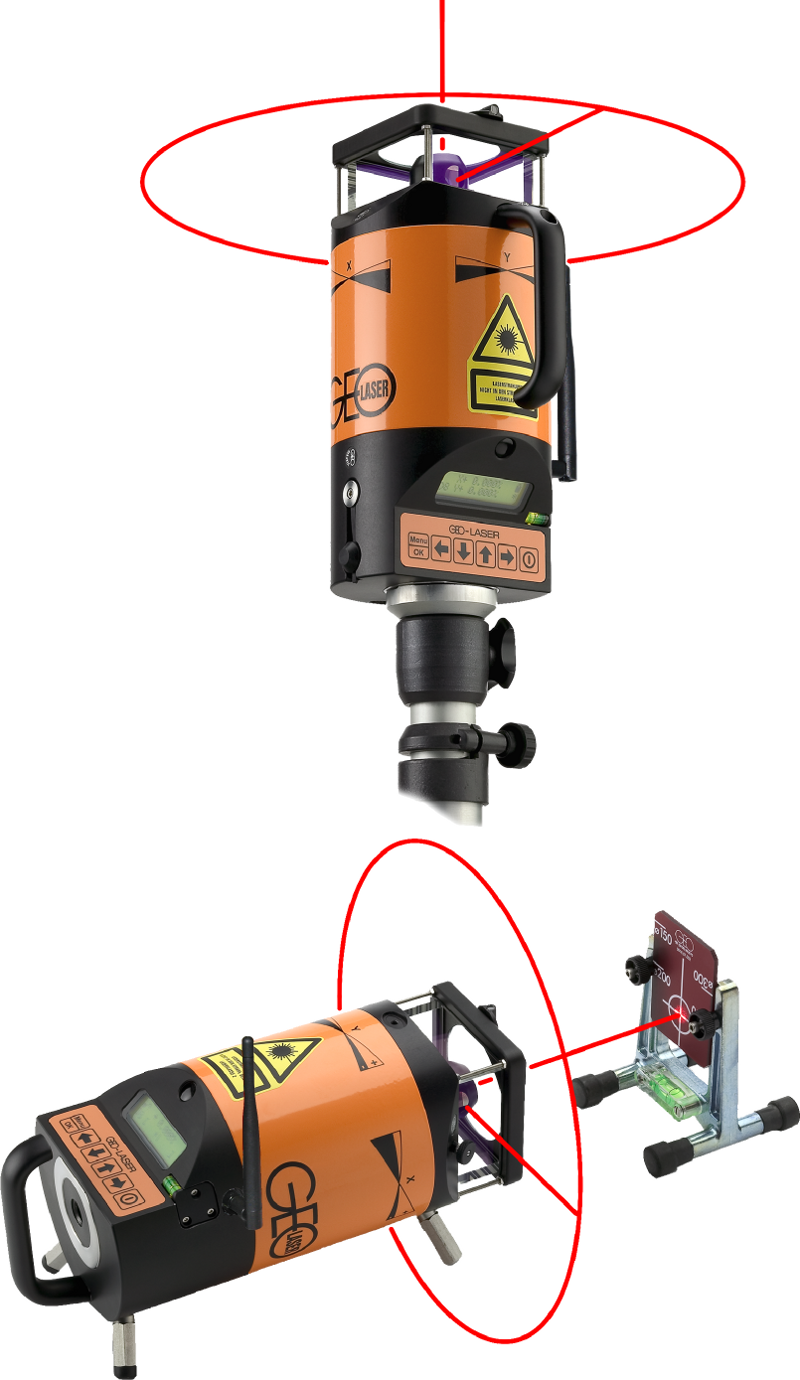

The UL-89L is a multifunction laser with inclination setting for horizontal and vertical use capable of electronic self-levelling over three axes. It emits a laser beam, which turns into a light plane as it rotates. Another laser beam is available exactly square to it.



FEATURES

  • Fully automatic
    Automatic levelling and cut-out in case of low battery or jerky movements.

  • Robust metal housing
    Plastic-coated, swept and filled with nitrogen, 100 % watertight.

  • Automatic fixing of the laser light plane

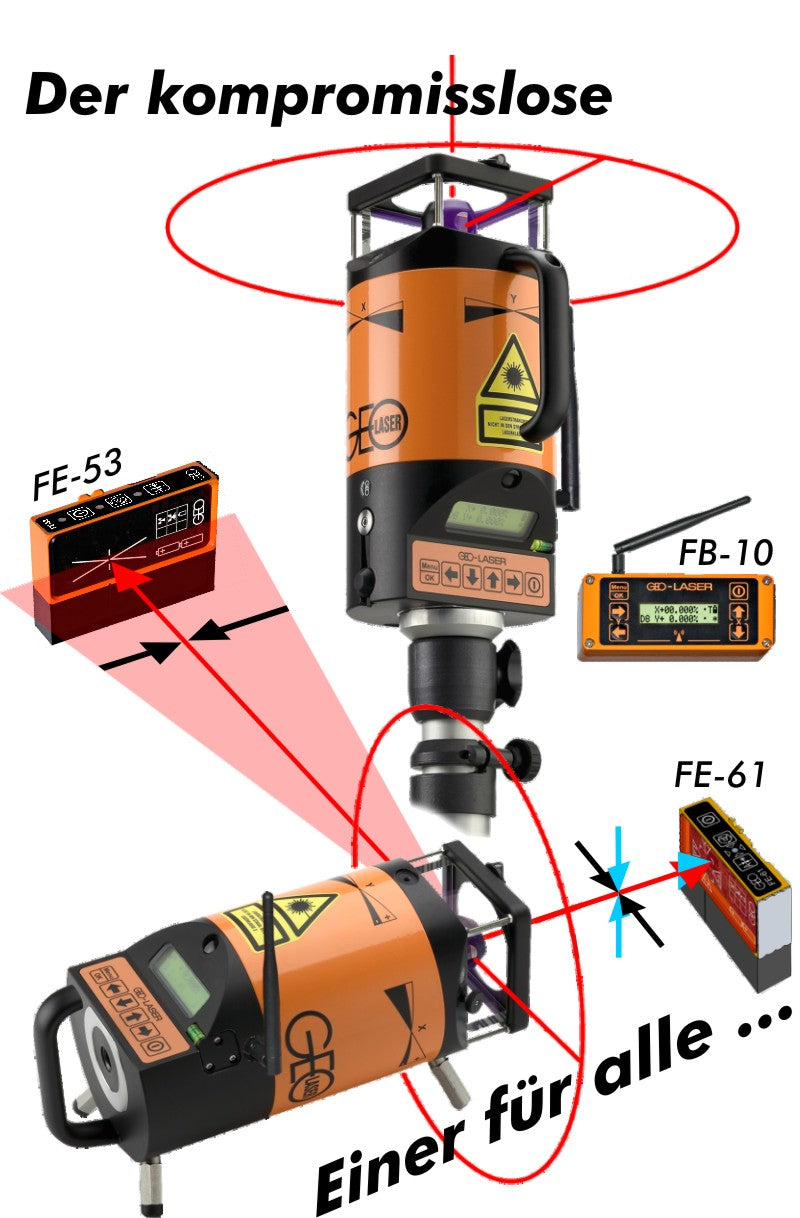

    Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the centre and fixed there. Accuracy: to ± 1 mm/100 m.

  • Inclination measurement parallel to ground
    Even if the inclination is not known, it simply can be adapted to the ground in the Y-axis with the FE-53.

  • Automatic fixing of the plumb beam
    Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the centre and fixed there. Accuracy: to ± 1 mm/100 m.

  • Increased safety
    Control lamp with blinking warning system for levelling, operating status and undervoltage. Automatic laser cut-out in case of jerky movement bumps Inclination, direction and rotational speed setting protected against change. To protect against theft, the name of the owner can be saved in the device.

  • Laser beam
    Diode laser with visible beam, high life expectancy and low power consumption.

  • Manual rotor adjustment
    Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head.

  • Lithium ion rechargeable battery
    Operation time to 27 hours with one charge.

  • Wireless control FB-10 (optional)
    Complete laser operation up to a distance of 250 m.

Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

SPECIFICATIONS

Laser class 3R, < 5 mW
Laser Diode visible red 635 nm
Laser range to 250 m, Ø 500 m
Inclination range X-axis - 5 % to + 20 %, hz. mounting by tilting forward, X-axis - 10 % to + 20 %
Inclination/Direction setting range Y-axis - 5 % to + 5 %
Inclination range with rotation of device X-axis ± 20 % / Y-axis ± 5 %
Self-levelling range over the complete inclination range
Reading accuracy 0,001 %
Permissible deviation ± 5 mm/100 m
Operating time up to 27 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range - 10° C to + 50° C
Dimensions Ø 130 mm, length 295 mm
Weight 3,6 kg
Guarantee 24 month
Rotor speed from 200 - 1000 U/Min.
Locking automatic laser light plane up to 200m with receiver FE-53
Locking automatic plumb beam up to 100m with receiver FE-61




Download Brochure

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

GEO-Laser UL-89L Red Beam Fully Automatic Rotating Universal Laser

PRODUCT OVERVIEW

The UL-89L is a multifunction laser with inclination setting for horizontal and vertical use capable of electronic self-levelling over three axes. It emits a laser beam, which turns into a light plane as it rotates. Another laser beam is available exactly square to it.



FEATURES

  • Fully automatic
    Automatic levelling and cut-out in case of low battery or jerky movements.

  • Robust metal housing
    Plastic-coated, swept and filled with nitrogen, 100 % watertight.

  • Automatic fixing of the laser light plane
    Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the centre and fixed there. Accuracy: to ± 1 mm/100 m.

  • Inclination measurement parallel to ground
    Even if the inclination is not known, it simply can be adapted to the ground in the Y-axis with the FE-53.

  • Automatic fixing of the plumb beam
    Laser and receiver correspond via radio circuit. By pressing the corresponding button at laser or at receiver the laser starts to search for the receiver. As soon as the rotating laser beam hits the receiver, it is directed to the centre and fixed there. Accuracy: to ± 1 mm/100 m.

  • Increased safety
    Control lamp with blinking warning system for levelling, operating status and undervoltage. Automatic laser cut-out in case of jerky movement bumps Inclination, direction and rotational speed setting protected against change. To protect against theft, the name of the owner can be saved in the device.

  • Laser beam
    Diode laser with visible beam, high life expectancy and low power consumption.

  • Manual rotor adjustment
    Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head.

  • Lithium ion rechargeable battery
    Operation time to 27 hours with one charge.

  • Wireless control FB-10 (optional)
    Complete laser operation up to a distance of 250 m.

Quality Guarantee

Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.

SPECIFICATIONS

Laser class 3R, < 5 mW
Laser Diode visible red 635 nm
Laser range to 250 m, Ø 500 m
Inclination range X-axis - 5 % to + 20 %, hz. mounting by tilting forward, X-axis - 10 % to + 20 %
Inclination/Direction setting range Y-axis - 5 % to + 5 %
Inclination range with rotation of device X-axis ± 20 % / Y-axis ± 5 %
Self-levelling range over the complete inclination range
Reading accuracy 0,001 %
Permissible deviation ± 5 mm/100 m
Operating time up to 27 hours
External power supply 11 V DC to 14 V DC with cable 0117.02
Undervoltage cut-out yes
Waterproof to 3.5 m
Temperature range - 10° C to + 50° C
Dimensions Ø 130 mm, length 295 mm
Weight 3,6 kg
Guarantee 24 month
Rotor speed from 200 - 1000 U/Min.
Locking automatic laser light plane up to 200m with receiver FE-53
Locking automatic plumb beam up to 100m with receiver FE-61
