Spectra Precision RD20 Wireless Remote Display Machine Control for Laser Levels

SKU: RD20
$520.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

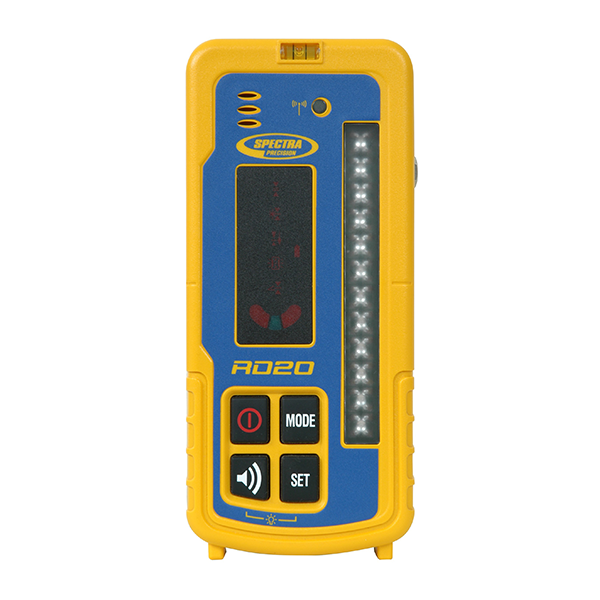

Spectra Precision RD20 Wireless Remote Display Machine Control for Laser Levels

Product overview

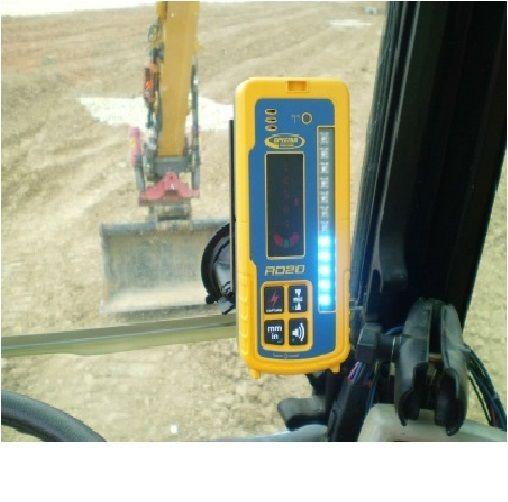

The Spectra Precision® RD20 Wireless Remote Display is designed to be used with the LR30W, LR50W, and LR60W display receivers. The RD20 mounts in the cab and gives the operator grade information in a convenient location. The operator is free to focus on the work at hand.

The RD20 wireless in-cab remote display can quickly and easily be positioned in the cab, without cables, to improve the visibility of the receiver grade information. Additionally, most receiver functions can now be controlled in the cab with the remote.



Features

  • Large bright, red, green and blue elevations LEDs; different colors for High, On-Grade, and Low
  • Provides in-cab display of implement elevation, plumb, and tilt
  • Allows in-cab receiver settings; On-grade and blade tilt offset, accuracy, excavator mode, LED brightness
  • Dual power: internal battery or machine
  • Built-in speaker provides distinct audible tones for High, On- grade and Low
  • State of the art digital radio prevents interference even when multiple machines working in the same area
  • Multiple mounting systems include bolt-on, adhesive, swivel and suction cup.



    Specifications

    Compatible Receivers: LR30W, LR50W, LR60W
    Radio Full 2-way communication, operation and security lock with a paired device
    Radio Working Radius: 30m (100 ft) typical, depending on conditions and orientation of a paired device
    Power Options Internal AA batteries (2) 10-30Vdc with external power Cable Automatic switchover from internal to external power
    Battery Life (internal): 20 hours typical
    Beeper Volumes: Loud = 105 dBA Medium = 95 dBA Low = 75 dBA
    LED Grade Indicators: Green on-grade, red high, blue low w/ 3 brightness settings
    Automatic Shut Off: 30 minutes if no beam strike or loss of radio link with the receiver
    Environmental: Waterproof, dustproof to IP67
    Weight (without Mount): 323g (11.4 oz.)
    Dimensions (without Mount): 168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”)
    Operating Temperature: -20°C...+60°C (-4°F... +140°F)
    Storage Temperature:  -30°C...+70°C (-22°F...+158°F)

    Download Brochure

    Shipping This Item Ships from Fremantle, Perth, Western Australia
    Please allow 2 - 10 days for your order to arrive.

    Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

    Returns are easy.

    simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Description

    Spectra Precision RD20 Wireless Remote Display Machine Control for Laser Levels

    Product overview

    The Spectra Precision® RD20 Wireless Remote Display is designed to be used with the LR30W, LR50W, and LR60W display receivers. The RD20 mounts in the cab and gives the operator grade information in a convenient location. The operator is free to focus on the work at hand.

    The RD20 wireless in-cab remote display can quickly and easily be positioned in the cab, without cables, to improve the visibility of the receiver grade information. Additionally, most receiver functions can now be controlled in the cab with the remote.



    Features

    • Large bright, red, green and blue elevations LEDs; different colors for High, On-Grade, and Low
    • Provides in-cab display of implement elevation, plumb, and tilt
    • Allows in-cab receiver settings; On-grade and blade tilt offset, accuracy, excavator mode, LED brightness
    • Dual power: internal battery or machine
    • Built-in speaker provides distinct audible tones for High, On- grade and Low
    • State of the art digital radio prevents interference even when multiple machines working in the same area
    • Multiple mounting systems include bolt-on, adhesive, swivel and suction cup.



      Specifications

      Compatible Receivers: LR30W, LR50W, LR60W
      Radio Full 2-way communication, operation and security lock with a paired device
      Radio Working Radius: 30m (100 ft) typical, depending on conditions and orientation of a paired device
      Power Options Internal AA batteries (2) 10-30Vdc with external power Cable Automatic switchover from internal to external power
      Battery Life (internal): 20 hours typical
      Beeper Volumes: Loud = 105 dBA Medium = 95 dBA Low = 75 dBA
      LED Grade Indicators: Green on-grade, red high, blue low w/ 3 brightness settings
      Automatic Shut Off: 30 minutes if no beam strike or loss of radio link with the receiver
      Environmental: Waterproof, dustproof to IP67
      Weight (without Mount): 323g (11.4 oz.)
      Dimensions (without Mount): 168.0 x 76.0 x 36.0 mm (6.6” x 3.0” x 1.4”)
      Operating Temperature: -20°C...+60°C (-4°F... +140°F)
      Storage Temperature:  -30°C...+70°C (-22°F...+158°F)

      Download Brochure
