Leica Rugby 600 series rotating laser level
| ITEM CODE | DESCRIPTION | ACCESSORIES (Optional) |
|
LG6011150 |
Rugby 610 with RodEye 120 Receiver - alkaline Includes: carry case, Rod-eye Basic and bracket, alkaline batteries, instructions. |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6011150KIT |
Rugby 610 with RodEye 120 Receiver - alkaline KIT Includes: LG6011150, Al tripod & 3m staff |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6008614 |
Leica Rugby 610 Laser Level with Rod-Eye 140 Classic - Alkaline | A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6008616 |
Rugby 610 with RodEye 160 Receiver - alkaline Includes: carry case, Rod-eye 160 and bracket, alkaline batteries, instructions. |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6008616KIT |
Rugby 610 with RodEye 160 Receiver - Alkaline KIT Includes: LG6008616, Al tripod & 3m staff |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6011150R |
Rugby 610+RodEye 120 Rechargeable (Both Li-ion and Alkaline option) Includes: Rugby LG6011150 (Rugby 620+RE120 Alkaline), LG790415(A600 battery) & LG790417(A100 Charger) |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
|
LG6008616R |
Rugby 610+RodEye 160 rechargeable (Li-ion and Alkaline), Includes: Rugby LG6008616 (Rugby 620+RE160 Alkaline), LG790415(A600 battery) & LG790417(A100 Charger) |
A240 Manual Slope Adaptor - used with the Rugby 610 and 810 |
Receiver Options:
- 610 with RodEye 120 Receiver - alkaline Only (LG6011150)
- 610 with RodEye 120 Receiver - alkaline KIT (Includes LG6011150, Al tripod & 3m staff) (LG6011150KIT)
- 610 with Rod-Eye 140 Classic - Alkaline Only (LG6008614)
- 610 with RodEye 160 Receiver - alkaline Only (LG6008616)
- 610 with RodEye 160 Receiver - Alkaline KIT (Includes LG6008616, Al tripod & 3m staff) (LG6008616KIT)
Product Overview

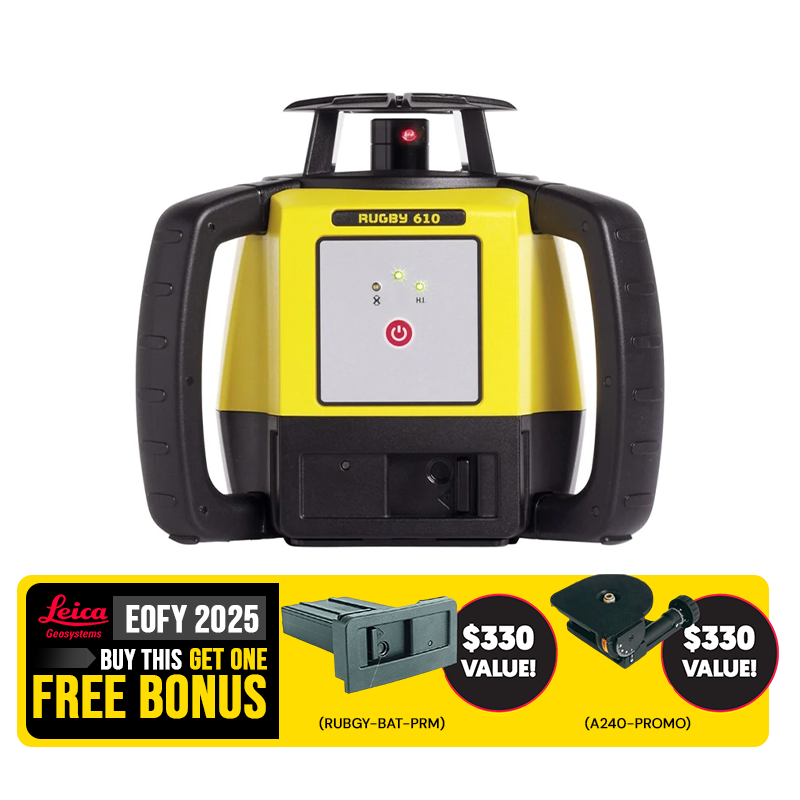

Ideal for all general construction applications, the Leica Rugby 610 Rotary Laser Level is an easy-to-use laser that is self-leveling within ±5 degrees in a horizontal fashion. It features a range up to 2,000 feet with the use of a laser receiver and provides an accuracy of ±3/32 inch at 100 feet. Featuring a one-button operation, it is perfect for site preparation, grade checking, formwork verticality, concrete pouring, formwork leveling, and other similar jobs.
The Rugby 610 features a rotation speed of 600 rotations per minute. Also, it comes with a clear LED indicator for a clear battery and function display. This Leica rotating laser uses the Class 2, 635-nanometer, visible red laser.
Having an IP67 rating, the Leica Rugby 610 is dustproof and water resistant. Made from a co-molded rubber and high-impact plastic, it can withstand the harshest weather conditions. Also, it includes robust grab handles for easy grip. The Rugby 610 can run up to 40 hours with Li-ion batteries and up to 60 hours with Alkaline batteries. As an additional feature, it comes with a 5/8-11 thread for easy attachment on compatible tripods.
Leica Geosystems Video
Features
- Up to 2,000 feet range with laser receiver
- Horizontal self-leveling within ±5 degrees
- ±3/32 inch accuracy at 100 feet
- One-button operation
- Rotation speed: 600 RPM (10 RPS)
- LED indicator
- Class 2 635-nm visible red laser
- Robust grab handles
- IP67 dust and water resistant
- Up to 60-hour battery life
- 5/8-11 tripod thread
Specifications
| Laser | |
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 2 |
| Direction | Horizontal |
| Visibility | Visible |
| Range | |
| Working Diameter | up to 2,900 ft |
| Detection Window | 2.75" (70 mm) |
| Self Leveling | ±5 degrees (horizontal) |
| Detection Accuracies | |
| Fine | ±1.0 mm |
| Medium | ±2.0 mm |
| Coarse | ±3.0 mm |
| Battery/Power | |
| Battery Life with Alkaline Batteries | Up to 60 hours |
| Features | |
| Automatic Shut-Off | Yes |
| Display | LED |
| Drop Damage Protection | Yes |
| Bump Sensor (H.I./Out of Position Alert) | Yes |
| Protection Class | IP67 (dust proof and water-submersible) |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Dual Handles | Yes |
| One-Touch Commands | Yes |
| General | |
| Weight | 5.2 lbs. (2.38 kg.) |
| Dimensions | 8 3/8 × 9 3/8 × 7 9/16" (212 × 239 × 192 mm) |
| Extra Technology | |
| Detector/Receiver | Rod Eye Basic/Rod Eye 140 |
| Accuracy | |
| Horizontal | ±3/32" at 100 ft (2.2 mm at 30 m) |
| Temperature | |
| Storage | –4 to +158 °F (–20 to +70 °C) |
| Operating | 14 to +122 °F (–10 to +50 °C) |
| Functions | |
| Automatic Leveling | Yes |
| Applications | |
| Checking/Setting Elevations | Yes |
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Squaring and Layout of Partitions, Walls & Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Checking Building Square & Area | Yes |
| Estimating Cut & Fill | Yes |
| Locating Finished Floor Levels | Yes |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
